When it is required to tilt the complete pole columns any direction for proper clearances, alignment
etc. follow the following steps.
l
Just Loosen the check nuts,
l
T
ilt the Pole in the direction needed by rotating these nuts either in clockwise or anti-clockwise
direction.
l
After
Alignment tighten these nuts.
l
During this alignment ensure that excessive stress is not imposed on the castings.
90/1
13

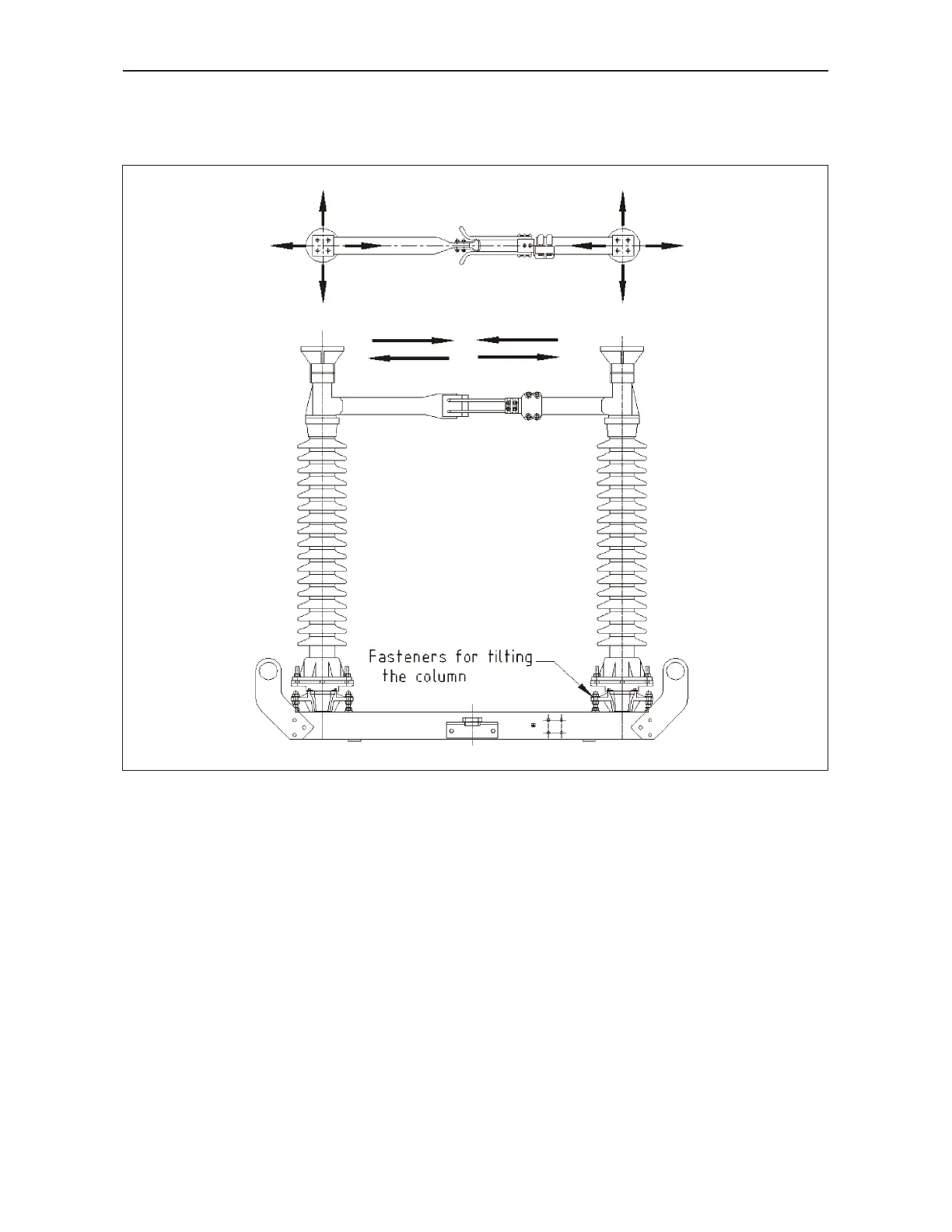

Figure 73 :
Tilting of Column for alignment
1HDB 050016-YN-A
96
