TruONE® ATS, INSTALLATION AND OPERATING INSTRUCTION
—
10. Dimension drawings
35
1.38
127
5.0
81
3.19
4
0.16
183
7.20
169
6.65
305
12.01
131
5.16
A2
9
0.35
20
0.79
230,5
9.07
238,5
9.39
A1
300
11.81
391
15.39
527
20.75
377
14.84
A
37,5
1.48
B
OX_30-250_
2 3 4
A 45/1.77 45/1.77 45/1.77
A1 277/10.91 277/10.91 277/10.91
A2 120/4.72 165/6.50 210/8.27
B 285/11.22 330/12.99 375/14.76
—

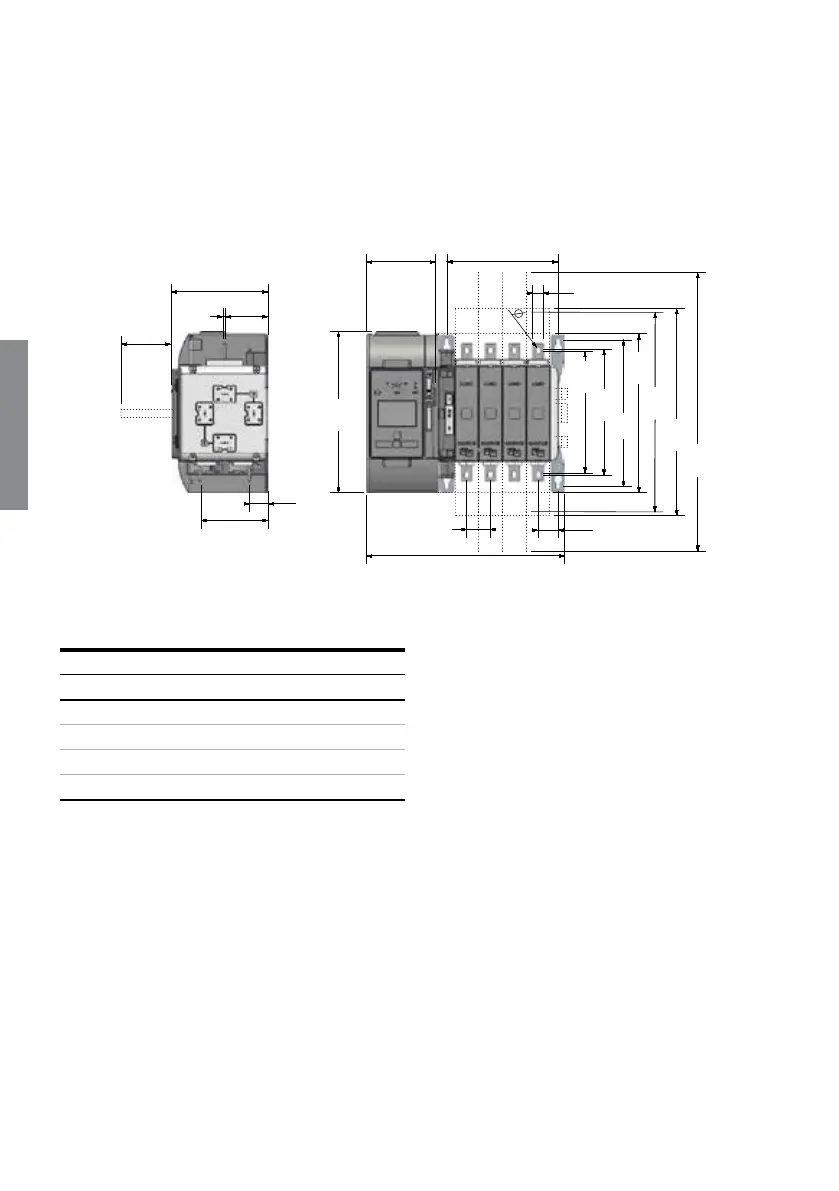

Fig. 10.1 OX_30…250_B
OX_30-250_
No. of poles 2 3 4
A   
   
   
B   
Note: B dimension, recommended to leave
-

