TruONE® ATS, INSTALLATION AND OPERATING INSTRUCTION
1
TOUCH
—

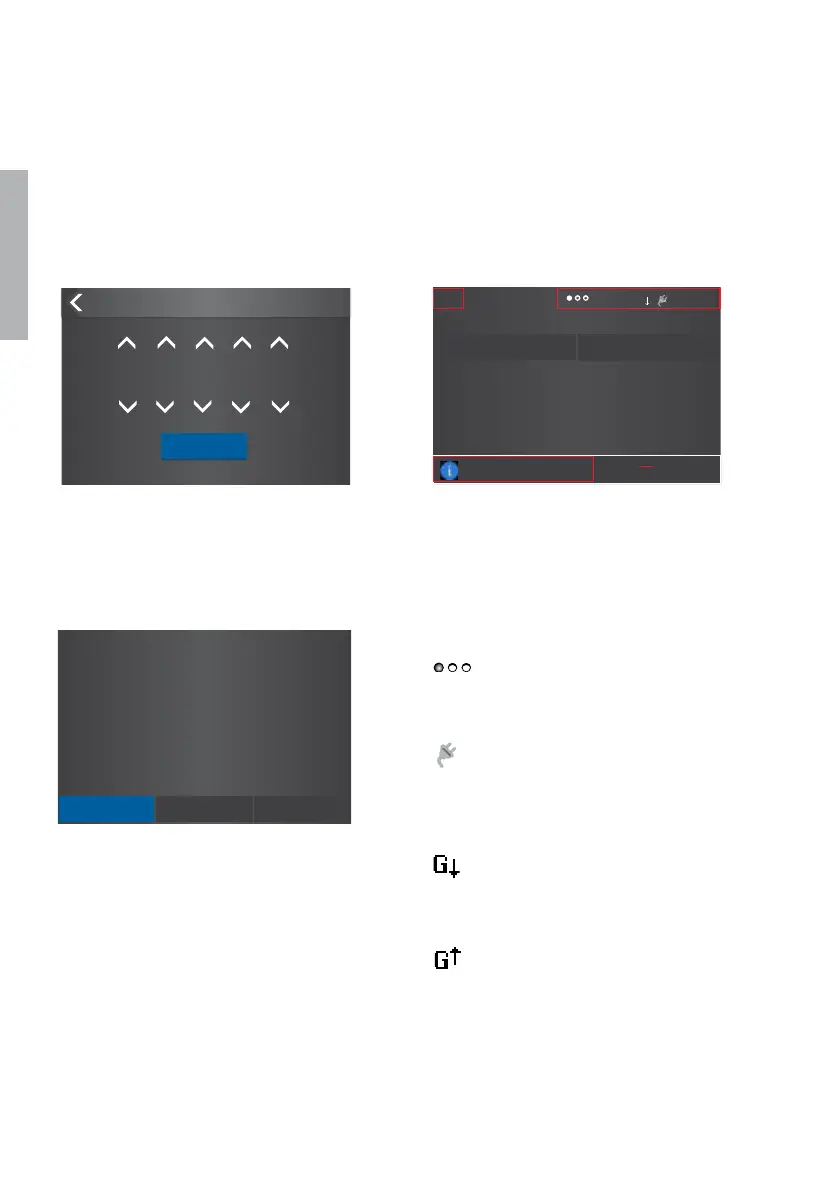

4.2 Level 4 (touch) control interface, menu tree
Description of the iconsPassword
—
Fig. 4.8
Enter the password when asked, choose the
right number by arrowheads and confirm, go
forward entering number after number
—
Fig. 4.9
After you have changed the parameter, go back in the
menu by pressing the < on the top left corner or Home key
and when prompted confirm changes by Confirm option’
—
Fig. 4.10
The location of the small icons and the alarms
S1 Connected to Load
Load Current
393 A
11:06
60s
G
Override S1 Fail
TruONE ATS
System Overview
S1 Ok Not Ok S2
—
Fig. 4.10
The default password is 00001, enter the
password when prompted (see Fig. 4.1).
Password
Confirm
0 ****
—
Fig. 4.8
—
Fig. 4.9
Programming
Application 2 Transformers/S1 Priority
Confirm Abort Modify
The small icons in System Overview
-pages are:
On upper right corner
Indicates the amount of pages
and the page where you are at
the moment
Auxiliary voltage connected
11:06 Time
Application set up as Transformer-
Generator. Generator start-up
signal deactivated
Application set up as Transformer-
Generator. Generator start-up
signal activated
On upper left corner
60s Time delay, in Alarm list you can
see the name of delay at the
same time, e.g. Override S1 Fail
