5.6.2 Ekip Com Profibus DP -module
The Ekip Com Profibus DP is a communi-
cation accessory module, that integrates
the automatic transfer switch in an indus-
trial remote supervision and control net-
work. The module is suitable Level 3 and
Level 4 controllers (LCD and touch control
interfaces).
It can be connected to a network RS-485
with protocol of Profibus communication,
and allows of:
• Connect the automatic transfer switch
as slaves to the network, with dialog
functionality.
• Provide the status information of the
automatic transfer switch (open,
closed).
For the communication lines W5 and W6,
Belden type 3079A or equivalent cables
must be used.
—

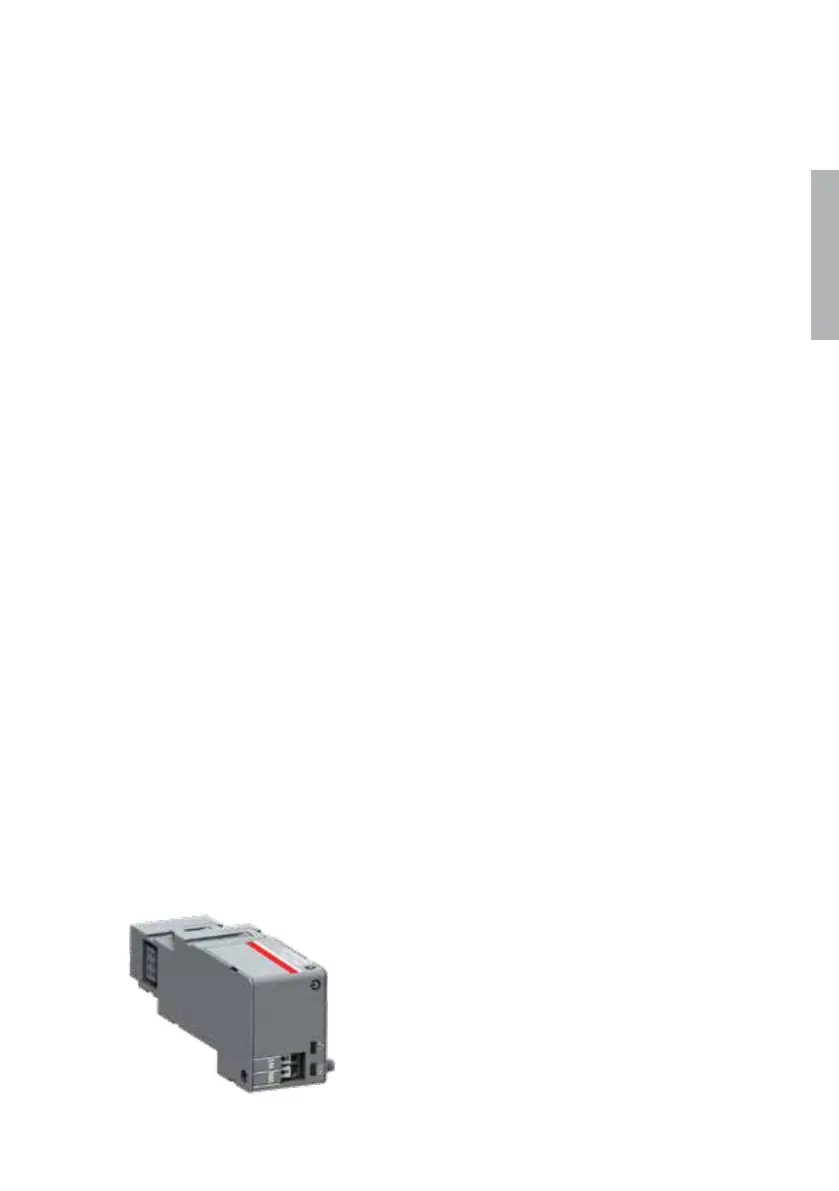

Fig. 5.14 Ekip Com Profibus DP -module
