5.3 Using Ekip Programming -module
—

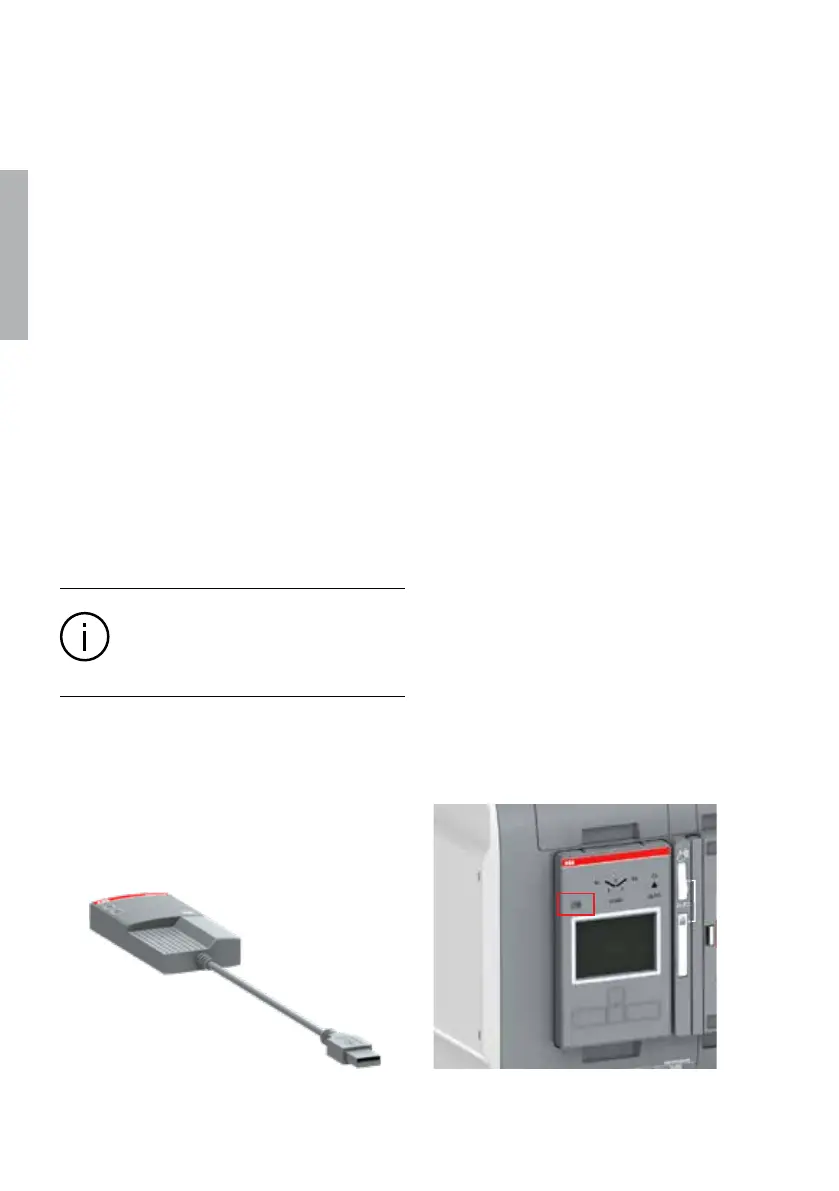

Fig. 5.5 Ekip Programming -module
—
Fig. 5.6 Programming port (USB port) is
situated in the front of the HMI, on left side
Ekip Programming -module is suitable to
use with all TruONE automatic transfer
switches. You can connect the module via
the programming port, see Fig. 5.6. The
programming port can only be used with
Ekip Programming and Ekip Bluetooth
-modules.
Ekip Programming -module allows you to:
• With Ekip Connect software update the
softwares and load, set and read the pa-
rameters
Ekip Programming -module draws its
power from the PC and connects one side
directly to the programming port (see Fig.
5.6) and on the other to the USB ports of
the PC with the cable supplied.
Note
Ekip Programming only powers the main
switch (HMI and modules excluded).
Therefore, in order to recognize all con-
nected modules with Ekip Connect, the
auxiliary power supply module, type
OXEA1, must be used (see chapter 5.4).
5.3.1 Signallings
Ekip Programming -module turns on after
connecting to the PC, and is equipped
with two LEDs, a green one indicating
that the module is on, and a yellow one in-
dicating active communication.
Information
The Ekip Programming module can be used
without powering the mains. (Local Bus Ac-
cessories, including HMI, are not operative).
