77
34OX_30-1600 rev. B / 1SCC303011M0201
1
LCD, TOUCH
—
5.4 Auxiliary power supply module
—
Fig. 5.8 Signals of auxiliary power supply module OXEA1
The auxiliary power supply module, type
OXEA1, supplies non-insulated power to
the external Ekip-modules, HMI and main
control unit. It is supplied by external sup-
ply, for example from generator battery or
from isolated transformer connected to
the main circuit. Powering product only
with Auxiliary power supply module limits
some operation functions of the main
control unit, for example: Operation of
Sensor module isn't possible.
Connections are push-in spring terminals,
no tool is required.
For external wiring, cable cross section;
AWG 22-16 / 0,5-1,5 mm
2
.
5.4.1 Electrical characteristics
The following table lists the electrical
characteristics:
5.4.2 Signallings
Module OXEA1
Power supply input
voltage
Nominal power
consumption
Inrush current
—
Table 5.1 Electrical characteristics of
auxiliary power supply module OXEA1
LED Indication Description
Power LED,
green
On, fixed Power is connected
to the input of the
module.
Off Power is not
connected.
—
Table 5.2 Indication / auxiliary power
supply module OXEA1
—

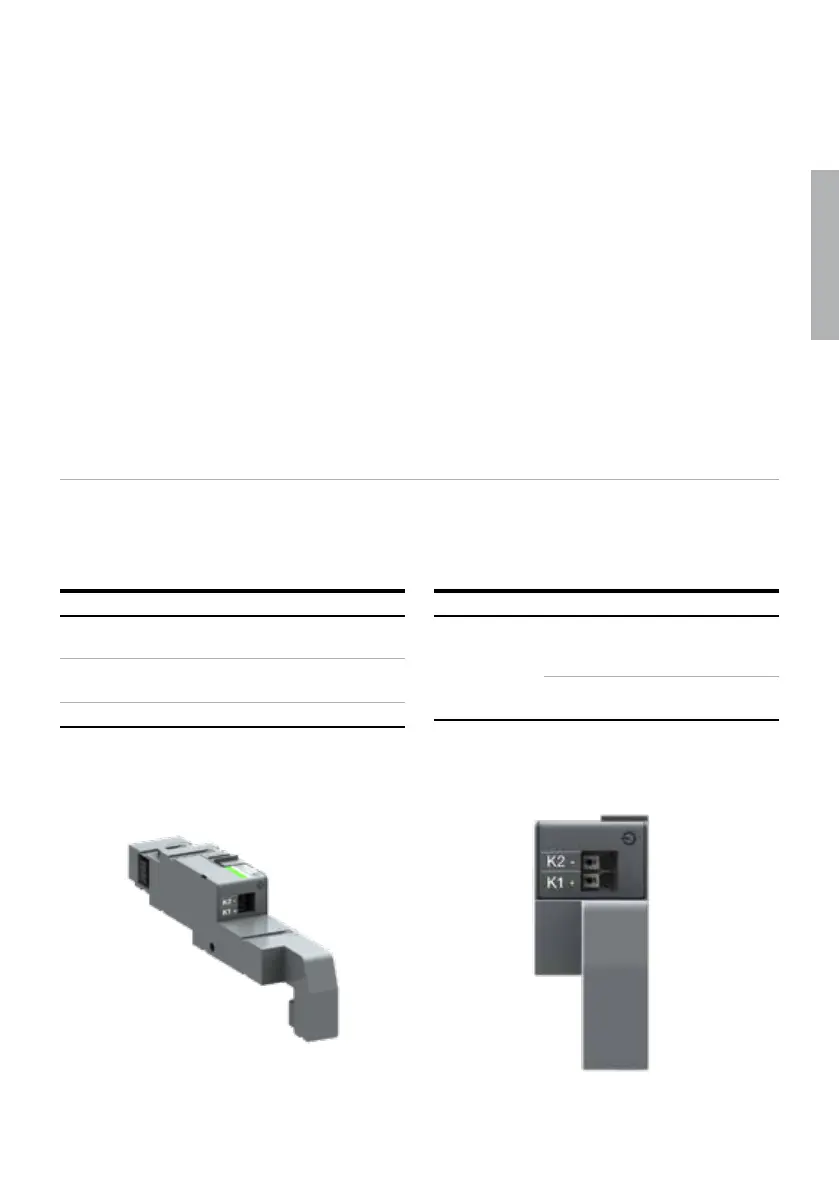

Fig. 5.7 Auxiliary power supply module, type OXEA1,
is needed when Ekip Signalling and Com -modules
are mounted to TruONE automatic transfer switch
