Opening the server
Caution: Before you proceed, make sure that you have turned
off the system and all peripherals connected to it. Read the
"Pre-installation instructions" section page 30.
You need to open the server before you can install upgrade
components. The front bezels and (left) side panel are removable to
allow access to the server’s internal components. Refer to the
following sections for instructions.
Removing the side panel
1 Perform the pre-installation instructions described on page 30.

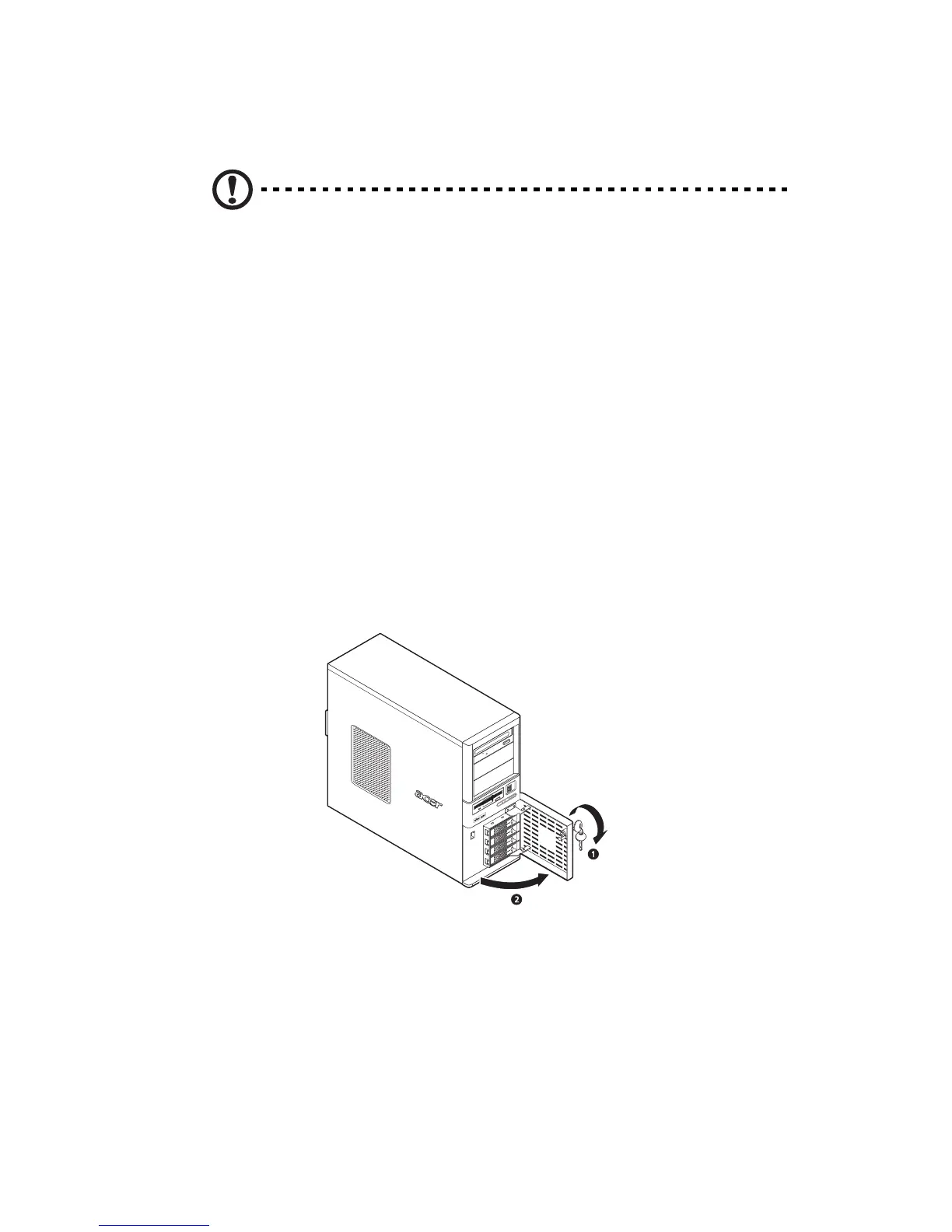

2 Open the HDD bay bezel.
(1) If necessary, insert the key into the lock and turn it
counterclockwise until it points to the unlock icon.
(2) Open the lower bezel to a 90° angle.
3 Remove the side panel.
(1) Loosen the two screws located on the rear edge of the
side panel.
(2) Move the side panel release latch all the way down to
unfasten the panel from the chassis.
