3 System upgrade
48
Installing an expansion card
This section explains how to install an expansion card.

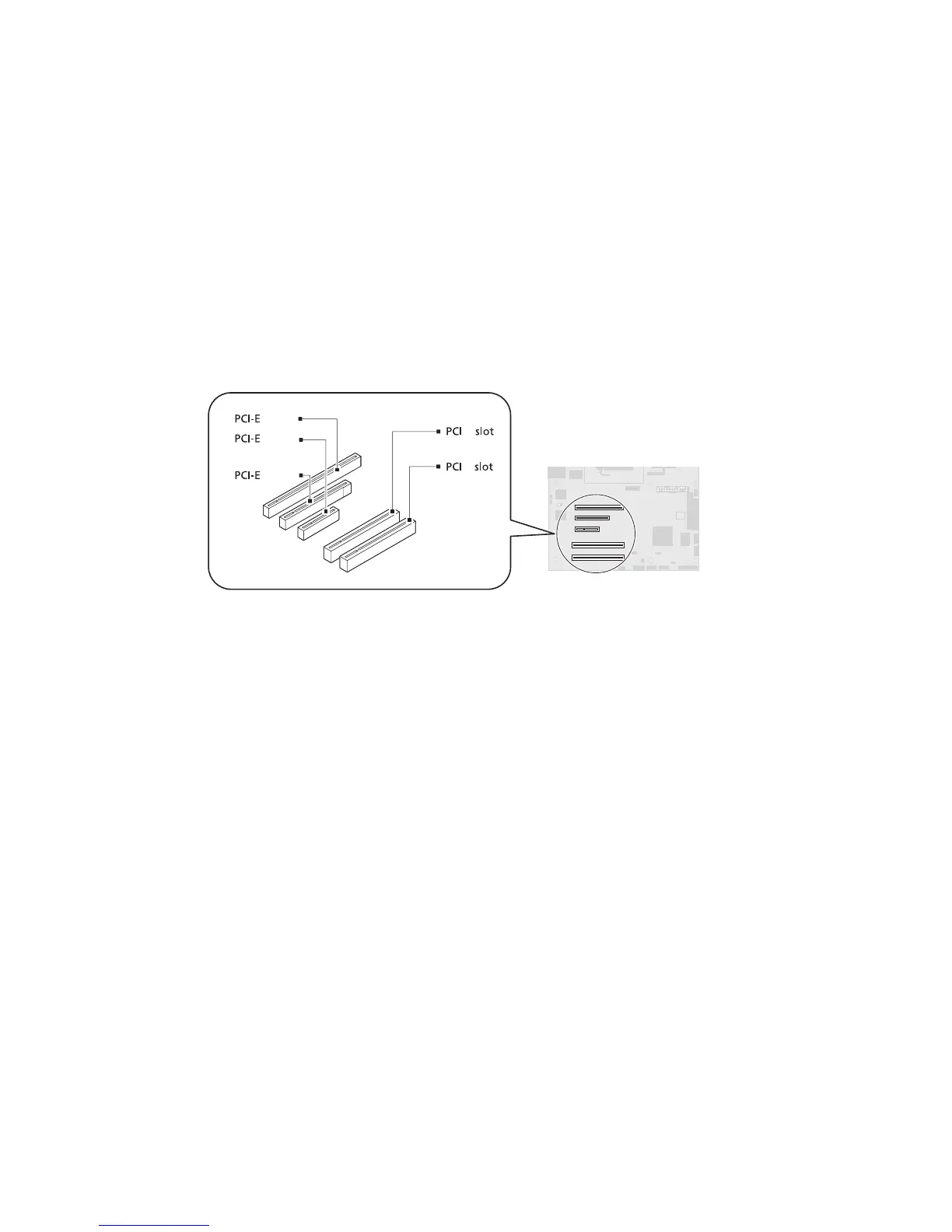

Altos G330 Mk2 has five PCI bus slots, namely:
• One PCI Express x16 slot with x8 throughput (PCI-E 1 slot)
• One PCI Express x8 slot with x4 throughput (PCI-E 2 slot)
• One PCI Express x4 slot with x1 throughput (PCI-E 3 slot)
• Two 32-bit/33 MHz/3.3V PCI bus slots (PCI 4, PCI5 slots)
To install an expansion card:
1 Perform the pre-installation instructions described on page 30.
2 If necessary, remove any cables that prevent access to the
expansion slots.
3 Locate an empty expansion slot that is compatible with the
specification of the card you intend to install.
4 Install the expansion card.
(1) Pull the card bracket latch slightly upward.
(2) Detach the card bracket latch from the chassis.
(3) Pull out the slot cover opposite the selected expansion slot.
Store it for future reassembly.
5
4
1 slot
2 slot
3 slot
