Acer Aspire 4930 Series Service Guide

148 Chapter 3

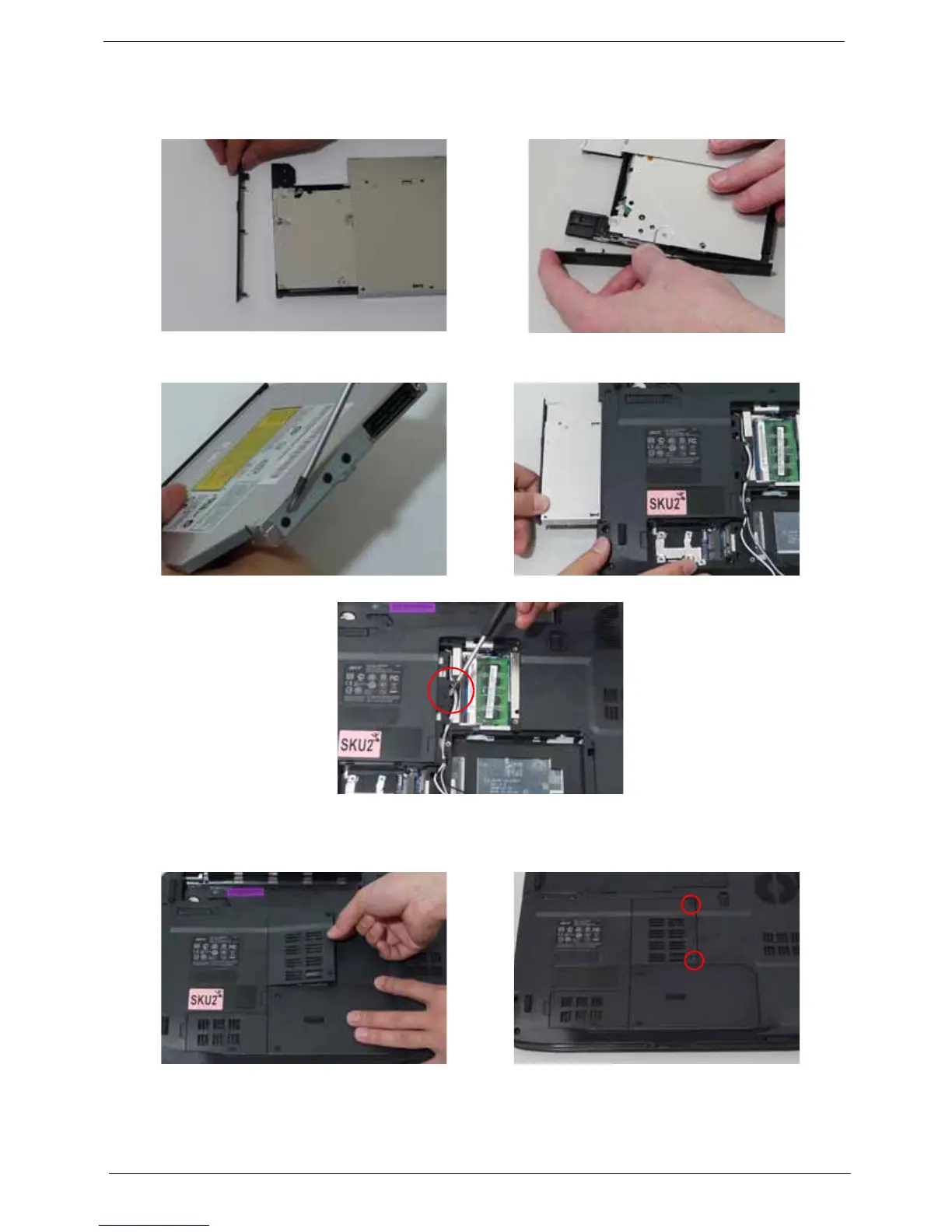

Replacing the ODD Module
Replacing the Lower Covers
1. With the ODD tray in the eject position, replace
the ODD cover on the new ODD Module.
2. Press the cover into the tray, bottom edge first, to
secure.
3. Turn ODD Module around and secure bracket
with two screws.
4. Slide Module in chassis and press until Module is
flush with chassis.
5. Replace the single screw to secure Module.
1. Replace the Memory Cover. 2. Replace the two screws to secure in place.

Acer Aspire 4930 Series Specifications

General

Memory	Up to 4 GB DDR2
Battery Life	Up to 3 hours
Processor	Intel Core 2 Duo
Display	1280x800 resolution
Graphics	Intel GMA 4500MHD
Storage	320GB HDD
Optical Drive	DVD Super Multi
Operating System	Windows Vista
Battery	6-cell Li-ion
Weight	2.4 kg
Wireless	802.11a/b/g/n
