Acer Aspire 4930 Series Service Guide

Chapter 5 169

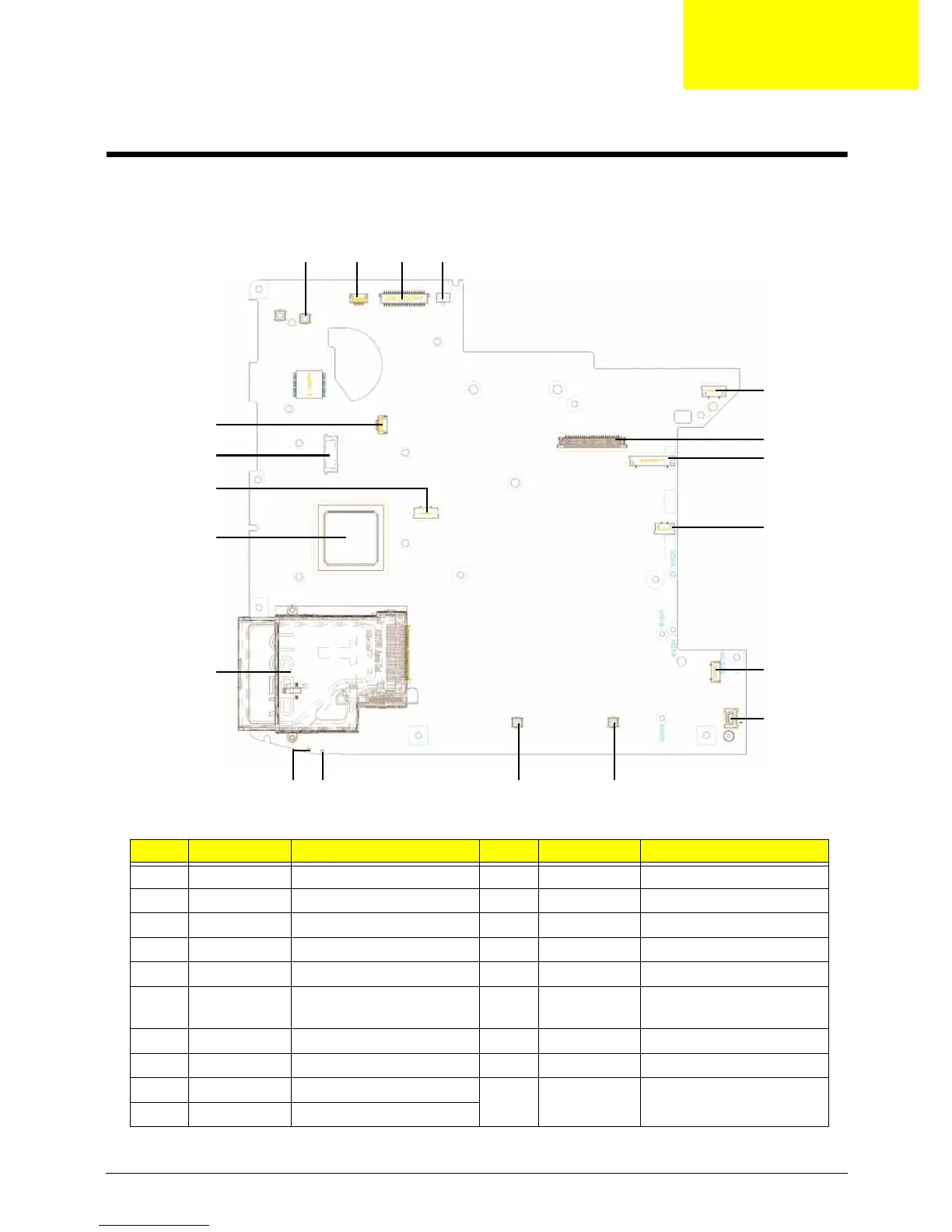

Jumper and Connector Locations
Top View
No. Item Description No. Item Description
1 SW1 e-Key Button 11 SW3 Touch pad (right) Button
2 JP1 Digital MIC Connector 12 SW2 Touch pad (left) Button
3 JLVDS1 LCD Connector 13 LED2 Battery LED
4 JP14 Acer backlight Connector 14 LED1 Power/SUSP LED
5 JP2 Media/B Connector 15 JEXP1 Express Card Socket
6 JP4 Internal Keyboard
Connector
16 U9 South Bridge
7 JP6 Power/B Connector 17 JP7 Touch Pad Connector
8 JP8 FP/B Connector 18 JP5 Fun/B Connector
9 JP10 Bluetooth Connector 19 JP3 Speaker Connector
10 JMDC1 MDC Connector
1
2
3
4
5
7
6
8
9
10
11121314
15
16
17
18
19
Chapter 5

Acer Aspire 4930 Series Specifications

General

Memory	Up to 4 GB DDR2
Battery Life	Up to 3 hours
Processor	Intel Core 2 Duo
Display	1280x800 resolution
Graphics	Intel GMA 4500MHD
Storage	320GB HDD
Optical Drive	DVD Super Multi
Operating System	Windows Vista
Battery	6-cell Li-ion
Weight	2.4 kg
Wireless	802.11a/b/g/n
