Acer Aspire 4930 Series Service Guide

170 Chapter 5

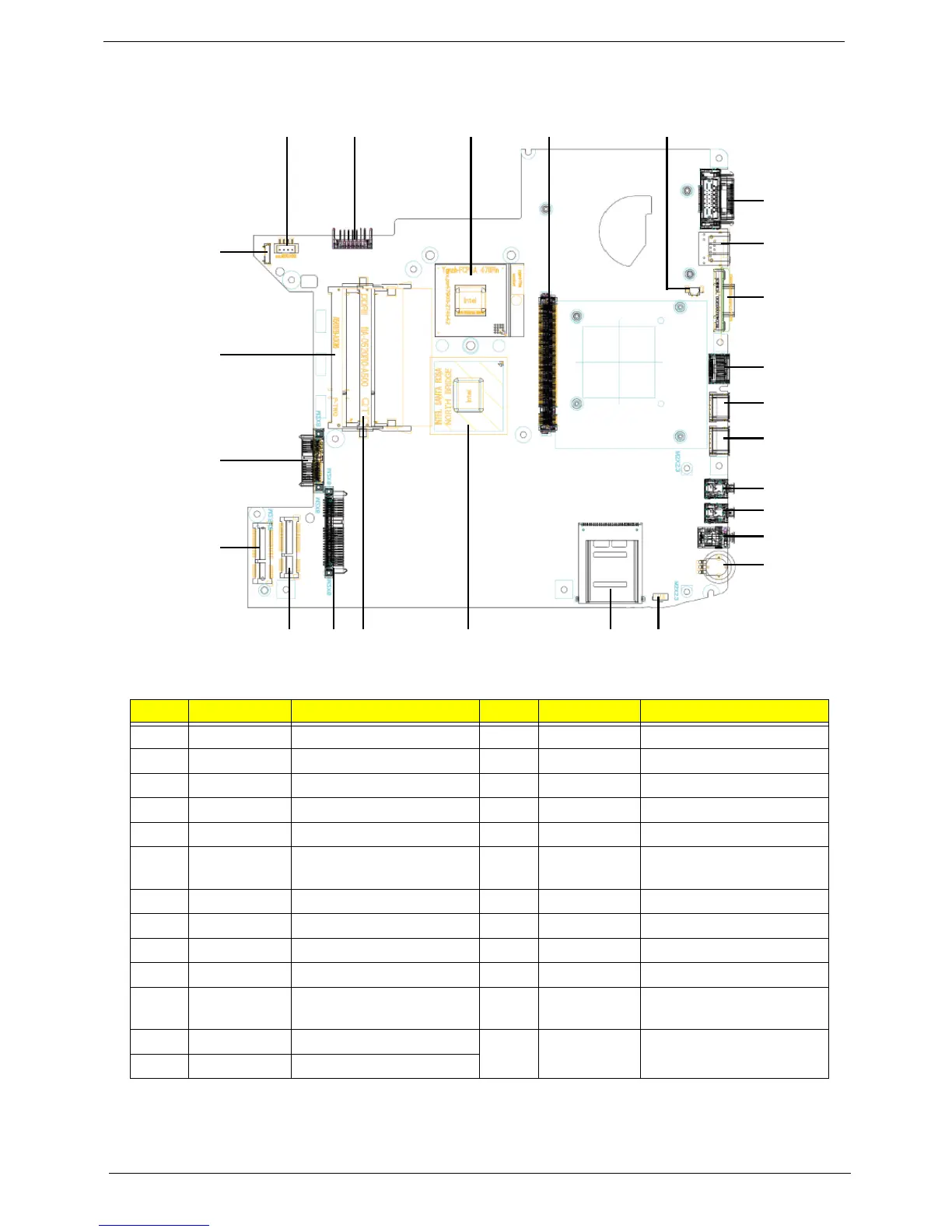

Bottom View
No. Item Description No. Item Description
1 PJP1 AC-IN Connector 14 JHP1 Head-Phone Connector
2 PJP2 Battery Connector 15 U39 Volume control wheel
3 JCPU1 CPU Socket 16 IR1 IR receiver
4 JMXM1 MXM Board Connector 17 JREAD1 Card Reader Socket
5 JP12 Fan Connector 18 U31 North Bridge
6 JDOCK1 Dock Connector 19 JDIMM2 Memory DIMM2
Connector
7 JRJ45 RJ45 Connector 20 JSATA2 HDD Connector
8 JCRT1 CRT Connector 21 JMINI2 Wireless Card Connector
9 JHDMI1 HDMI Connector 22 JMINI1 Robson II Connector
10 JUSB1 USB Connector 23 JSATA1 ODD Connector
11 JUSB2 USB Connector 24 JDIMM1 Memory DIMM1
Connector
12 JLINE1 Line-In Jack 25 JP11 USB/B Connector
13 JMIC1 MIC-In Jack
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17181920
21
22
23
24
25

Acer Aspire 4930 Series Specifications

General

Memory	Up to 4 GB DDR2
Battery Life	Up to 3 hours
Processor	Intel Core 2 Duo
Display	1280x800 resolution
Graphics	Intel GMA 4500MHD
Storage	320GB HDD
Optical Drive	DVD Super Multi
Operating System	Windows Vista
Battery	6-cell Li-ion
Weight	2.4 kg
Wireless	802.11a/b/g/n
