Chapter 3 113

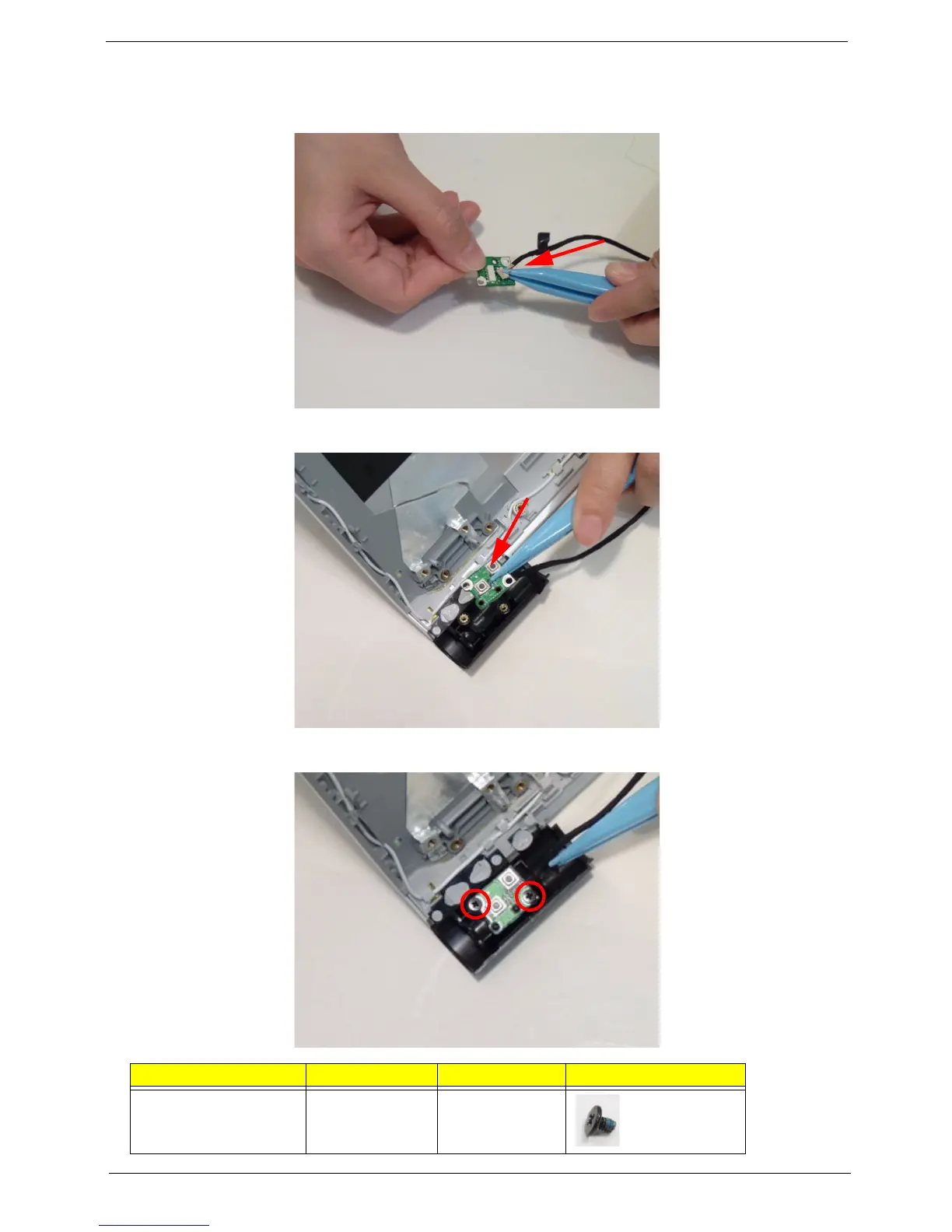

Replacing the Arcade Board
1. Connect the cable to the arcade board.
2. Place the arcade board in the left hinge.
3. Replace the two (2) screws to secure the arcade board.
Step Screw Quantity Screw Type
Arcade Board
Assembly
M2*3 2
