Acer Aspire 8943G Series User Manual

190 Chapter 5

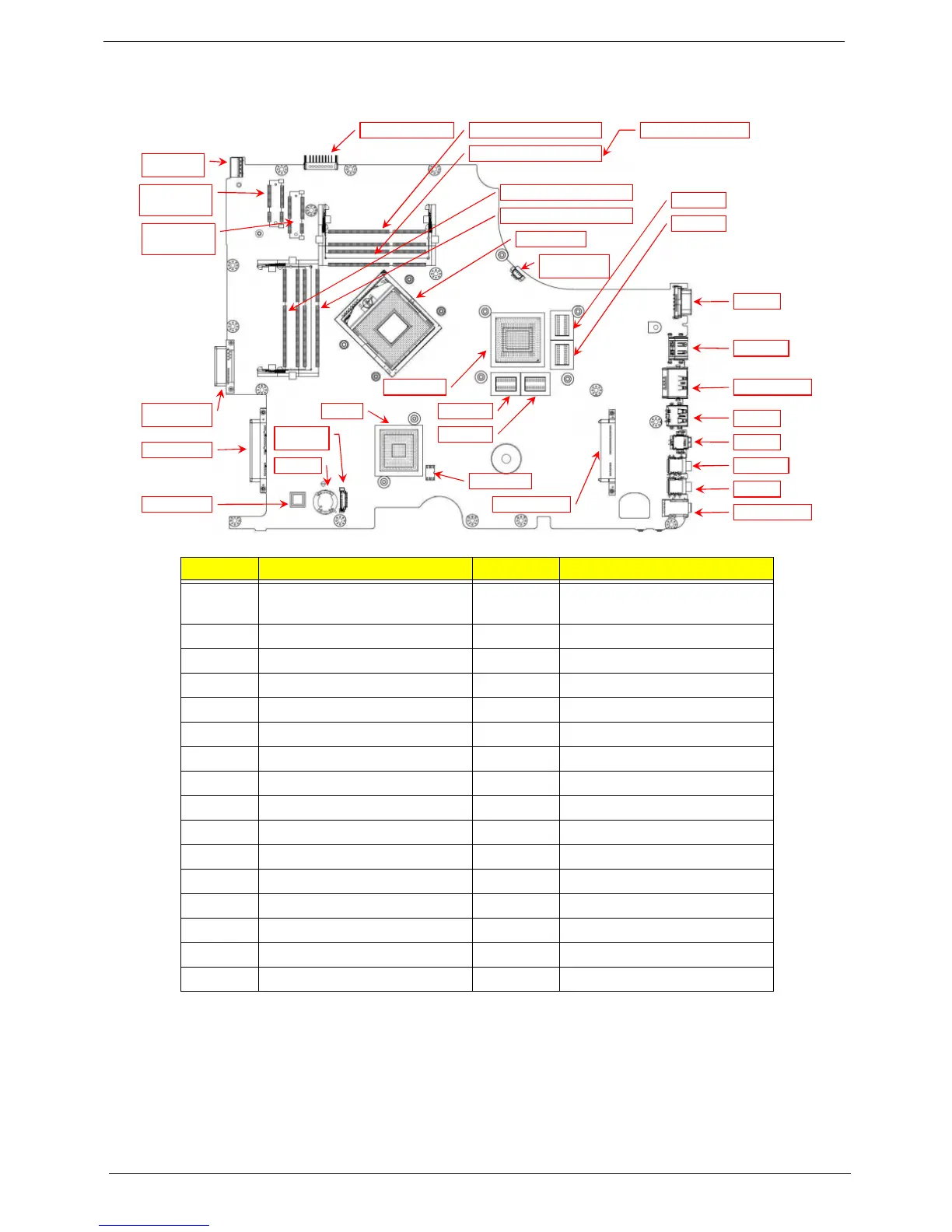

Mainboard Bottom View
Item Description Item Description
CN14 Minicard connector for
WLAN
CN20 USB
CN13 Minicard connector for TV CN21 1394
PJ2 DC-IN connnector CN24 Line in
PJ1 Battery connector CN25 Microphone
JDIM1 DDR3 Channel A DIMM0 CN28 HP & SPDIF
JDIM2 DR3 Channel A DIMM1 CN22 Second HDD
JDIM4 DDR3 Channel B DIMM0 U44 ME ROM
JDIM3 DDR3 Channel B DIMM1 U39 VRAM
CN15 CRT board connector U40 VRAM
U34 CPU socket U35 AMD GPU
CN15 CPU fan connector U42 PCH
U33 VRAM U42 Speaker connector
U38 VRAM CN27 RTC
CN16 CRT U45 Card reader
CN17 HDMI CN22 Main HDD
CN19 eSATA&USB CN18 ODD connector
CN15: CRT board connector
U34: CPU Socket
U35: AMD GPU
CN20: USB
CN19: eSATA&USB
CN16: CRT
U42: PCH
U44: ME ROM
JDIM1: DDR3 Channel A DIMM0PJ1: Battery Connector
CN13
:
Mini Card
connector
For TV
JDIM2: DDR3 Channel A DIMM1
JDIM4: DDR3 Channel B DIMM0
JDIM3: DDR3 Channel B DIMM1
PJ2
:
DC
-
IN
Connector
CN14
:
Mini Card
connector
For WLAN
CN15
:
CPU FAN
connector
U33: VRAM
U38: VRAM
U40: VRAM
U39: VRAM
CN17: HDMI
CN21: 1394
CN24: Line In
CN25: MIC
CN28: HP&SPDIF
CN22: Second HDD
CN22: Main HDD
U45: Card reader
U42
:
Speaker
connector
CN27: RTC
CN18
:
ODD
Connector

Acer Aspire 8943G Series Specifications

General

Graphics	ATI Mobility Radeon HD 5850
Storage	Up to 1TB HDD
Operating System	Windows 7 Home Premium
Weight	4.6 kg (10.14 lbs)
LAN	Gigabit Ethernet
Card Reader	5-in-1 card reader
HDMI	Yes
Processor	Intel Core i7
Display	18.4-inch, 1920x1080
RAM	Up to 8GB DDR3
Optical Drive	Blu-ray Disc / DVD-Super Multi DL drive
Audio	Dolby Home Theater v3
Wireless	Wi-Fi 802.11b/g/n
Webcam	Acer Crystal Eye webcam
Battery	8-cell Lithium Ion (Li-Ion) 4800 mAh
