48 Chapter 3
External Module Disassembly Process
NOTE: The product previews seen in the disassembly procedures may not represent the final product color or
configuration.

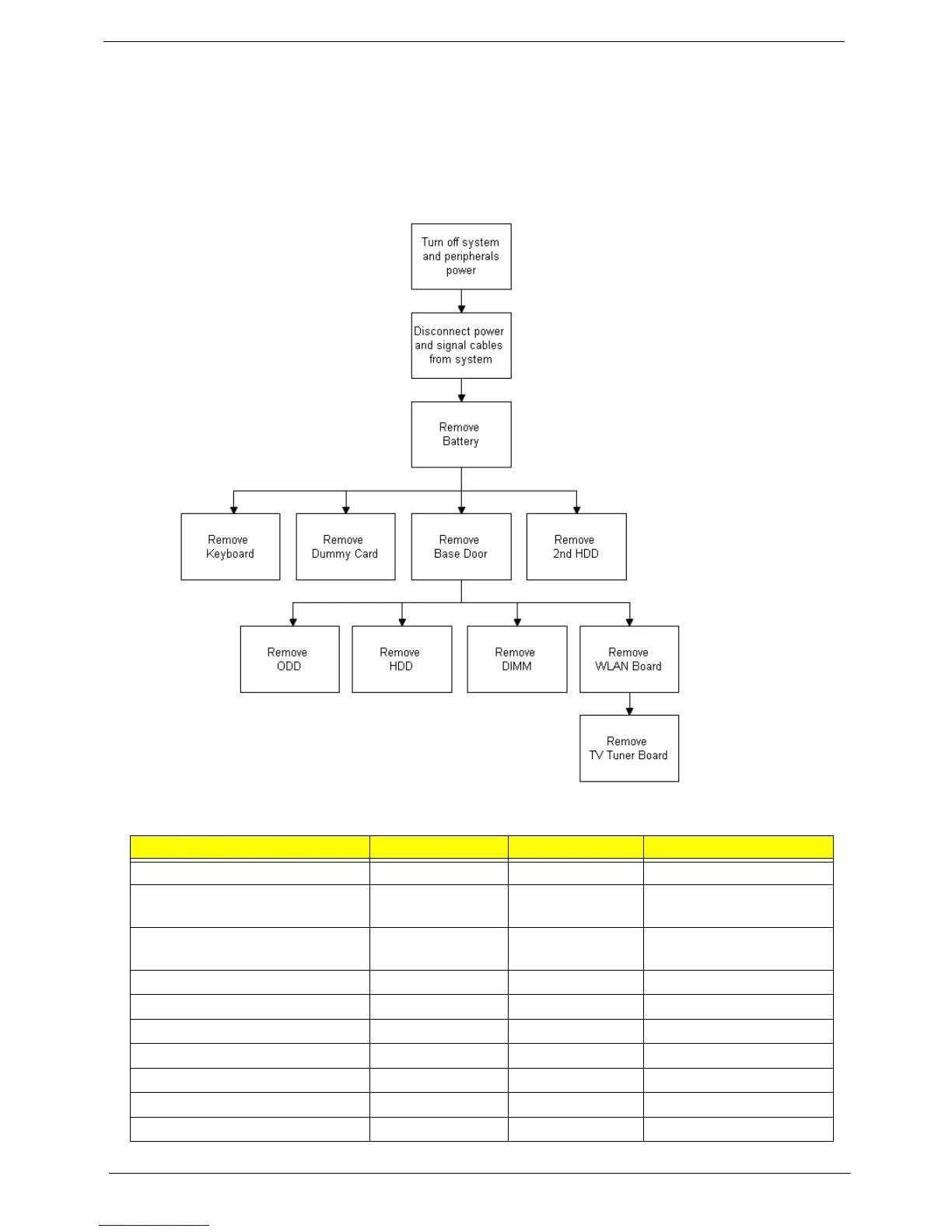

External Modules Disassembly Flowchart
External Module Screw List
Step Screw Quantity Part No.
Base Cover Disassembly M2.5*4 9 86.PWL02.010
Master HDD Bracket
Disassembly
M3*3.5 Ni 2 86.PWL02.009
Master HDD Module
Disassembly
M2*5 2 86.PWL02.006
WLAN Module Disassembly M2*3 1 86.PWL02.002
TV Tuner Module Disassembly M2*3 1 86.PWL02.002
Slave HDD Module Disassembly M2*5 2 86.PWL02.006
Slave HDD Door Disassembly M2.5*6 2 86.PWL02.003
ODD Module Disassembly M2.5*6 1 86.PWL02.003
ODD Bracket Disassembly M2*3 2 86.PWL02.002
Keyboard Module Disassembly M1.6*1.35 6 86.PWL02.004
