Acer Aspire 8943G Series User Manual

Chapter 3 133
Replacing the Thermal Module
IMPORTANT: Apply a suitable thermal grease and ensure all heat pads are in place before replacing the thermal
module.
The following thermal grease types are approved for use:
• Silmore GP50
• Honeywell
• Jet Motor 7762
The following thermal pads are approved for use:
• Eapus XR-PE
1. Remove all traces of thermal grease from the CPU using a lint-free cloth or cotton swab and Isopropyl
Alcohol, Acetone (1), or other approved cleaning agent.
2. Apply a small amount of thermal grease to the centre of the CPU—there is no need to spread the grease
manually, the force used during the installation of the thermal module is sufficient.

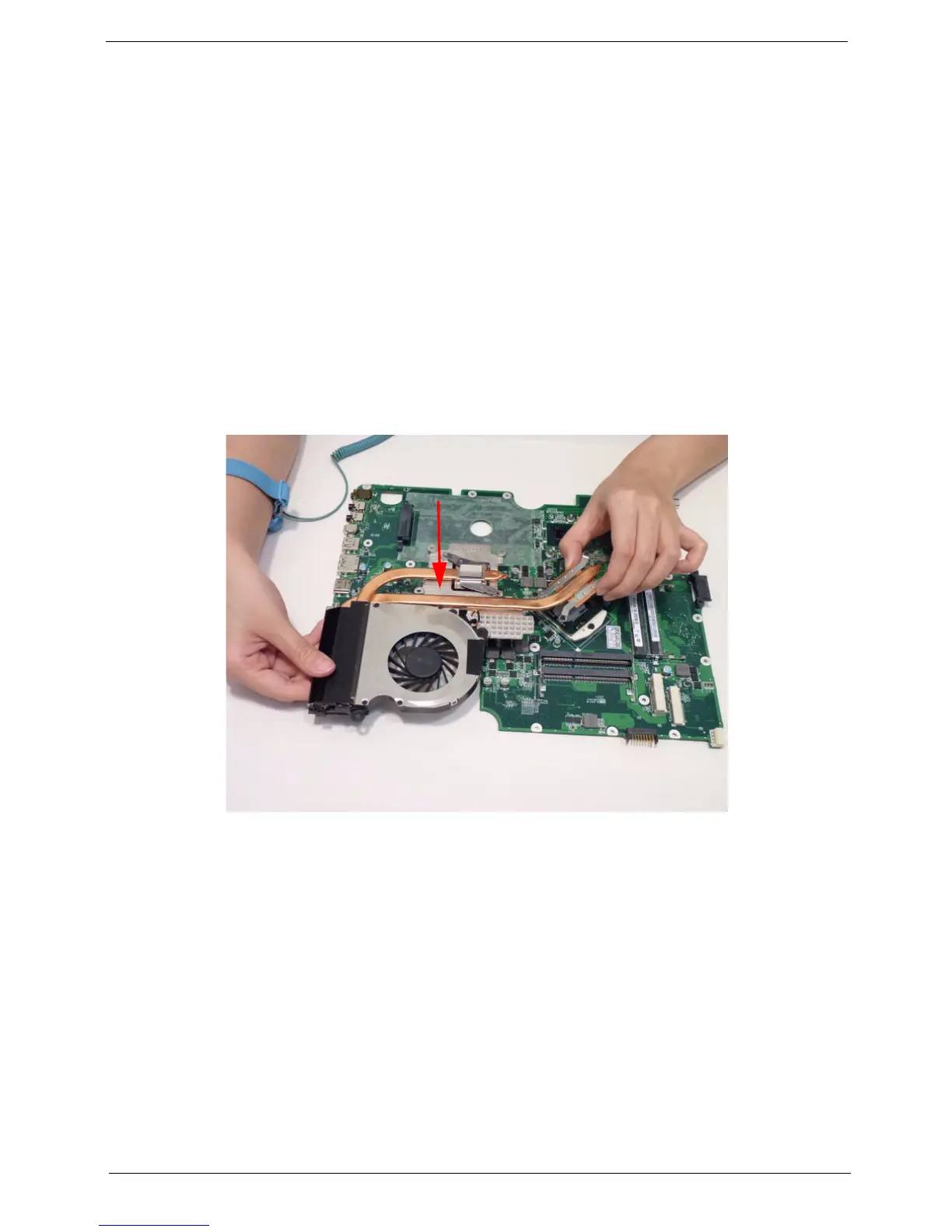

3. Align the screw holes on the thermal module and mainboard then replace the module. Keep the module
as level as possible to spread the thermal grease evenly.

Acer Aspire 8943G Series Specifications

General

Graphics	ATI Mobility Radeon HD 5850
Storage	Up to 1TB HDD
Operating System	Windows 7 Home Premium
Weight	4.6 kg (10.14 lbs)
LAN	Gigabit Ethernet
Card Reader	5-in-1 card reader
HDMI	Yes
Processor	Intel Core i7
Display	18.4-inch, 1920x1080
RAM	Up to 8GB DDR3
Optical Drive	Blu-ray Disc / DVD-Super Multi DL drive
Audio	Dolby Home Theater v3
Wireless	Wi-Fi 802.11b/g/n
Webcam	Acer Crystal Eye webcam
Battery	8-cell Lithium Ion (Li-Ion) 4800 mAh
