8 Chapter 1

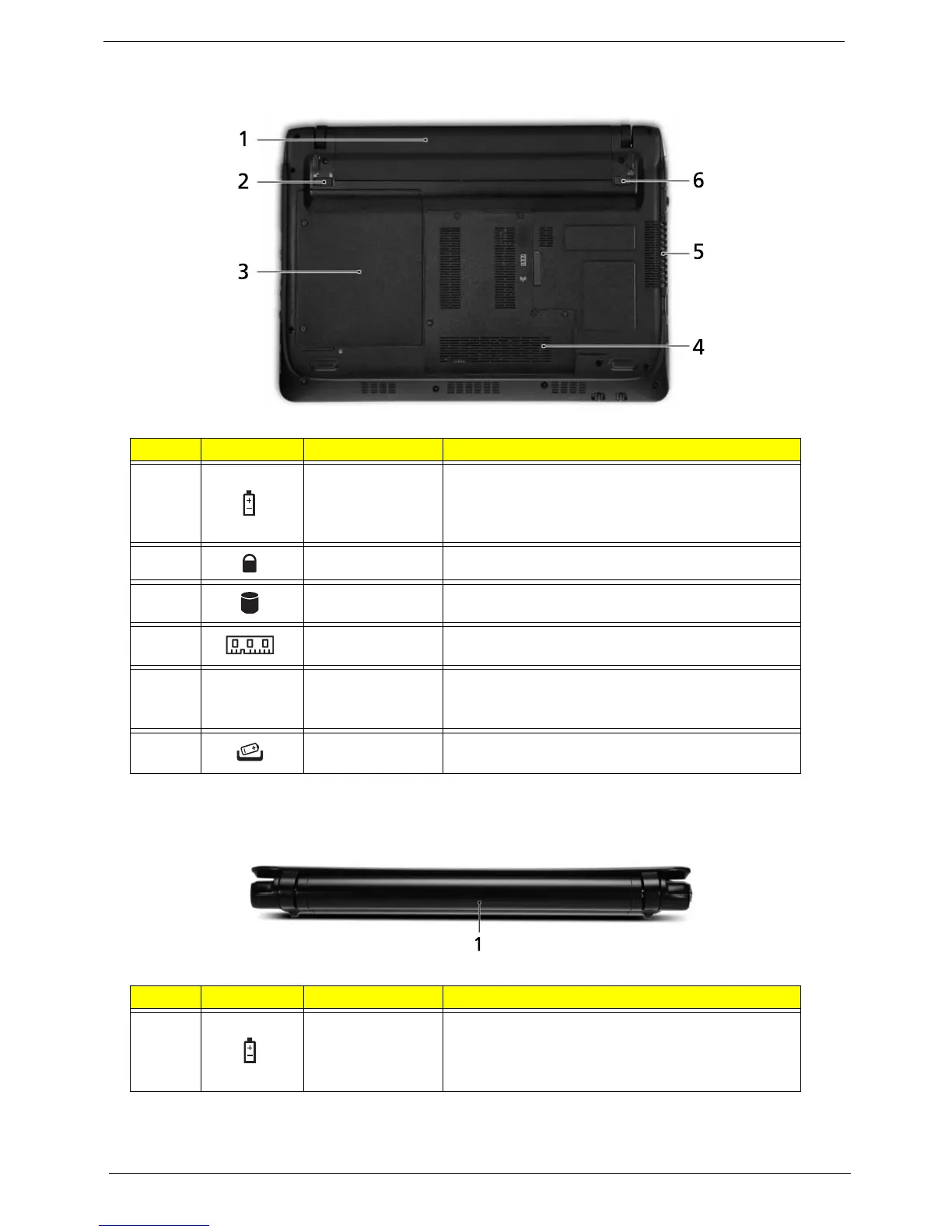

Base View
Rear View
No. Icon Item Description
1 Battery bay Houses the computer’s battery pack.
Note: The battery shown is for reference only. Your
PC may have a different battery depending on the
model purchased.
2 Battery lock Locks the battery in position
3 Hard disk bay Houses the computer’s hard disk (secured with
screws)
4 Memory
compartment
Houses the computer’s main memory.
5 Ventilation slots
and cooling fan
Enable the computer to stay cool, even after
prolonged use.
Note: Do not cover or obstruct the opening the fan.
6 Battery release
latch
Releases the battery for removal.
No. Icon Item Description
1 Battery bay Houses the computer’s battery pack.
Note: The battery shown is for reference only. Your
PC may have a different battery depending on the
model purchased.
