Chapter 3
Pre-disassembly Instructions
Before proceeding with the disassembly procedure, make su
re that you do the following:
1.
T
urn off the power to the
system and all peripherals.
2.

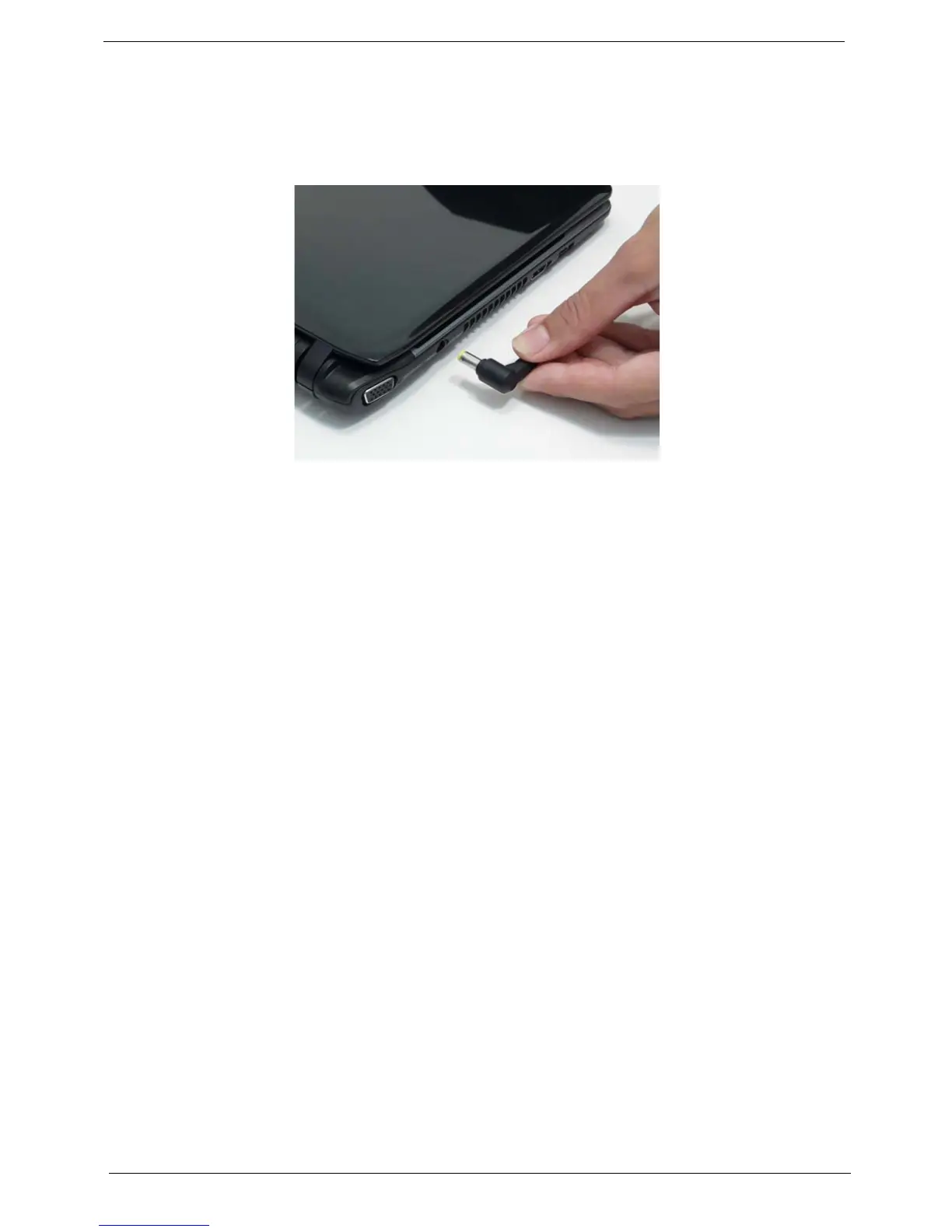

Unplug the AC adapter and all power and signal cab
les from the system.
3.
Place the system on a flat, stable surface.
