Service and Maintenance 5-29
Mainboard Installation
1. Align the mainboard and connect the camera connector to the mainboard connector.
TIP: Make sure that no cable is placed under the mainboard.

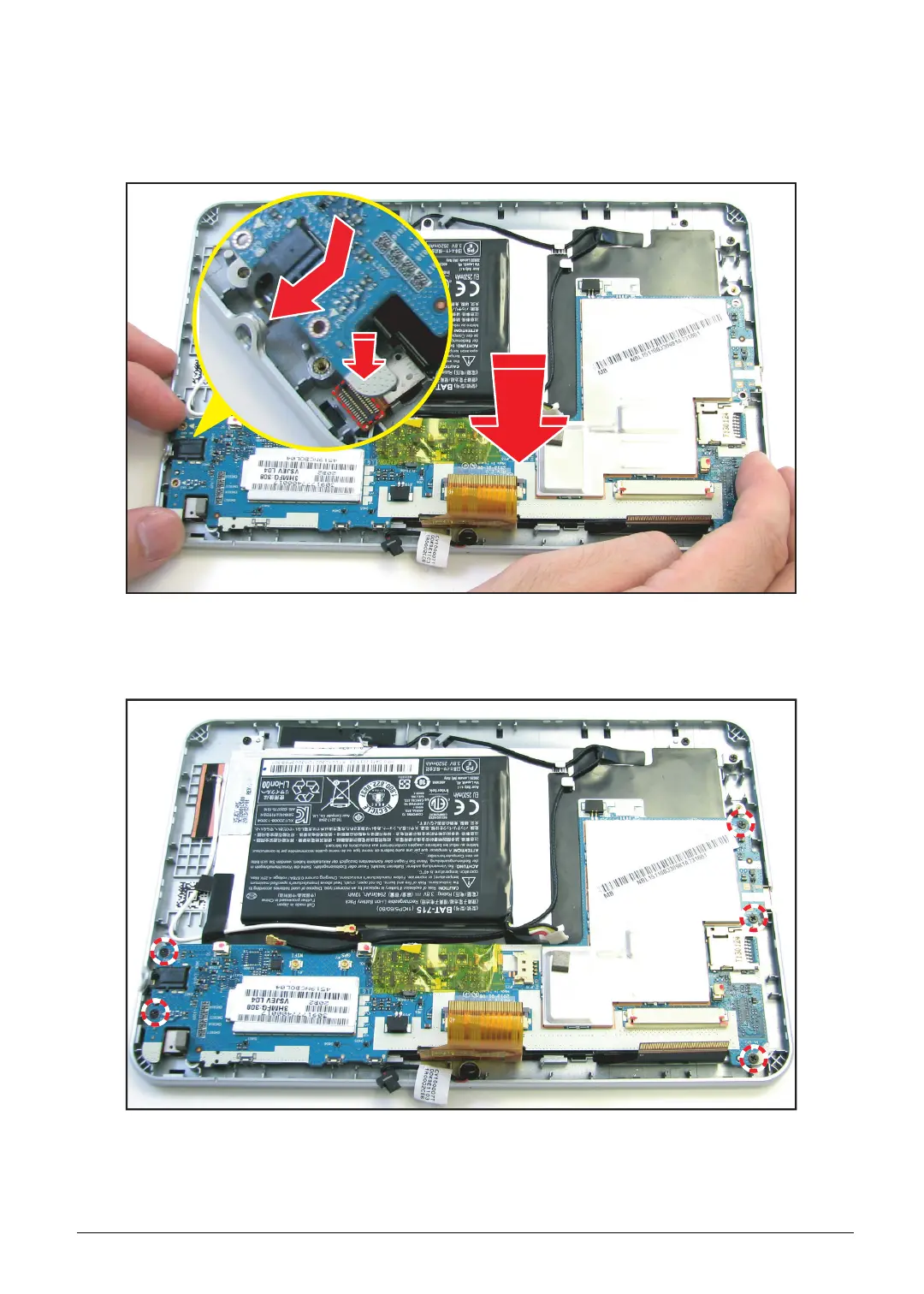

Figure 5-41. Connecting the Camera Connector
2. Attach the five (5) screws to secure the mainboard to the bezel.
NOTE: Screw torque = 1.0~1.5 kgf.cm
Figure 5-42. Securing the Mainboard Screws
To Next Page
