Service and Maintenance 5-45
Battery Installation
1. Align the battery to the lower case, and press slightly to secure the adhesives.

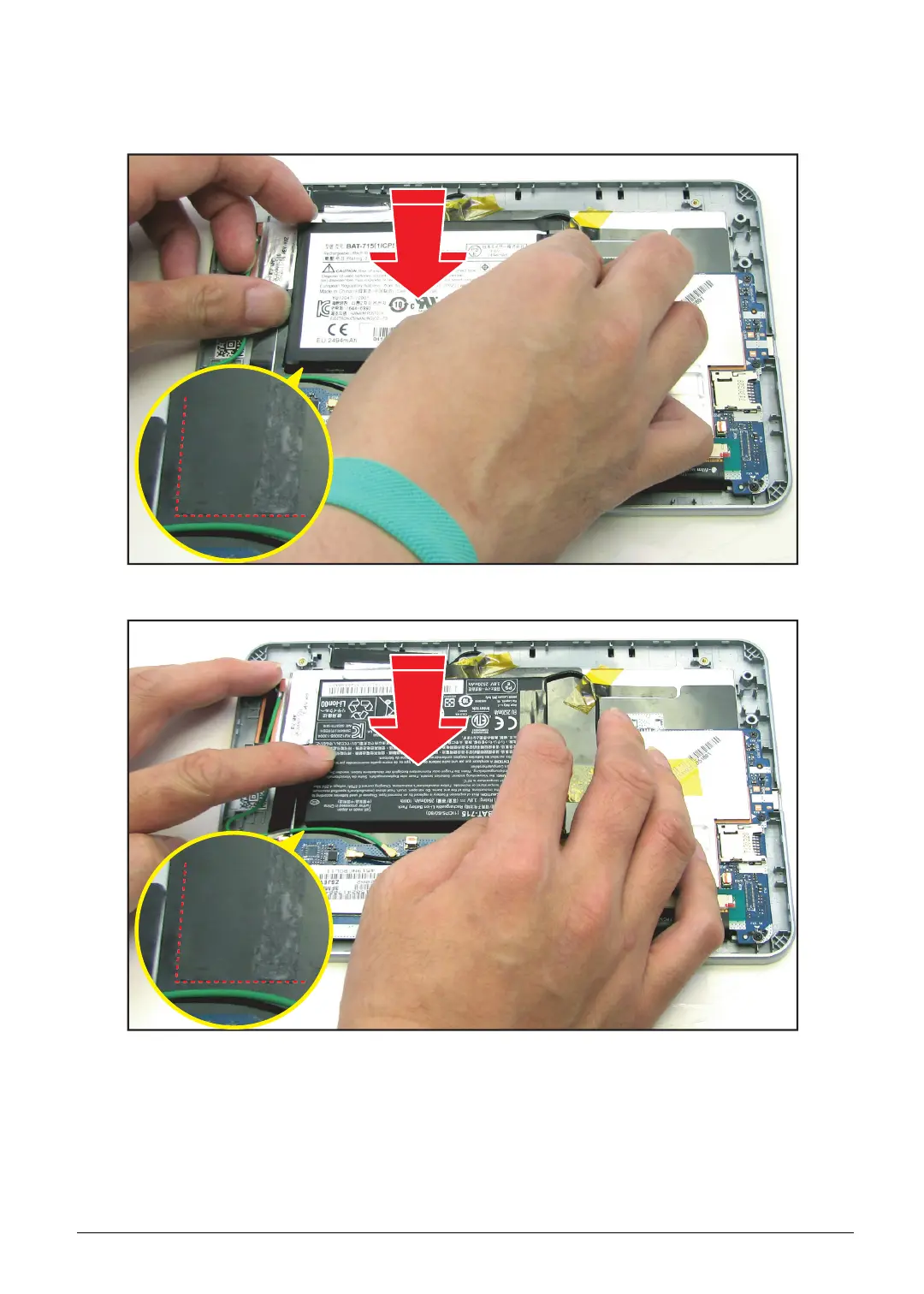

Figure 5-69. Installing the LG Battery
Figure 5-70. Installing the Sanyo Battery
2. Install the GPS antenna (see GPS Antenna Installation on page 5-39).
3. Install the WLAN antenna (see WLAN Antenna Installation on page 5-35).
4. Install the mainboard (see WLAN Antenna Installation on page 5-35).
