5-42 Service and Maintenance
Camera Module Installation

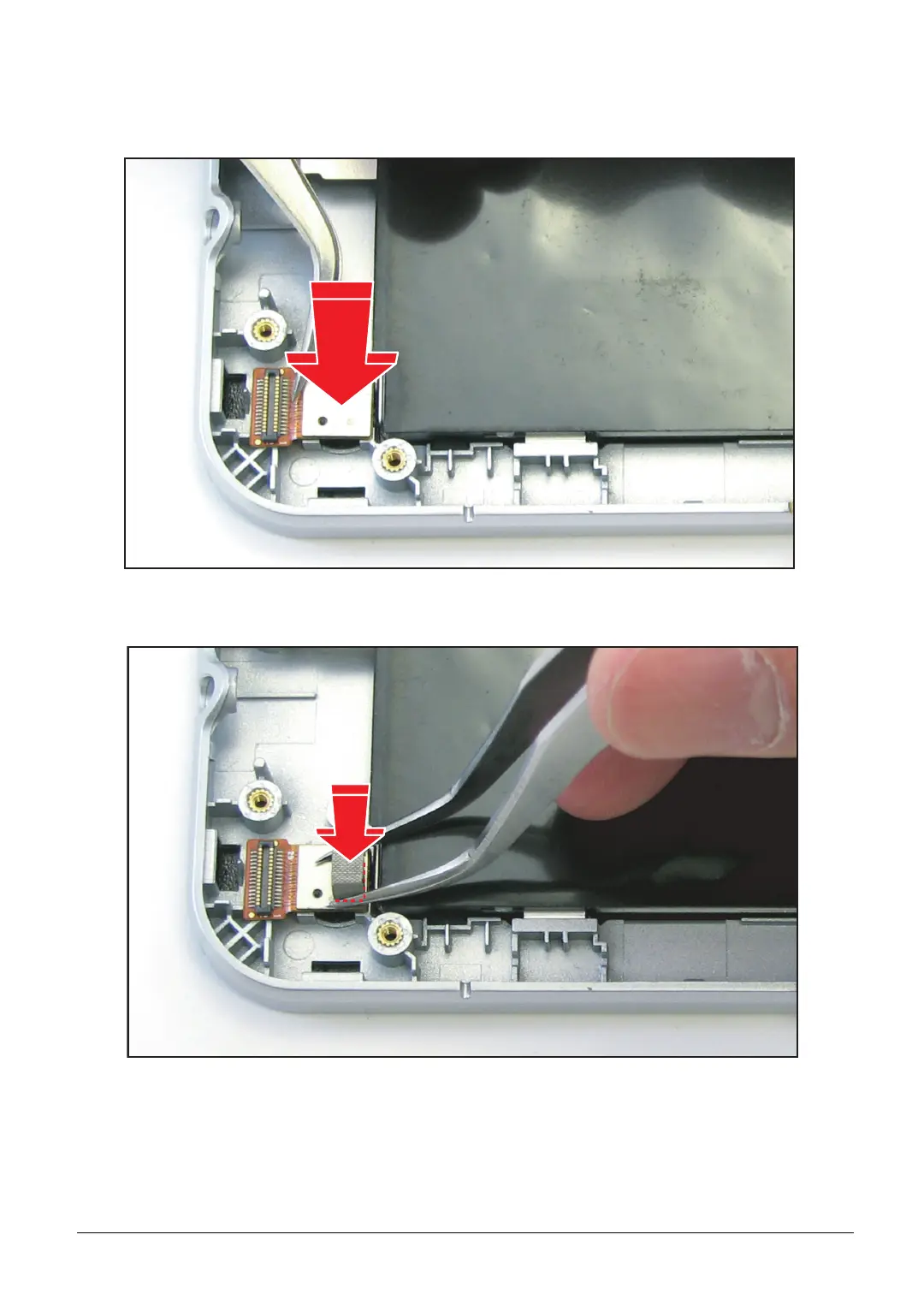

1. Align the camera module to the camera slot on the bezel.
Figure 5-63. Aligning the Camera Module
2. Attach the mylar to the camera.
Figure 5-64. Attaching the Mylar
3. Install the mainboard (see Mainboard Installation on page 5-29).
