Service and Maintenance 5-39
GPS Antenna Installation
1. Using the tweezers, align and install the GPS antenna to the antenna slot on the bezel.

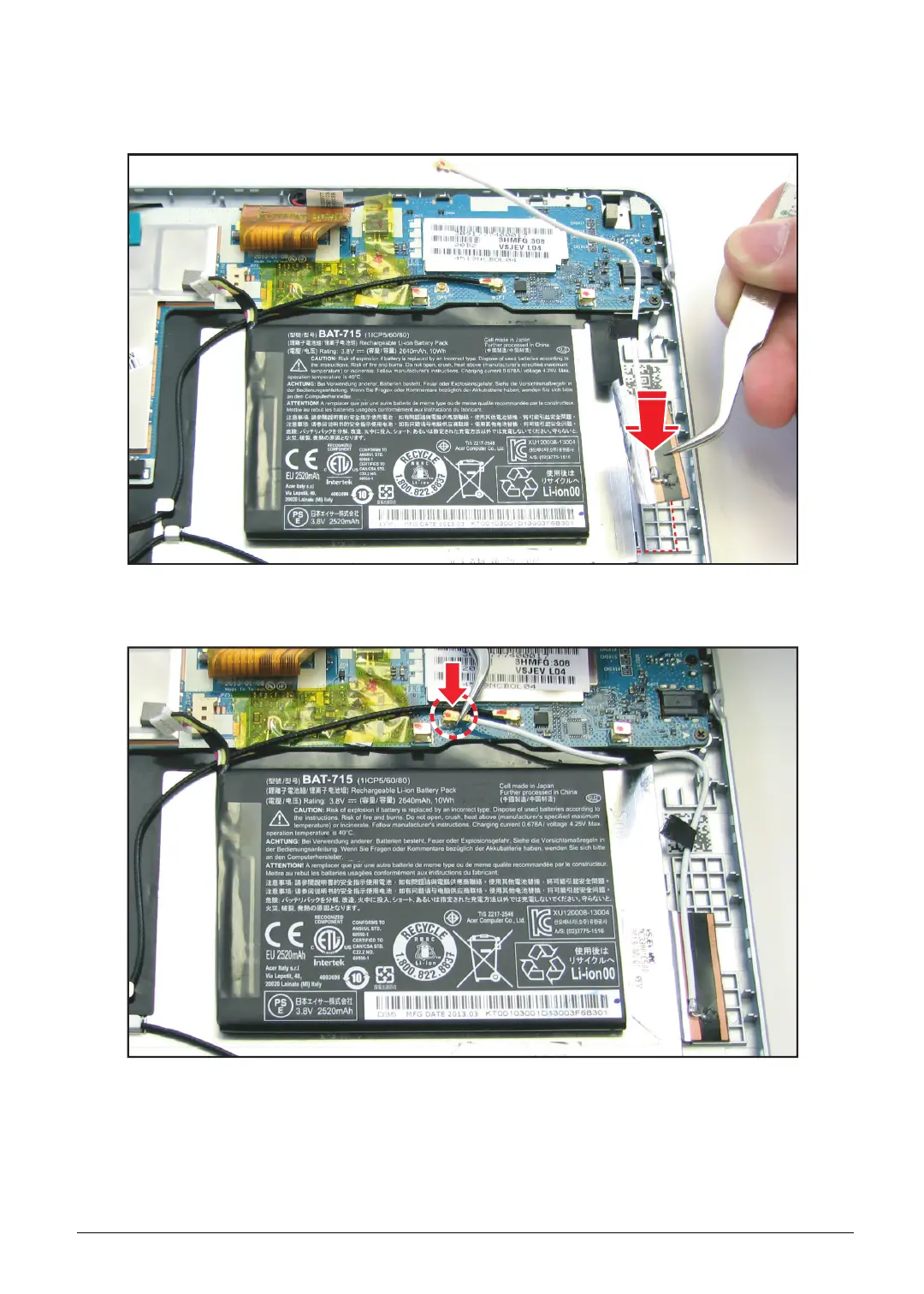

Figure 5-58. Installing the GPS Antenna
2. Connect the GPS antenna connector to the mainboard connector.
Figure 5-59. Connecting the GPS Antenna Connector
