Agilent Technologies InfiniiVision 3000 X-Series User Manual

Digital Channels 6
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 111
Activity indicator When any digital channels are turned on, an activity indicator is displayed
in the status line at the bottom of the display. A digital channel can be
always high ( ), always low ( ), or actively toggling logic states ( ). Any
channel that is turned off will be grayed out in the activity indicator.
To change the displayed size of the digital channels
1 Press the [Digital] key.
2 Press the size ( ) softkey to select how the digital channels are
displayed.

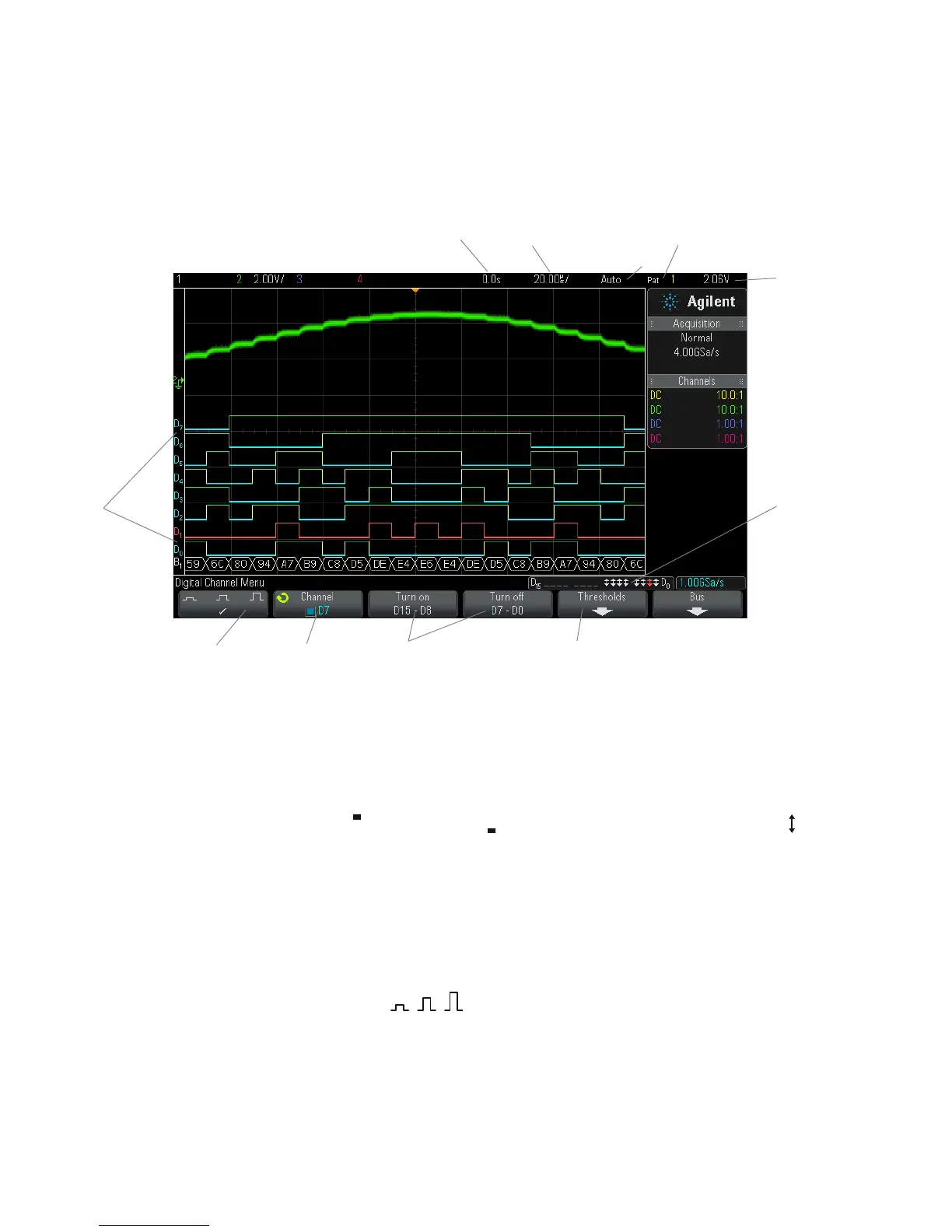

Activity
indicators
Delay
time
Time/
div
Trigger
type and
source
Threshold
level
Digital
channel
identifiers
Waveform
size
Turn
individual
channels
on/off
Turn
groups of
channels
on/off
Threshold
menu key
Trigger
mode or
run status
