Maintenance 5
Agilent U1251A/U1252A User’s and Service Guide 105
Battery Replacement
The meter is powered by 7.2 V battery, and use only
specified battery. To ensure the specification specified, it is
suggested to replace battery immediately when the sign of
low battery is displayed and flashing. If your meter has
specified rechargeable battery inside, please go to “Charging
The Battery”. Below is the procedures for battery
replacement:

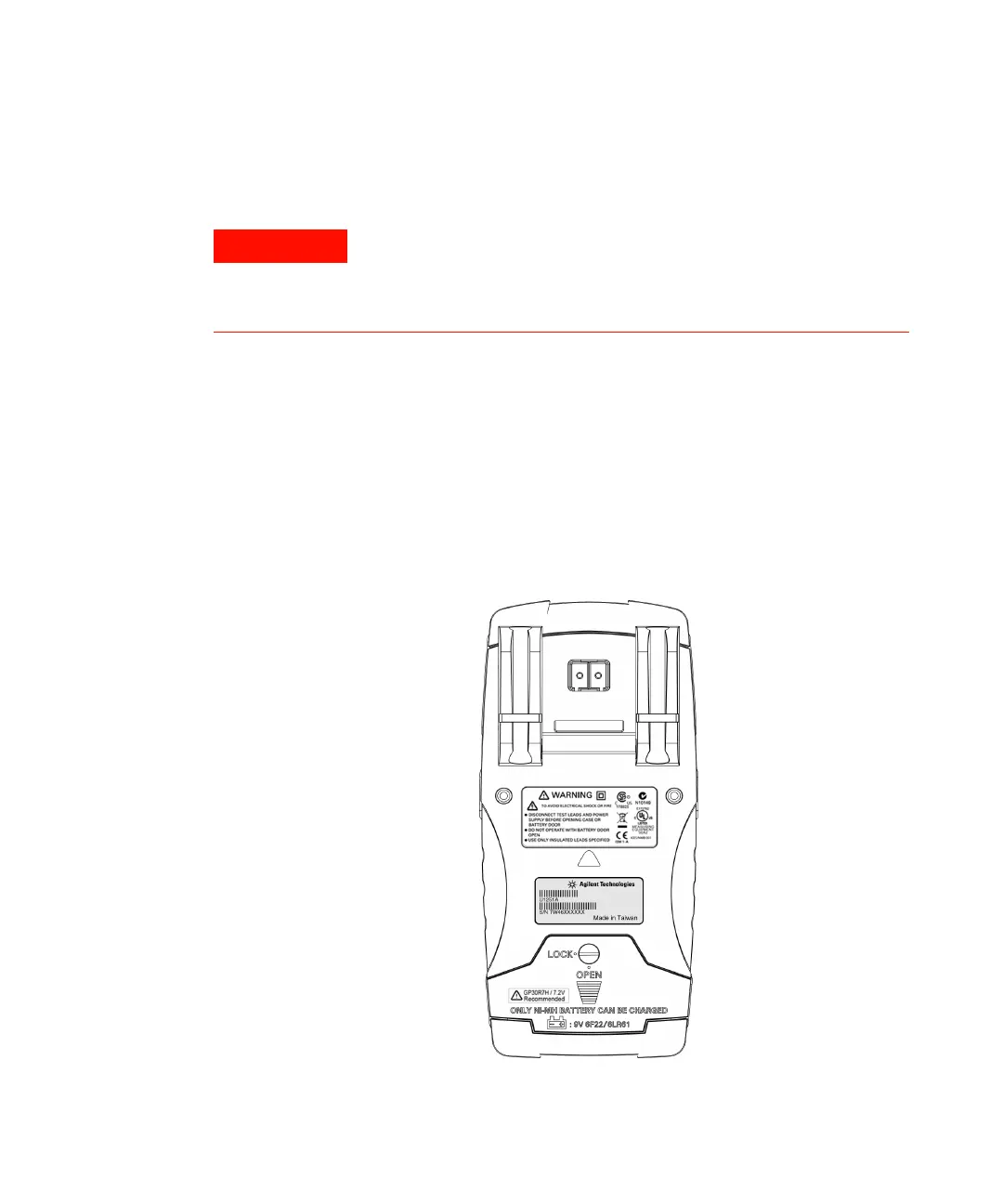

1 At the rear panel, turn the screw on the battery cover
from LOCK to OPEN position (counterclockwise).
WARNING
Never discharge the battery by shorting it or reverse polarity in any
subjects. Make sure the battery is rechargeable before charging it. Never
rotate the rotary switch under charging as DC 24V has been applied to
charging terminals.
