Keyboard-controller board
Removing the keyboard-controller board
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

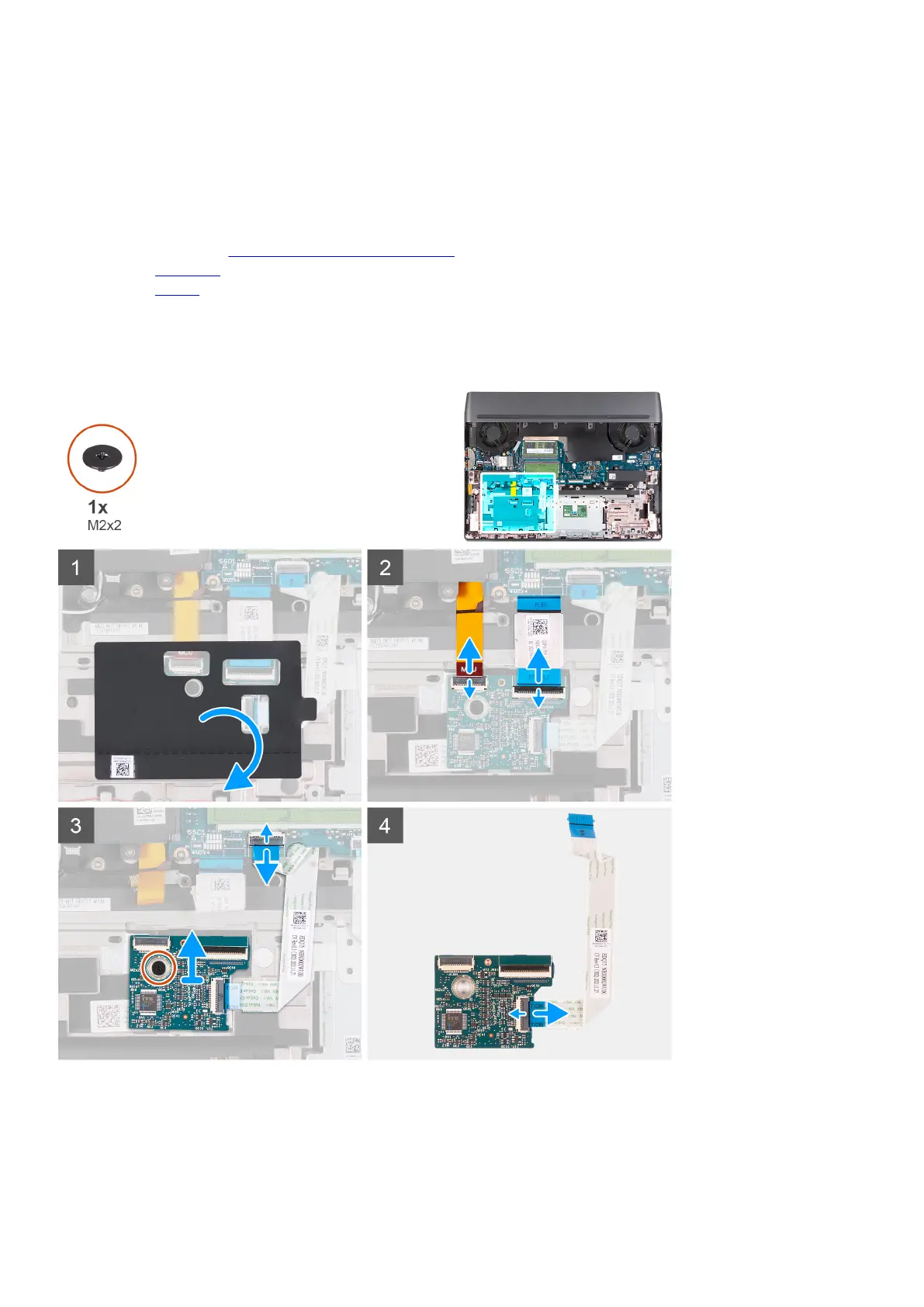

The following image(s) indicate the location of the keyboard-controller board and provides a visual representation of the removal
procedure.
Steps
1. Peel the Mylar on the keyboard-controller board.
2. Open the latch and disconnect the keyboard cable from the keyboard-controller board.
3. Open the latch and disconnect the keyboard-backlight cable from the keyboard-controller board.
49
