Steps

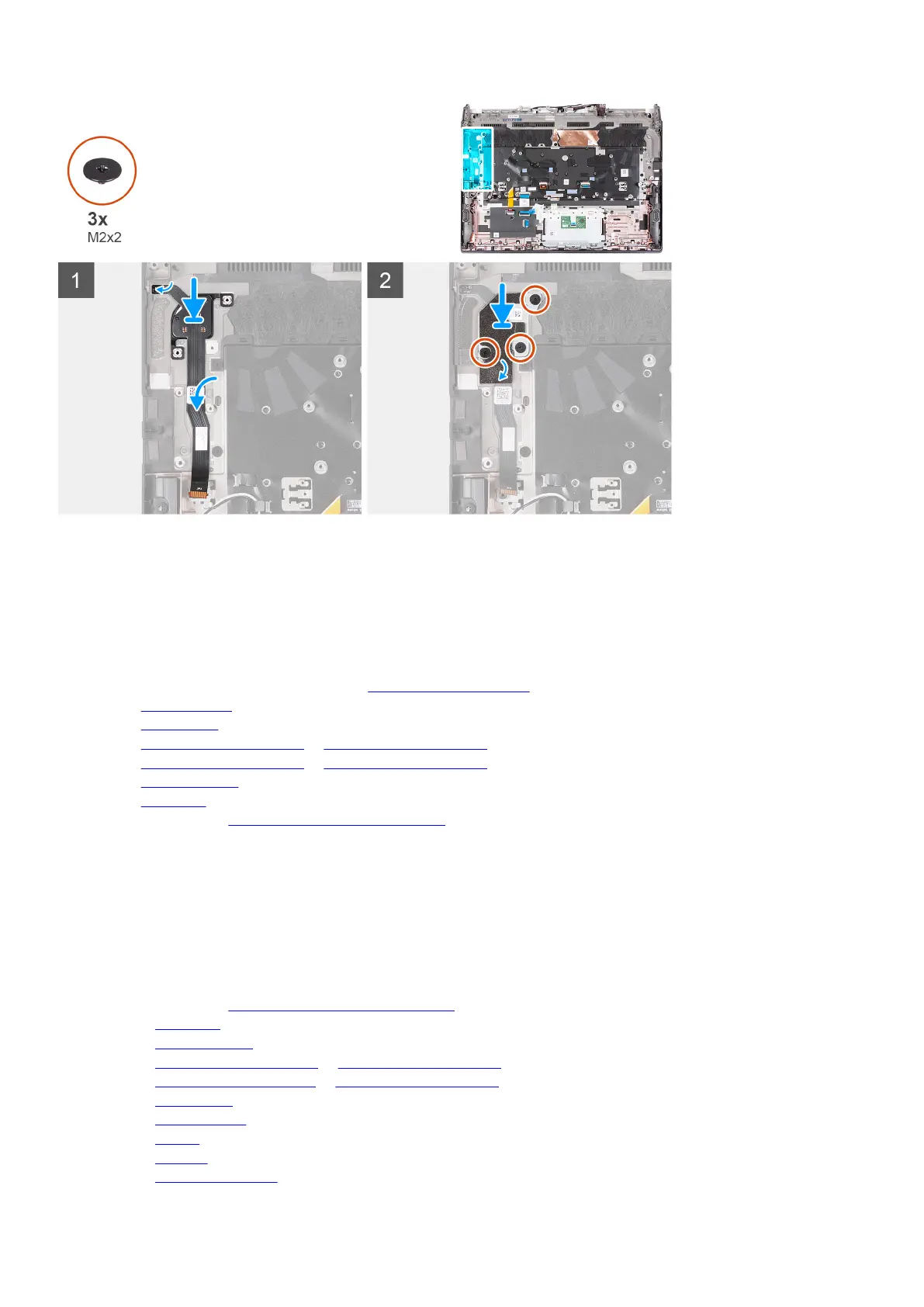

1. Align and place the power button, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Align the screw holes on the power-button bracket with the screw holes on the palm-rest and keyboard assembly.
3. Replace the three screws (M2x2) that secure the power-button bracket to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure from step 6 to step 25 in
Installing the system board.
2. Install the rear-I/O cover.
3. Install the wireless card.
4. Install the
M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot one, whichever applicable.
5. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot two, whichever applicable.
6. Install the memory module.
7. Install the base cover.
8. Follow the procedure in
After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the memory module.
4. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot one, whichever applicable.
5. Remove the M.2 2230 solid state drive or M.2 2280 solid-state drive in slot two, whichever applicable.
6. Remove the wireless card.
7. Remove the rear-I/O cover.
8. Remove the battery.
9. Remove the speakers.
10.Remove the
power-adapter port.
