NOTE: The system board can be removed and installed along with the ethernet and audio board, USB board, and fan and
heat sink-assembly. This simplifies the removal and installation procedure and avoids breaking the thermal bond between the
system board and heat sink.
About this task

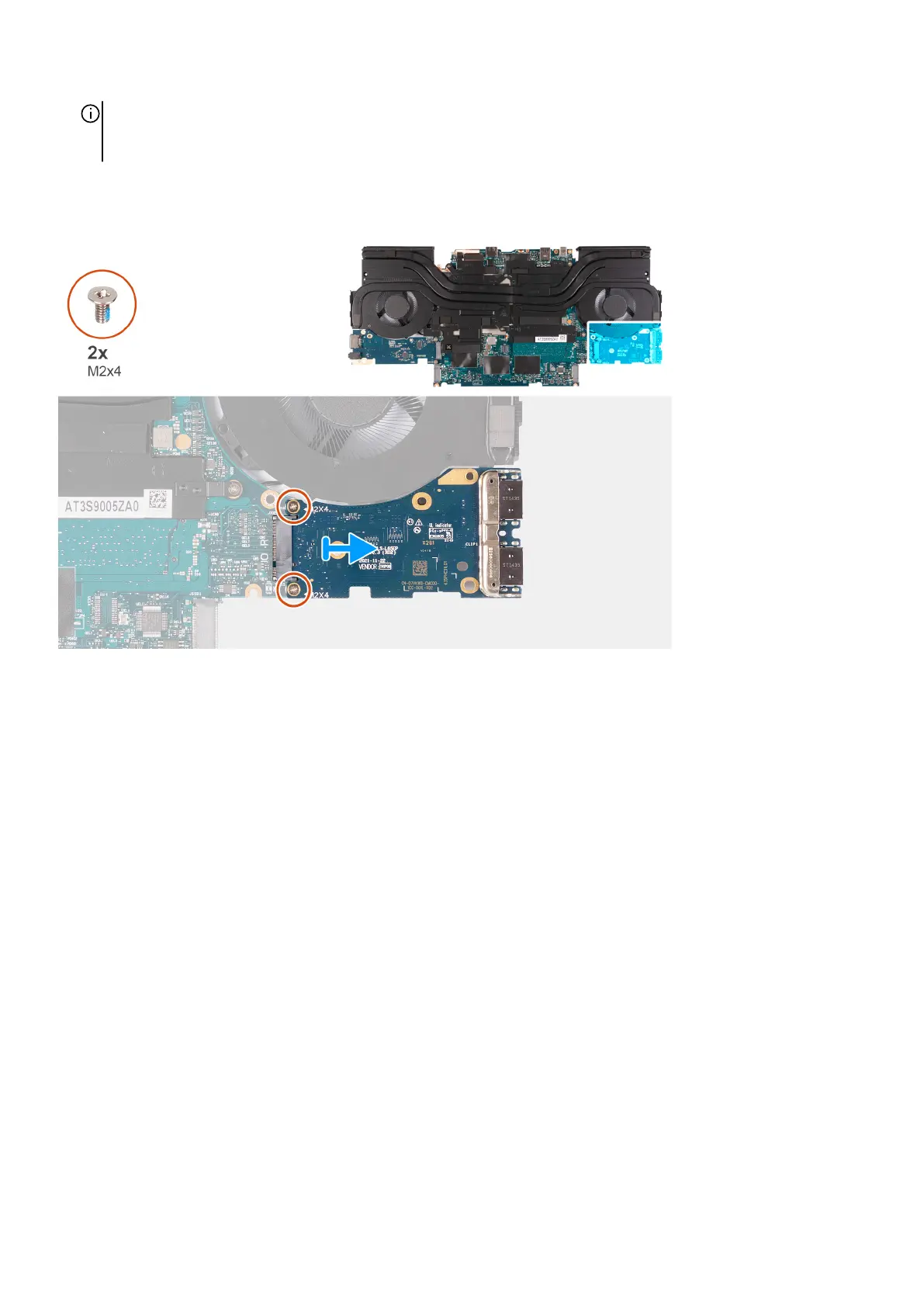

The following image(s) indicate the location of the USB board and provides a visual representation of the removal procedure.
Steps
1. Turn over the system-board assembly.
2. Remove the two screws (M2x4) that secure the USB board to the system-board assembly.
3. Slide and remove the USB board from the system-board assembly.
Installing the USB board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the USB board and provides a visual representation of the installation procedure.
