11. Remove the touchpad.
12. Remove the display assembly.
13. Remove the keyboard-controller board.
14. Follow the procedure from step 1 to step 20 in Removing the system board.
NOTE: The system board can be removed and installed along with the ethernet and audio board, USB board, and fan and
heat sink-assembly. This simplifies the removal and installation procedure and avoids breaking the thermal bond between the
system board and heat sink.
15.Remove the power button.
About this task

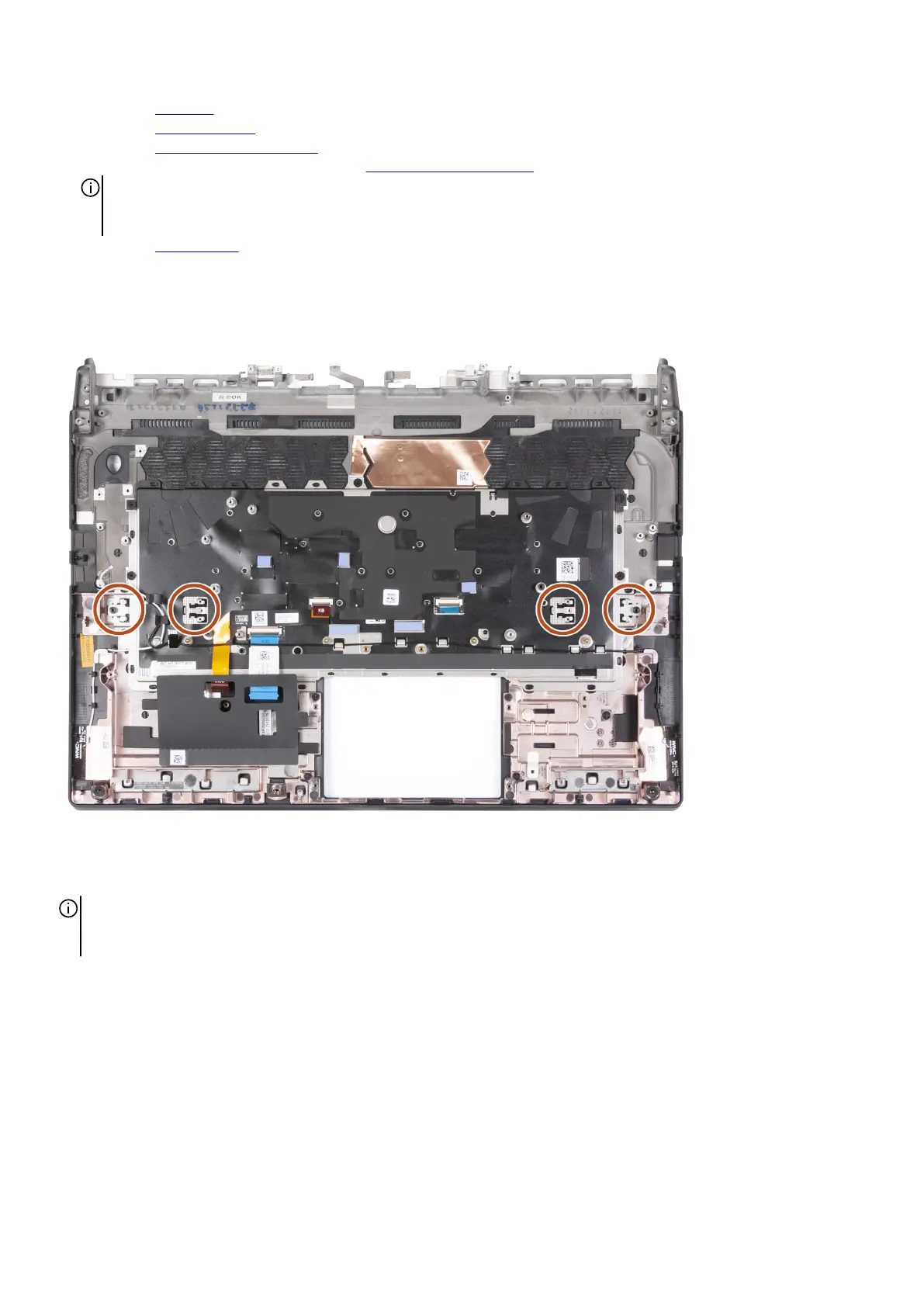

The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
removal procedure.
Steps
After performing the pre-requisites you are left with the palm-rest and keyboard assembly.
NOTE: Ensure that the solid-state drive mounts on slot one and two are removed from the old palm-rest and keyboard
assembly before installing the new palm-rest and keyboard assembly. These solid-state drive mounts will be installed into the
new palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
66
