Steps
1. Disconnect the left-fan cable and right-fan cable from the system board.
2. Turn over the system-board assembly.
3. In reverse sequential order (6>5>4>3>2>1), loosen the six captive screws (M2x4) that secure the fan and heat-sink assembly to
the system board.
4. Lift the fan and heat-sink assembly off the system board.
Installing the fan and heat-sink assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

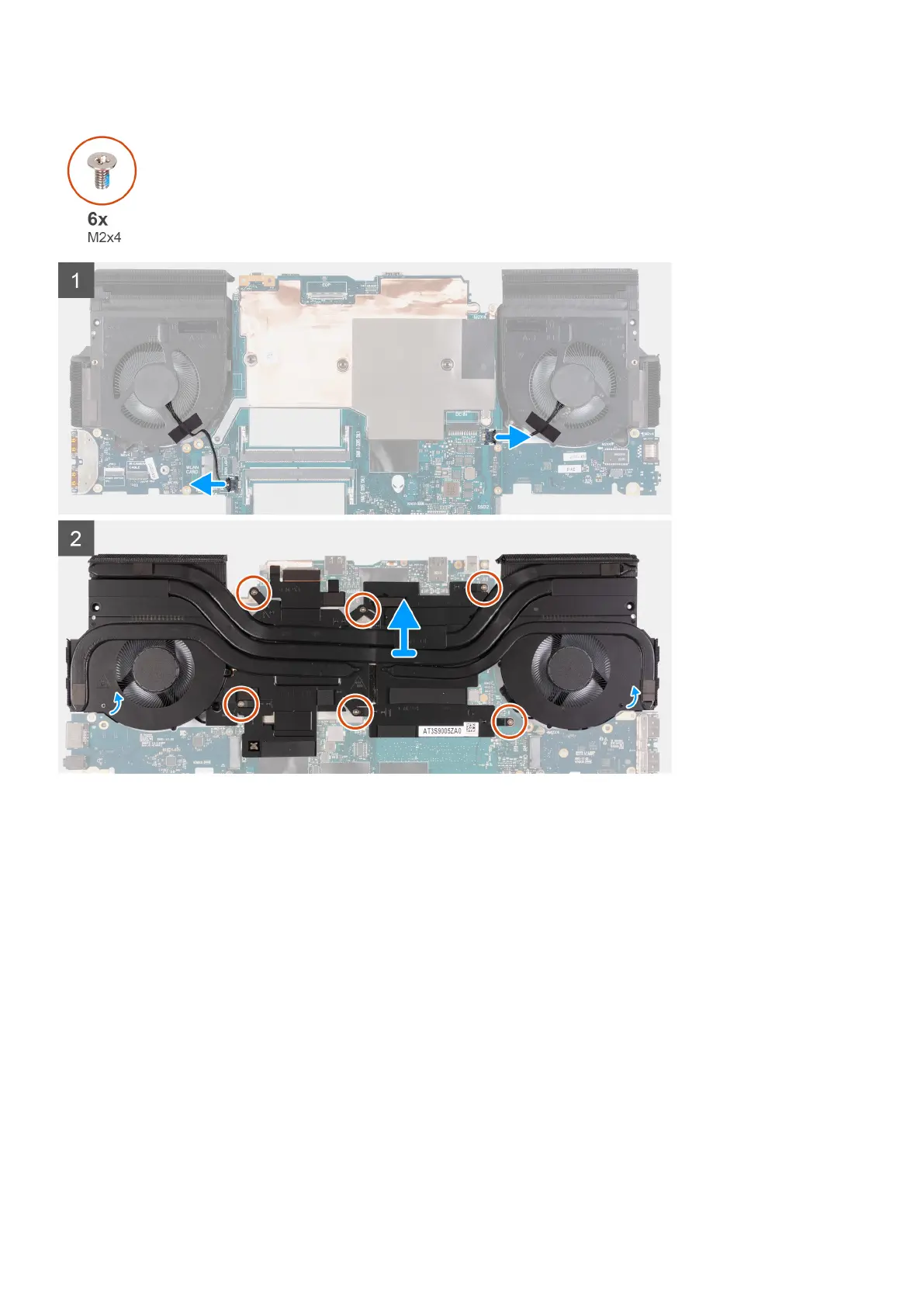

The following image(s) indicate the location of the fan and heat-sink assembly and provides a visual representation of the installation
procedure.
58
