CONTROL (Inserted)

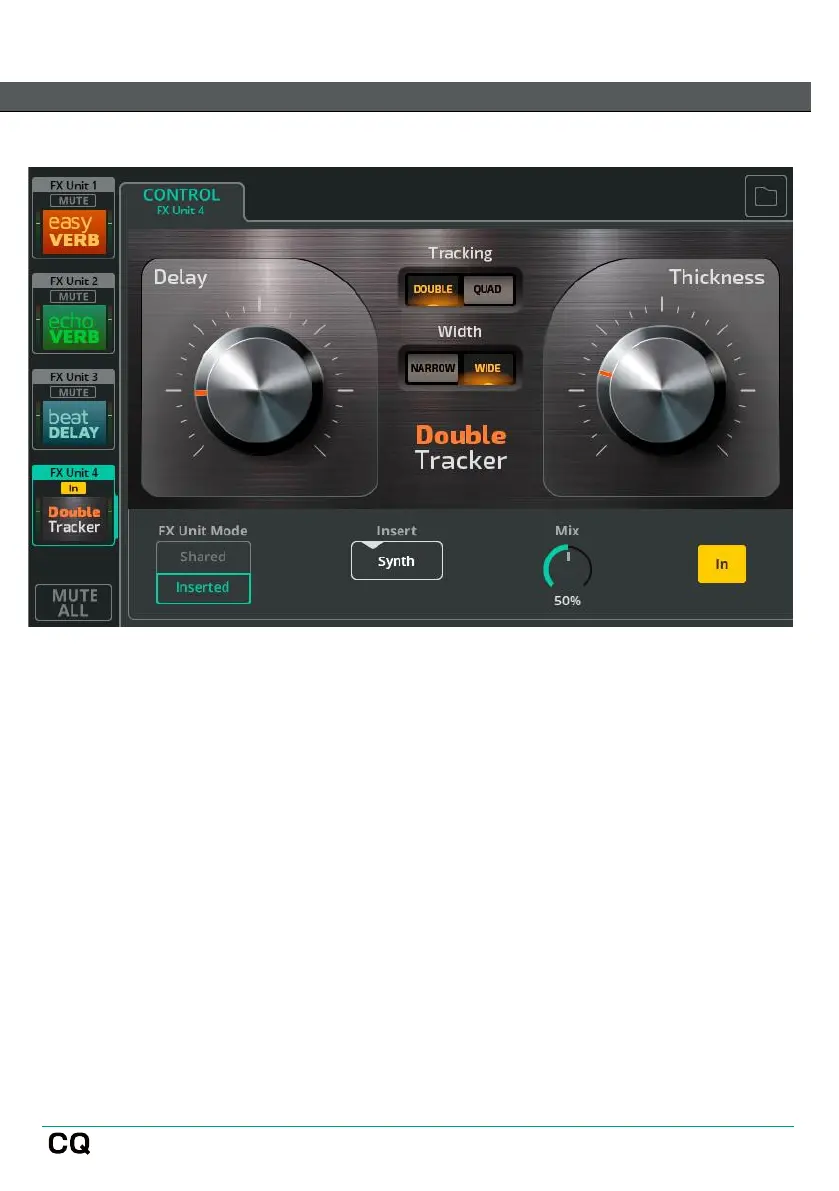

FX Unit Mode – ‘Shared’ allows multiple channels to send signal to the FX Unit
simultaneously, and for the output of the FX Unit to be sent to Main LR, Outputs or
other FX Units at different levels from either the PROCESSING / SENDS screen, or
in the FADER screen. Shared mode is generally used for reverbs and delays.
‘Inserted’ allows the FX Unit to be used in a single input or output channel, to use a
Chorus on a violin for example.
Insert – Select which channel this FX Unit is being used on.
Mix – Adjust the mix from 0% (Dry signal only, no FX audible) to 100% (Wet signal
only, only FX audible)
In/Out – Enable or disable the insert. Note that signal from the channel will still
arrive at the FX unit input when the FX is switched out, but this is not sent back to
the channel so no FX signal will be heard.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
