ALLEN & HEATH CQ-20B User Manual

 62
User Guide V1.1.0 Issue 1

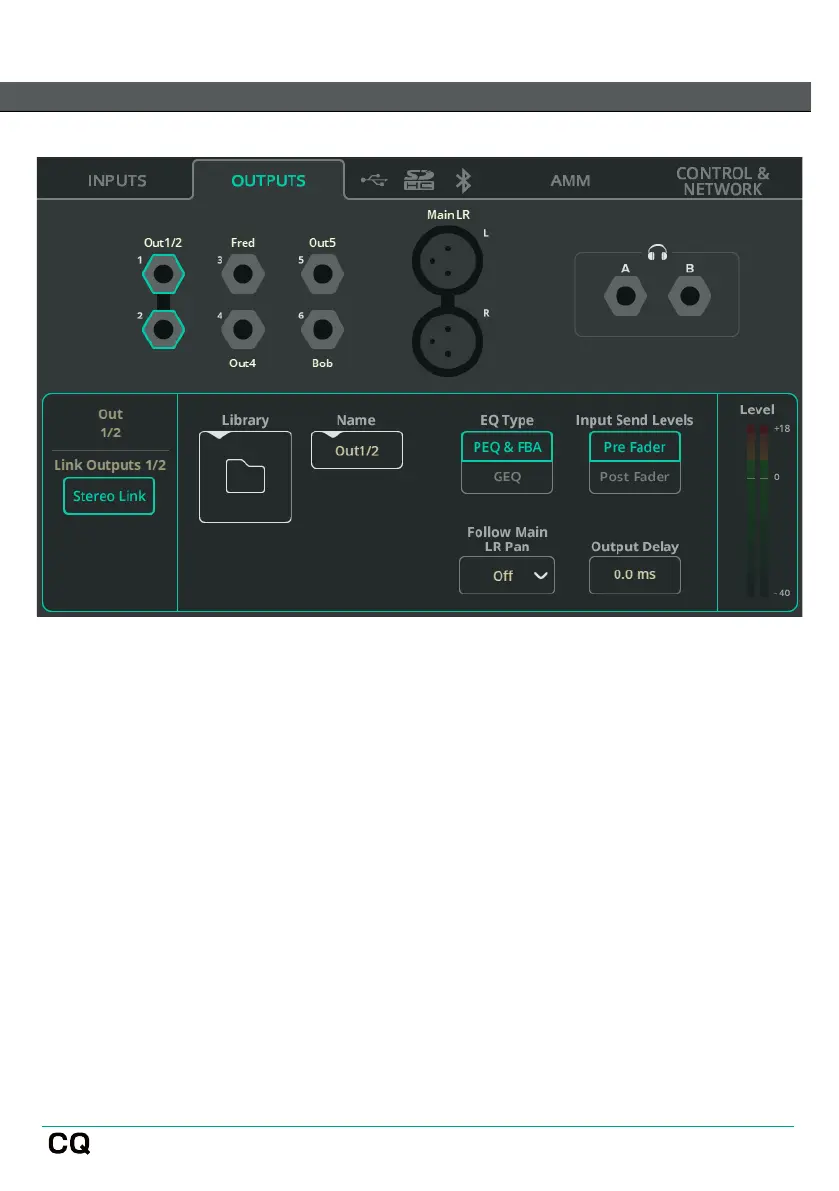

OUTPUTS
Output sockets are shown at the top of the screen, matching the hardware layout.
Touch a socket to select it and display settings for that output/channel at the
bottom.
Stereo Link (Out 1-6 only) – Use odd/even pairs of outputs as a single stereo
channel (odd=left, even=right). When active, all settings and processing apply to
both.
Library – Opens the channel library to store or recall all channel settings, including
Name.
EQ Type – Select either Parametric EQ plus Feedback Assistant or a Graphic EQ
for each output.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
