User Guide V1.1.0 Issue 1
Send signal from Inputs to Outputs 1-6
Prior to sending signal anywhere, preamp gain or trim should be set correctly for
the input source. Follow the How to Use Gain Assistant section for best results.
This ensures optimum signal level coming into the channel for processing, but more
importantly when thinking about sending (routing) signals, changing the preamp
gain or trim also affects the level of signal being sent to any outputs.
 Sends from Inputs to each Out can be set ‘Pre or Post Fader’ in the CONFIG /
OUTPUTS screen. Post Fader means the channel send level to the output depends on
both the set send level to the output and the send level to Main LR. Pre Fader sends
on the other hand, are completely independent and mostly used for monitoring.
 Sends to Outputs 1-6 are sourced Post-PEQ (Pre-Comp) from input channels. This
means that the full dynamic range is heard by performers in monitors, and that the
compressor on each input affects only the Main LR.

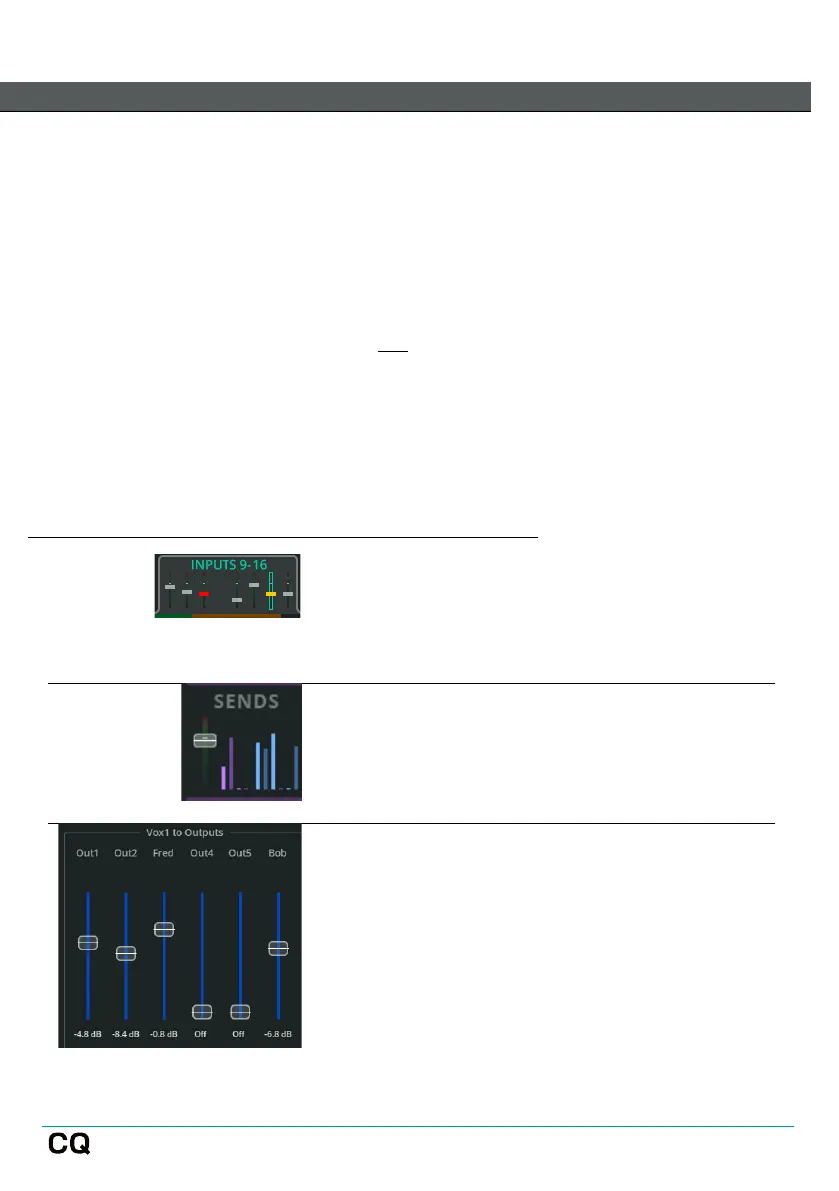

Send one input at a time using the PROCESSING screen
1.
Go to PROCESSING / INPUTS and select
the channel to be sent.
2.
Touch/Click the SENDS section at the
bottom of the channel strip to display and
adjust all send levels for that channel.
3.
Use the blue faders to adjust the send
levels from
Repeat steps 1 and 2 for other inputs as
required.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
