Use Quick Channels
Quick Channels are instrument or source-centric whole channel presets which
allow the user to mix quickly by adjusting multiple parameters with just a few
controls. They are useful for non-technical users who don’t want to get lost in
menus and parameter values, but also for more technical users who need to work
fast but may want to make more in-depth adjustments later.

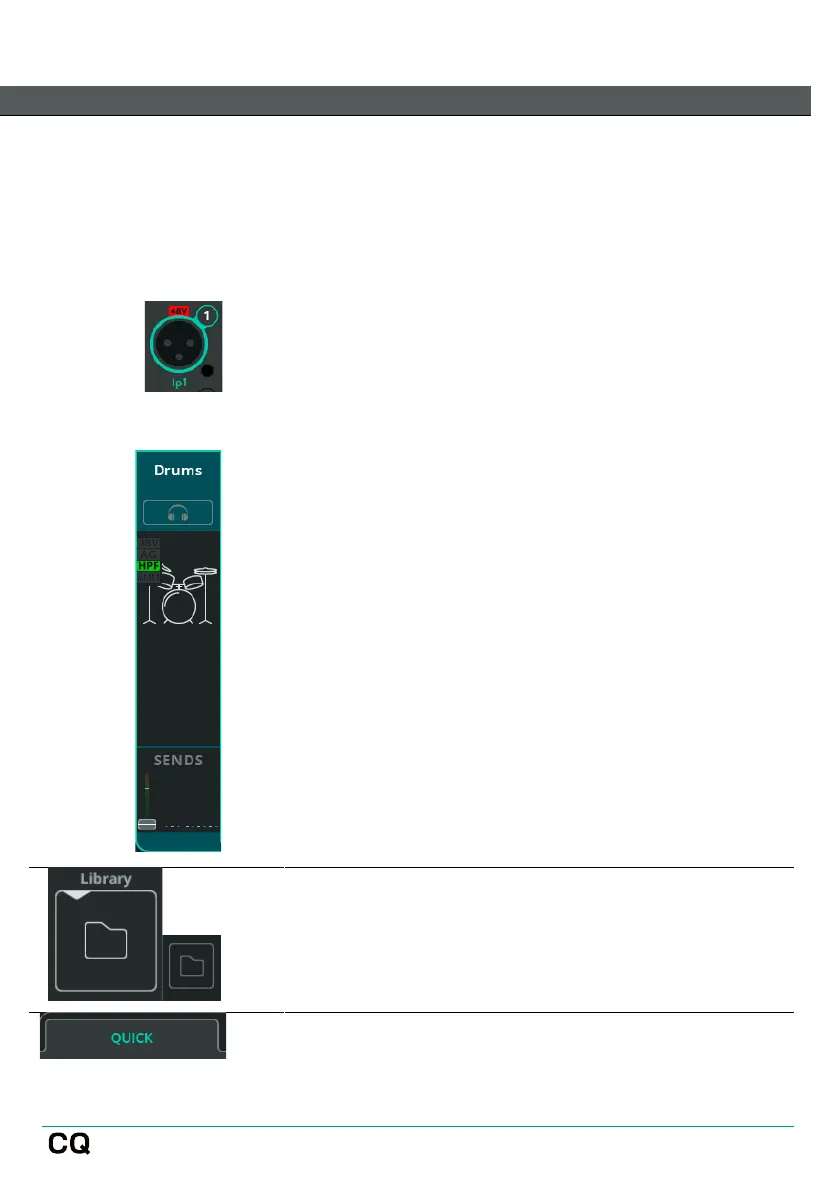

1.
Go to CONFIG / INPUTS and select an input socket.
Settings will appear in the bottom half of the screen.
OR
1.
Go to PROCESSING / INPUTS and select an input
channel in bank view (when multiple channels are
visible).
Be sure to only touch or click once to select a
channel so the screen remains in bank view.
 Recall a channel from the CONFIG screen to include
name/colour and preamp settings. Recall from the
PROCESSING screen to include only the processing
and leave the name/colour and preamp settings as
they were.
2.
Open the Library pop-up with the Library button at
either bottom left (CONFIG), or top right
(PROCESSING).
3.
Select the Quick tab to list only Quick Channels.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
