Sends to an Output

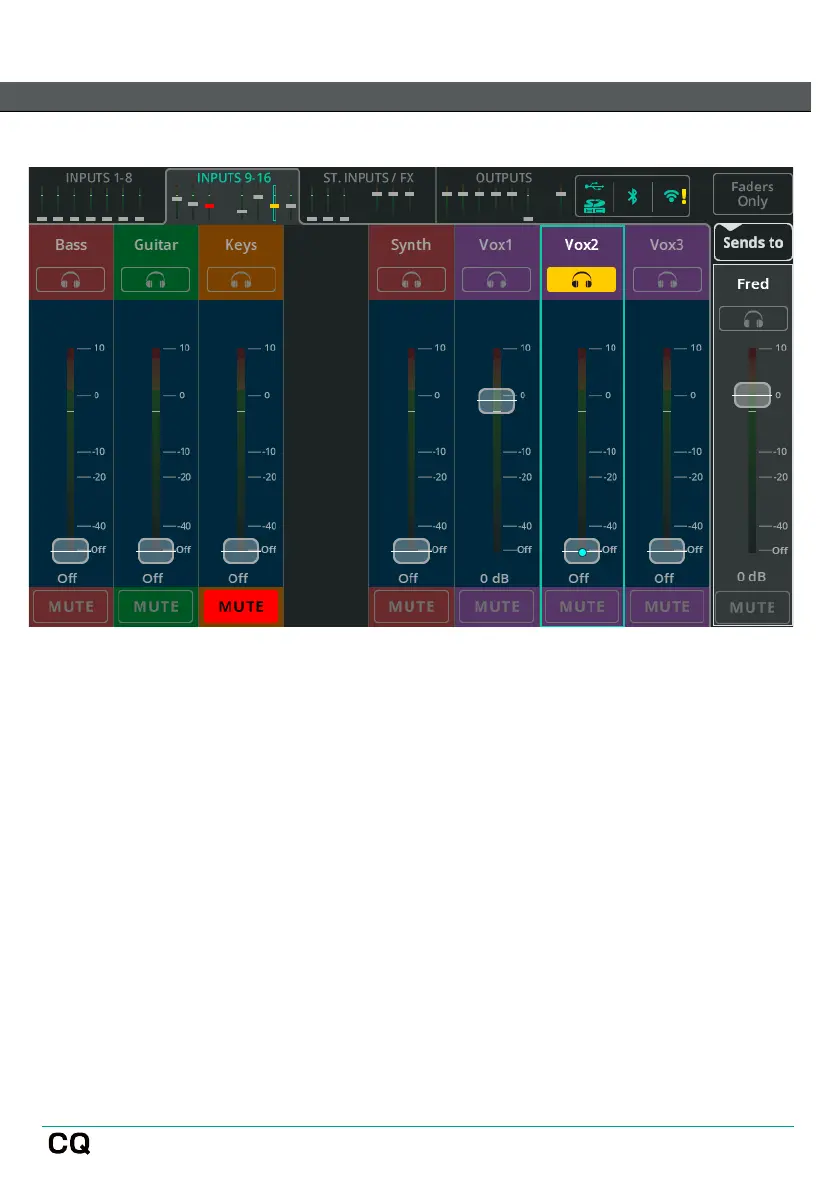

Touch Sends to and select an output to show all send levels to that output on the
fader for each input and FX channel.
With an Output other than Main LR selected, the fader background is coloured blue
to indicate that fader positions are showing the ‘Sends to’ an output other than
Main LR.
 Only FX units in shared mode can be ‘Sent to’ MainLR, an Output or another FX Unit.
 Outputs cannot be sent to other Outputs, so their fader always controls their output
level.
When sending to a stereo output, pan controls are available, though if Follow Main
LR Pan is On for the selected output, the pan value is only displayed and cannot be
adjusted.
The RHS fader is used to control the overall send, or output level. This is a
duplicate of the output channel fader in the OUTPUTS bank view.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
