OUTPUT / LEVEL and LIMITER

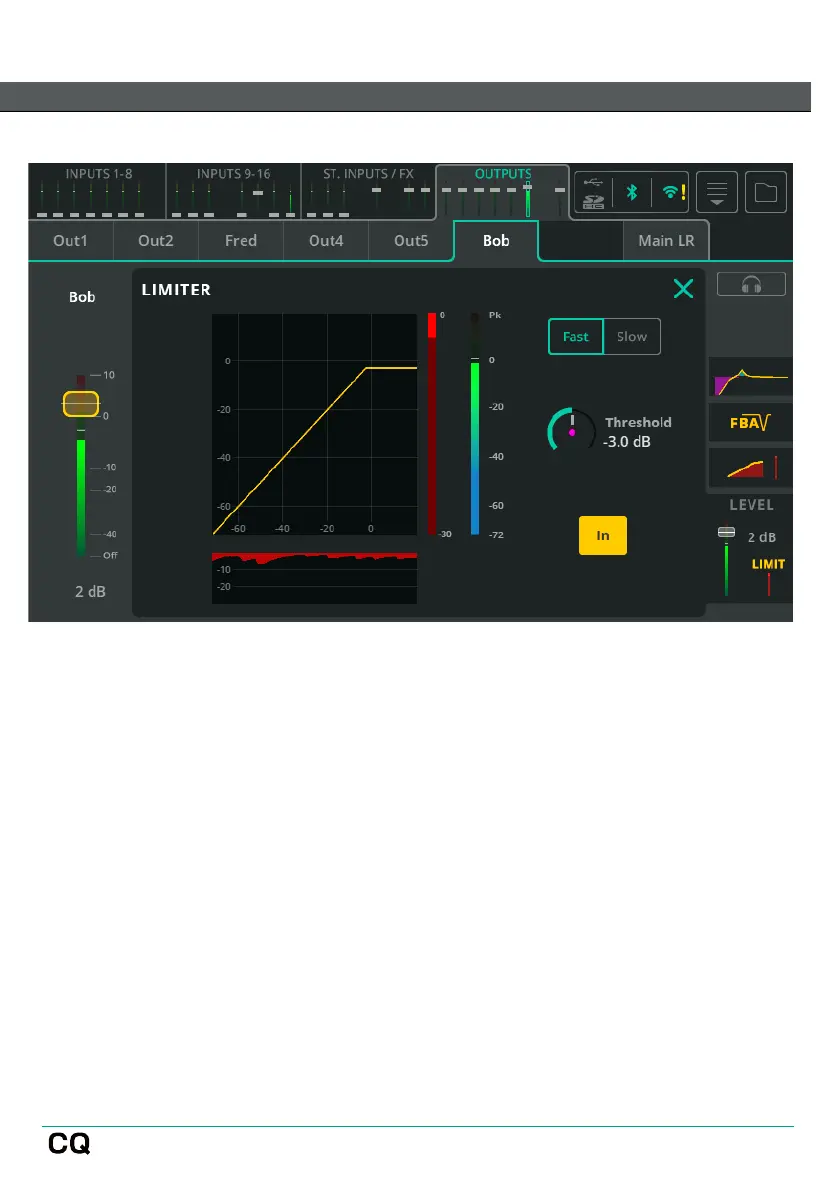

A Limiter works like a very fast compressor with an infinite:1 compression ratio and
limits the output level to whatever is set by the threshold.
In CQ, the limiter is applied post fader, meaning that it can be set for use on an
output for monitoring and prevent the output signal rising above a set level, even if
the output level fader is adjusted by a musician using CQ4You for example.
Fast/Slow – Select the speed of the Limiter on the signal.
Threshold – Set the level when the limiter will be triggered (effectively maximum
output level).
In/Out – Enable or disable the Limiter.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
