ALLEN & HEATH CQ-20B User Manual

 14
User Guide V1.1.0 Issue 1

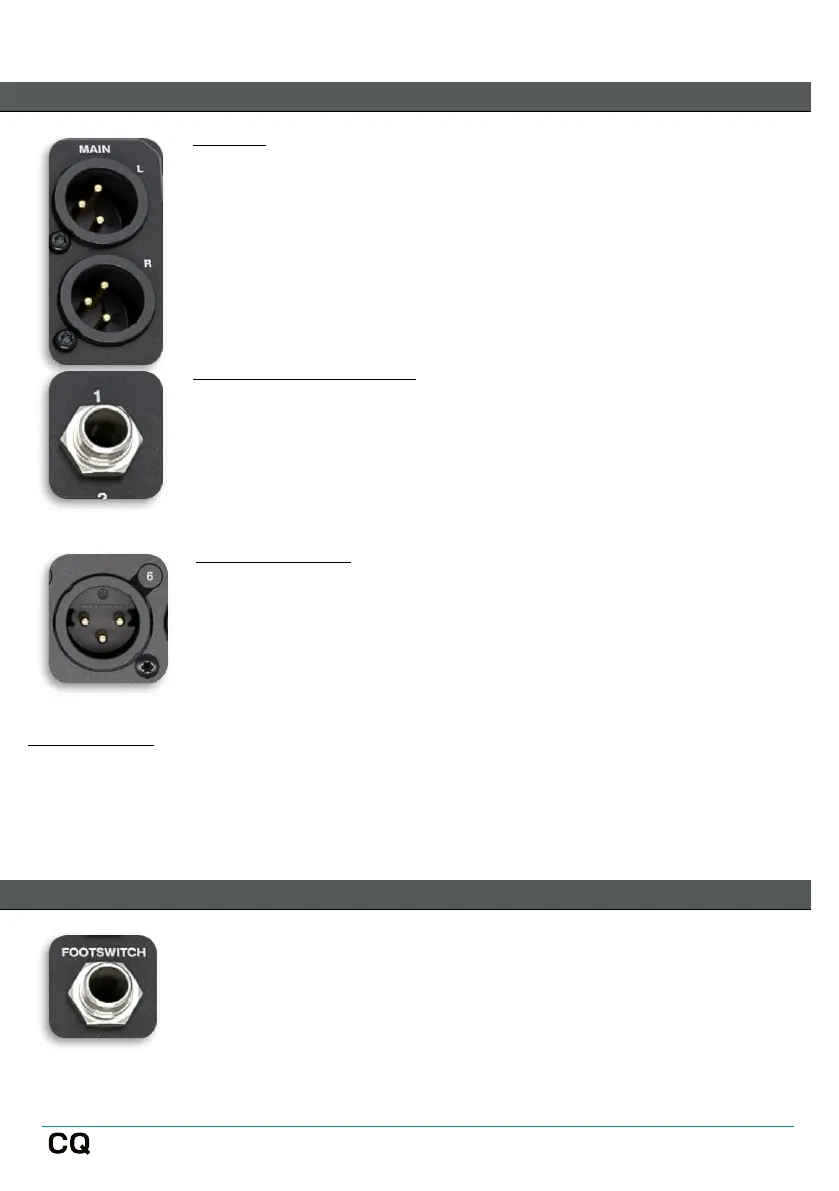

2. Outputs
Main LR
Balanced XLR (1-Ground, 2-Hot/Positive, 3-Cold/Negative)
Nominal +4dBu output (when output meter displays 0dB)
Out 1-6 (CQ-12T, CQ-18T)
Balanced ¼” TRS Jack (Tip-Hot/Positive, Ring-Cold/Negative,
Sleeve-Ground)
Nominal +4dBu output (when output meter displays 0dB)
Out 1-6 (CQ-20B)
Balanced XLR (Pin1-Ground, Pin2-Hot/Positive, Pin3-
Cold/Negative)
Nominal +4dBu output (when output meter displays 0dB)
Headphone/s
Stereo ¼” TRS Jack (Tip-Left, Ring-Right, Sleeve-Ground)
Recallable digital trim control.
3. Footswitch
Mono (TS) or Dual (TRS) ¼” Jack
Can be calibrated for use with momentary or latching switches.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
