OUTPUT / PEQ

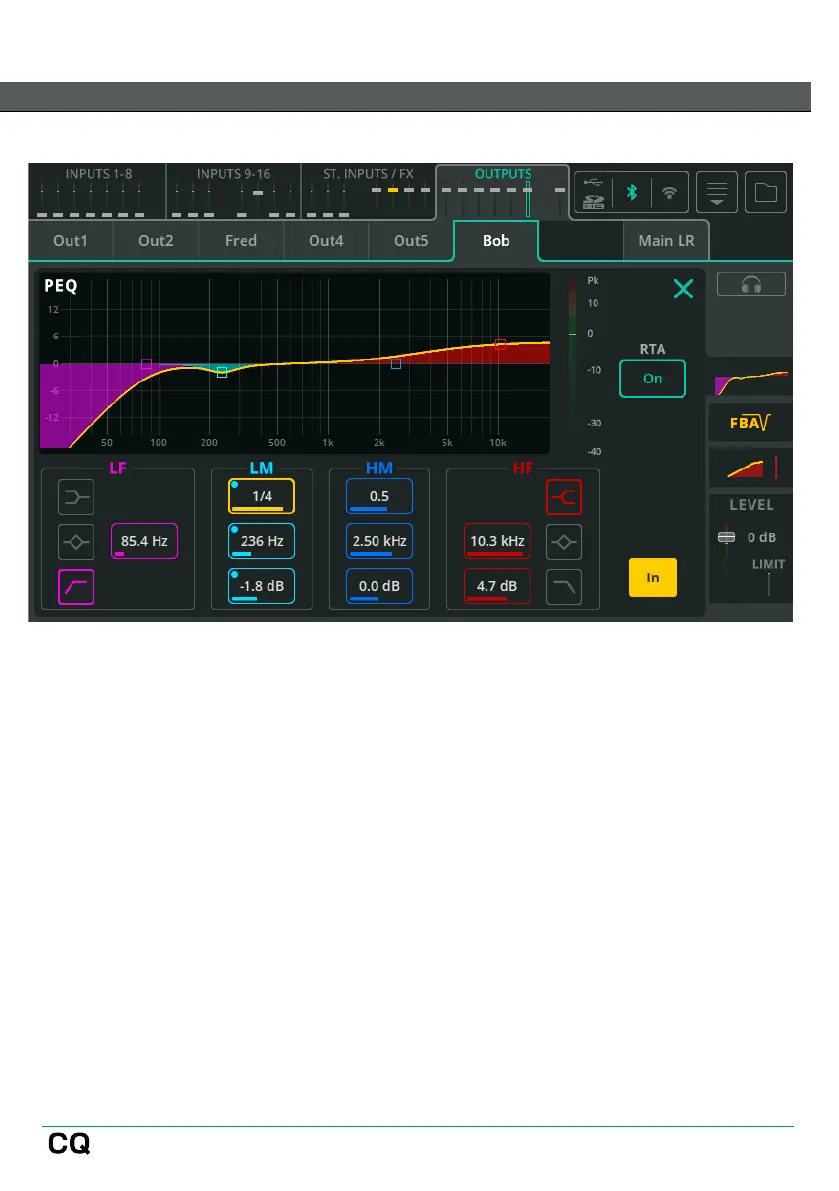

The 4-band Parametric Equaliser enables adjustments to the tone of the signal by
cutting or boosting around different frequencies.
Type – LF and HF bands include options for Shelf, Bell or HPF/LPF.
Width – Adjust the amount that frequencies around the centre frequency are
affected.
Frequency – Select the centre frequency for adjustment.
Gain – Cut or boost the selected centre frequency by up to +/- 15dB
RTA – Display Real Time Analyser behind PEQ.
In/Out – Enable or disable the PEQ.

ALLEN & HEATH CQ-20B Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	24 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Nominal input level	17 dBu
Output impedance	75 Ω
Total Harmonic Distortion (THD)	0.002 %
Built-in display	-
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Bluetooth version	4.1
XLR out	8
RJ-45 ports quantity	1
USB 2.0 ports quantity	2
Number of microphone inputs	20
Rack capacity	19U
USB connector type	USB Type-A, USB Type-B
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W

Weight and Dimensions

Depth	154 mm
Width	372 mm
Height	134 mm
Weight	2600 g
Package type	Box
Package depth	260 mm
Package width	450 mm
Package height	250 mm
Package weight	3300 g
