FX Model - Double Tracker

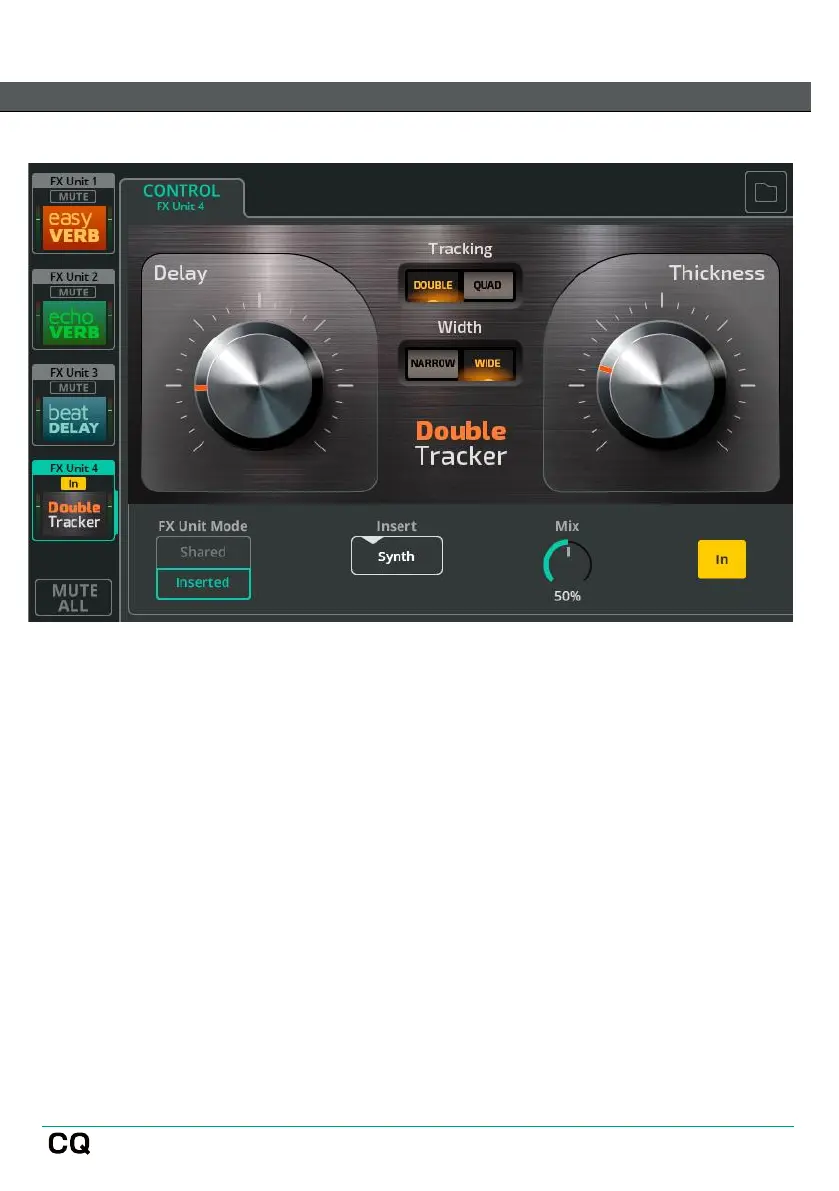

The Double Tracker recreates the classic studio effect of recording (or ‘tracking’)
the same source multiple times, where slight differences in each recording result in
a bigger, thicker sound.
Delay – Adjust the amount of delay between virtual take.
Thickness – Adjust how thick the resulting sound is.
Tracking – Select from DOUBLE (recorded twice) or QUAD (recorded four times)
Width - Select from NARROW (virtual takes are mostly in the centre) or WIDE
(different virtual takes are panned left or right).
 Width has no effect if Double Tracker is inserted into a mono channel.
