Allen & Heath 20 XB-14 User Guide
OO 10
-30
-20
-5
0
5
-10
ST2
1/2
-30
-20
-5
5
0
OO
-10
10
-15 +15
12kHz
HF
-15 +15
80Hz
LF
ST1
ST2
L
R
ST1
L/M
R
OO +6
PRE
ST1
ST2
AUX

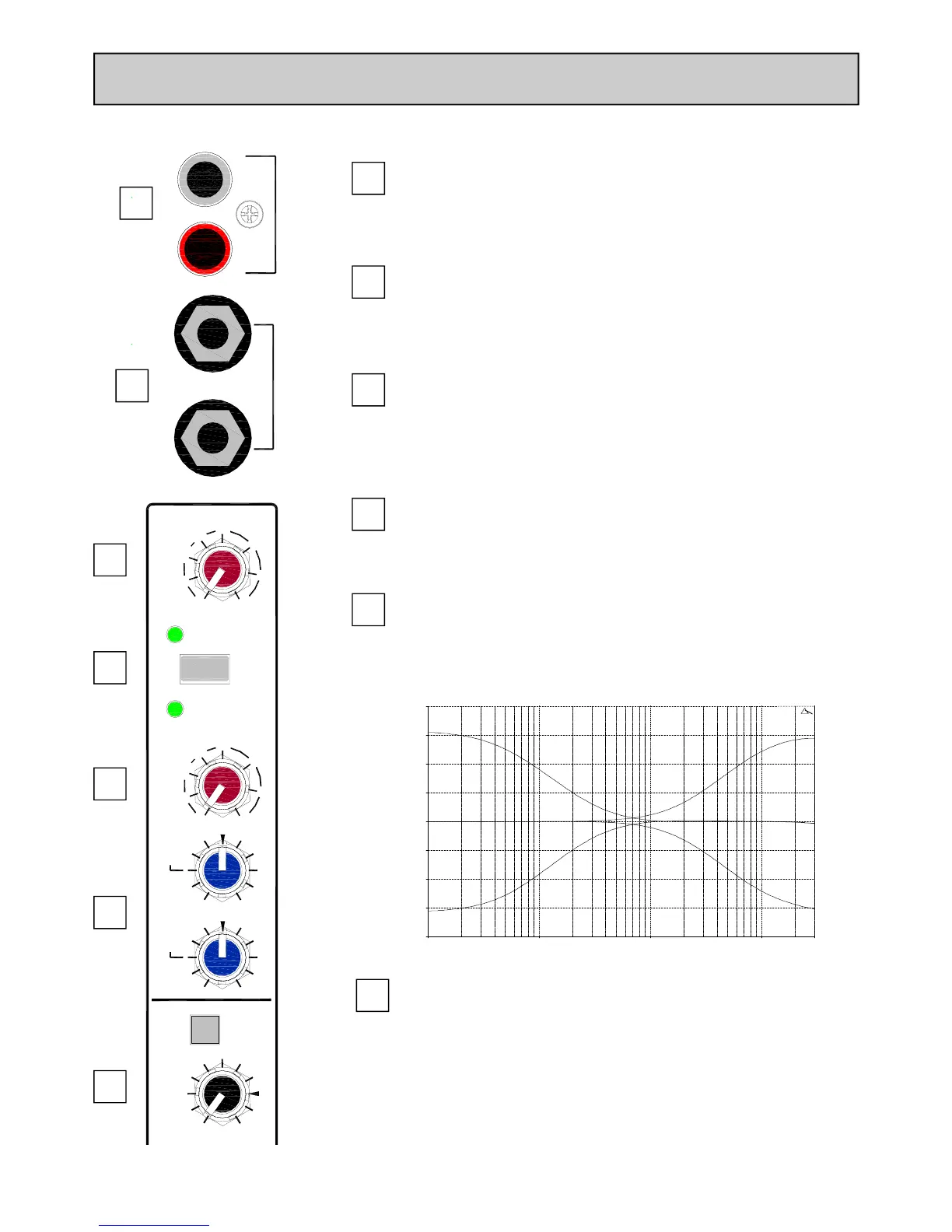

STEREO INPUT CHANNELS ST1 & ST2
1
ST1Inputs
Standard 1/4” jack sockets for input signals to ST1 L & R inputs.
Wired Tip=Hot(+), Ring=cold (-), Sleeve=Chassis.
Fully balanced. Nominal input level = 0dBu.
2
ST2 Inputs
Standard RCA phono sockets for ST2 L & R inputs.
Unbalanced. Nominal input level = 0dBu.
1
2
3
Stereo source selector switch
Selects either ST1 or ST2 stereo inputs to the stereo channel ST1.
Allows the user to select between multiple stereo sources connected to
the XB-14.
A green LED will illuminate to show which input is selected.
3
FOR CLARITY ONLY ST1 CHANNEL IS DESCRIBED HERE
4
Stereo input level controls
For adjustment of the stereo input levels from fully attenuated to +10dB
of gain.
4
4
5
Stereo channel EQ
The stereo channel EQ is 2 band with corner frequencies of 12kHz for
the HF and 80Hz for the LF.
10.00 Hz 100.00 1000.00 10000.00 30000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
5
6
AUX
This control sends a signal to an auxiliary bus. The signal is sourced pre-
fade or post-fade depending on the PRE switch position and is a com-
bined sum of the left and right stereo signals. The pre-fade source selec-
tion will be affected by the channel ON/OFF switch if active. The send
control varies the signal level to the bus from off (fully attenuated) to
+6dB, with unity gain at the arrow.
6
