ALLEN & HEATH XB-14 User Manual

Allen & Heath 30 XB-14 User Guide

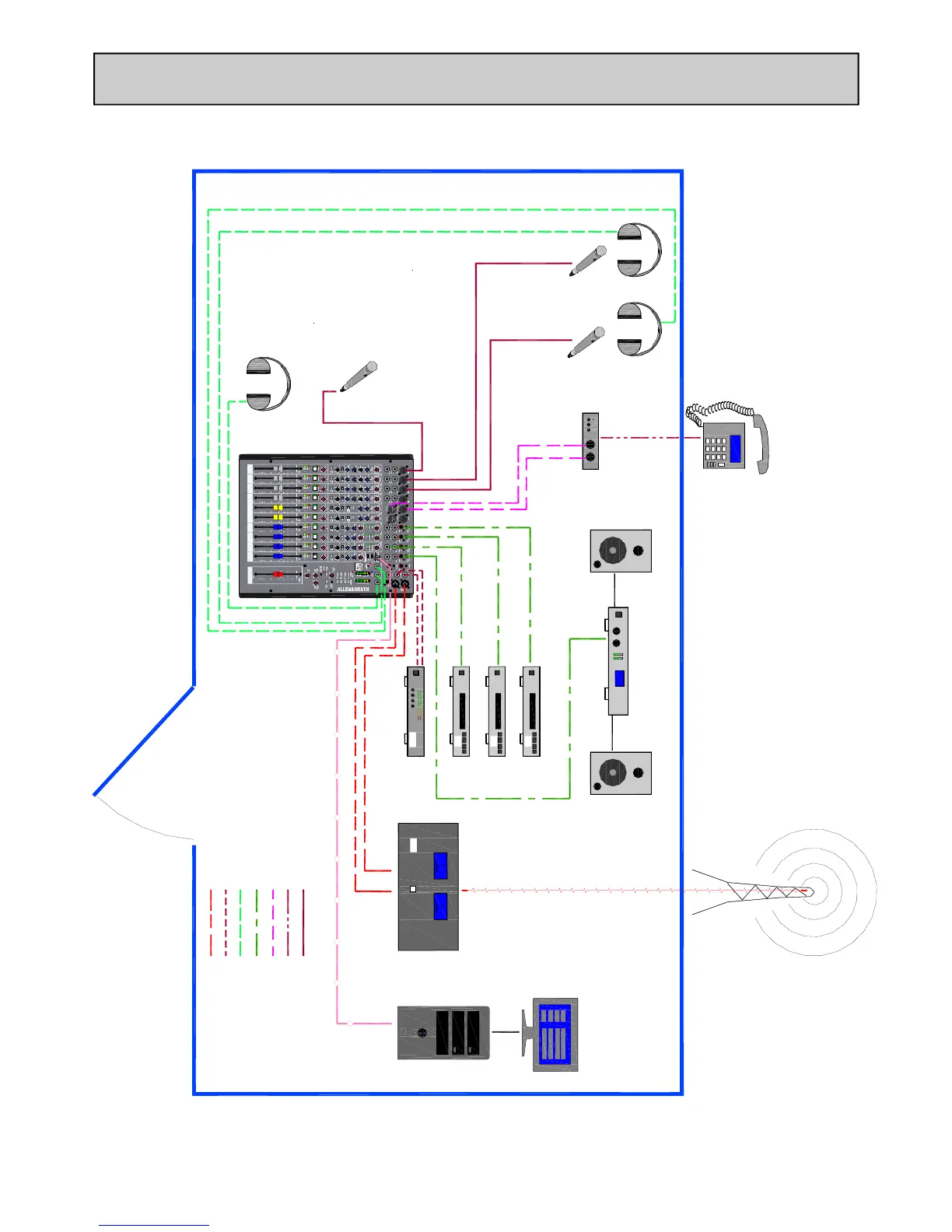

APPLICATION DIAGRAM: SELF OPERATION
Amp
CD
Jingle
CD
TX 1
Operator
Guests
Telephone
Hybrid Module
Telephone caller
Control Room
Monitor Speakers
Music sources
Broadcast
Transmission
Method
KEY
Microphone signals to mono inputs
Telephone line in (or exchange)
Line level to/from telephone module Line level stereo signals Headphone signals Program mix for transmission
Sound sources
Single room Self Operation System
Ensure FADER UP = CUT SPKS switch is enabled to avoid feedback from CRMs Notes:
The Telephone module could be substituted with a Skype system.
Limit
PGM inserts to limiter
Compressor/Limiter
OR

ALLEN & HEATH XB-14 Specifications

Operating Levels

Mono channel Mic input range	+6 to –63dBu
Mono channel Line input range	+10 to –26dBu
Insert point nominal level	0dBu
Stereo input nominal level	0dBu
Telco channel input range	+10 to –26dBu
External monitor inputs nominal level	0dBu

Output Levels

PGM L & R outputs nominal level	+4dBu
PGM Mono output nominal level	0dBu
PGM L & R inserts nominal level	-2dBu
Aux output nominal level	0dBu
Mix B outputs nominal level	0dBu
Rec outputs nominal level	0dBu

Audio Performance

THD+n Mic in to PGM L/R Out	0.003%
THD+n Mic in to PGM Out	0.007%
THD+n Line in to PGM L/R out	0.004%
THD+n Stereo in to PGM out	0.003%
Noise Mic Pre EIN	-127dBu
Noise PGM out	-92dBu

Frequency Response

Mic in to PGM L/R Out	20Hz to 20kHz
Line in to PGM L/R out	10Hz to 30kHz
Stereo in to PGM L/R out	10Hz to 30kHz

Headroom

Analogue Headroom Outputs	21dB
USB in & out headroom	14dB
Analogue Headroom Mix point	24dB

Crosstalk & Attenuation

Mono fader attenuation 1kHz/10kHz	-99/-90
Mono ON switch attenuation 1kHz/10kHz	-96/-80
TELCO fader attenuation 1kHz/10kHz	-99/-92
TELCO ON switch attenuation 1kHz/10kHz	-102/-100
Stereo fader attenuation 1kHz/10kHz	-100/-91
Stereo ON switch attenuation 1kHz/10kHz	-102/-102
