ALLEN & HEATH XB-14 User Manual

FIXING TO A RACK OR FURNITURE
The XB-14 can be fitted to a 19” rack or incorporated into studio furniture using the optional 19” rack fixing kit.

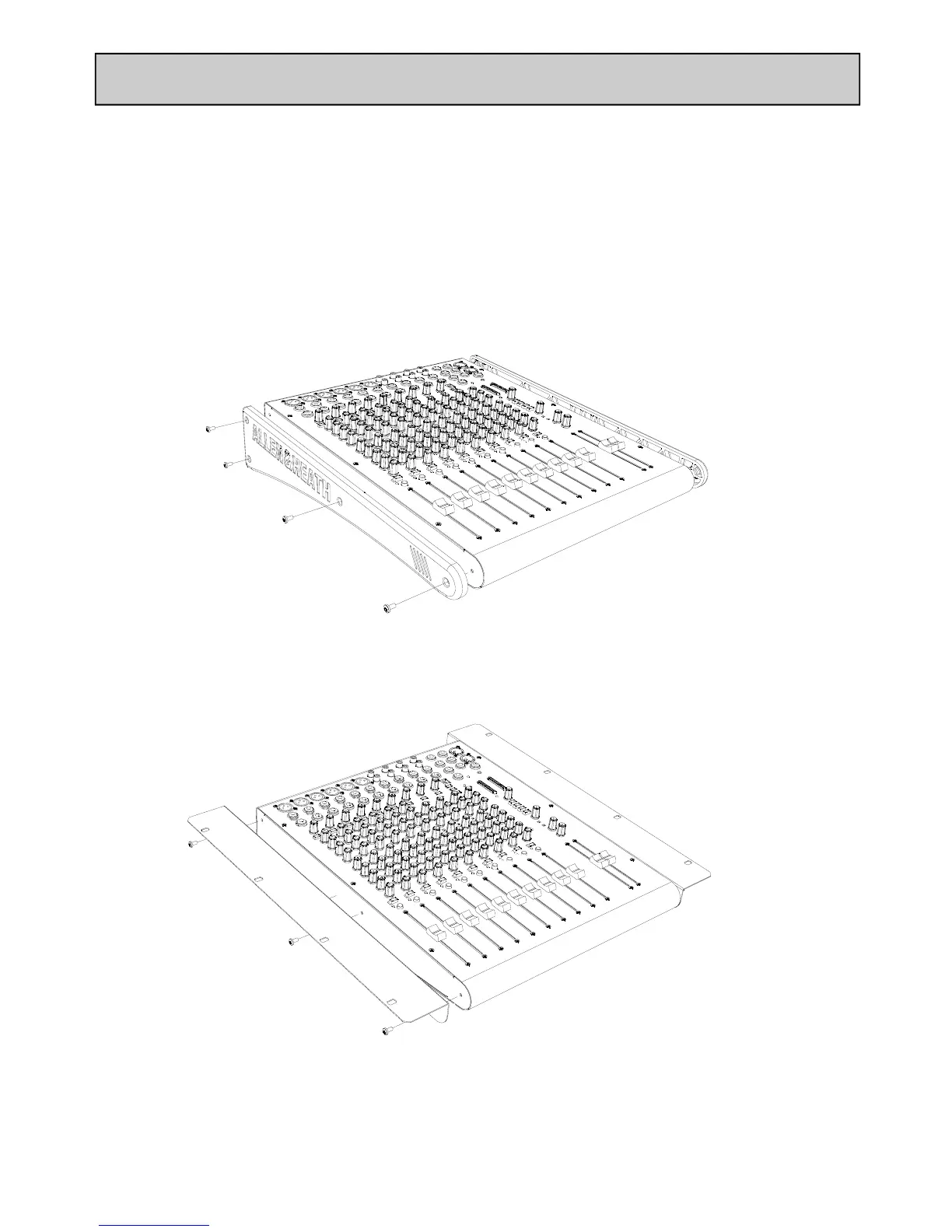

The following pictures give you an idea of how the rack fixing kit is fitted to the XB-14.
Should you decide to purchase the kit, please follow the fitting instructions provided with the kit.
The rack mounting kit part number is: ZED1402-RK19

ALLEN & HEATH XB-14 Specifications

Operating Levels

Mono channel Mic input range	+6 to –63dBu
Mono channel Line input range	+10 to –26dBu
Insert point nominal level	0dBu
Stereo input nominal level	0dBu
Telco channel input range	+10 to –26dBu
External monitor inputs nominal level	0dBu

Output Levels

PGM L & R outputs nominal level	+4dBu
PGM Mono output nominal level	0dBu
PGM L & R inserts nominal level	-2dBu
Aux output nominal level	0dBu
Mix B outputs nominal level	0dBu
Rec outputs nominal level	0dBu

Audio Performance

THD+n Mic in to PGM L/R Out	0.003%
THD+n Mic in to PGM Out	0.007%
THD+n Line in to PGM L/R out	0.004%
THD+n Stereo in to PGM out	0.003%
Noise Mic Pre EIN	-127dBu
Noise PGM out	-92dBu

Frequency Response

Mic in to PGM L/R Out	20Hz to 20kHz
Line in to PGM L/R out	10Hz to 30kHz
Stereo in to PGM L/R out	10Hz to 30kHz

Headroom

Analogue Headroom Outputs	21dB
USB in & out headroom	14dB
Analogue Headroom Mix point	24dB

Crosstalk & Attenuation

Mono fader attenuation 1kHz/10kHz	-99/-90
Mono ON switch attenuation 1kHz/10kHz	-96/-80
TELCO fader attenuation 1kHz/10kHz	-99/-92
TELCO ON switch attenuation 1kHz/10kHz	-102/-100
Stereo fader attenuation 1kHz/10kHz	-100/-91
Stereo ON switch attenuation 1kHz/10kHz	-102/-102
