84 Rockwell Automation Publication 1734-UM013N-EN-P - September 2017
Chapter 5 Configure the Module in a GuardLogix Controller System
Add and Configure Safety
Digital Input Modules
To include a safety digital input module in the project, you add the module under
the I/O chassis in the I/O Configuration tree. Then configure the general
properties of the module, configure the digital inputs, and configure test outputs
as described in the following sections.
Add the Safety Digital Input Module
To add the POINT Guard I/O safety digital input module, follow these steps.

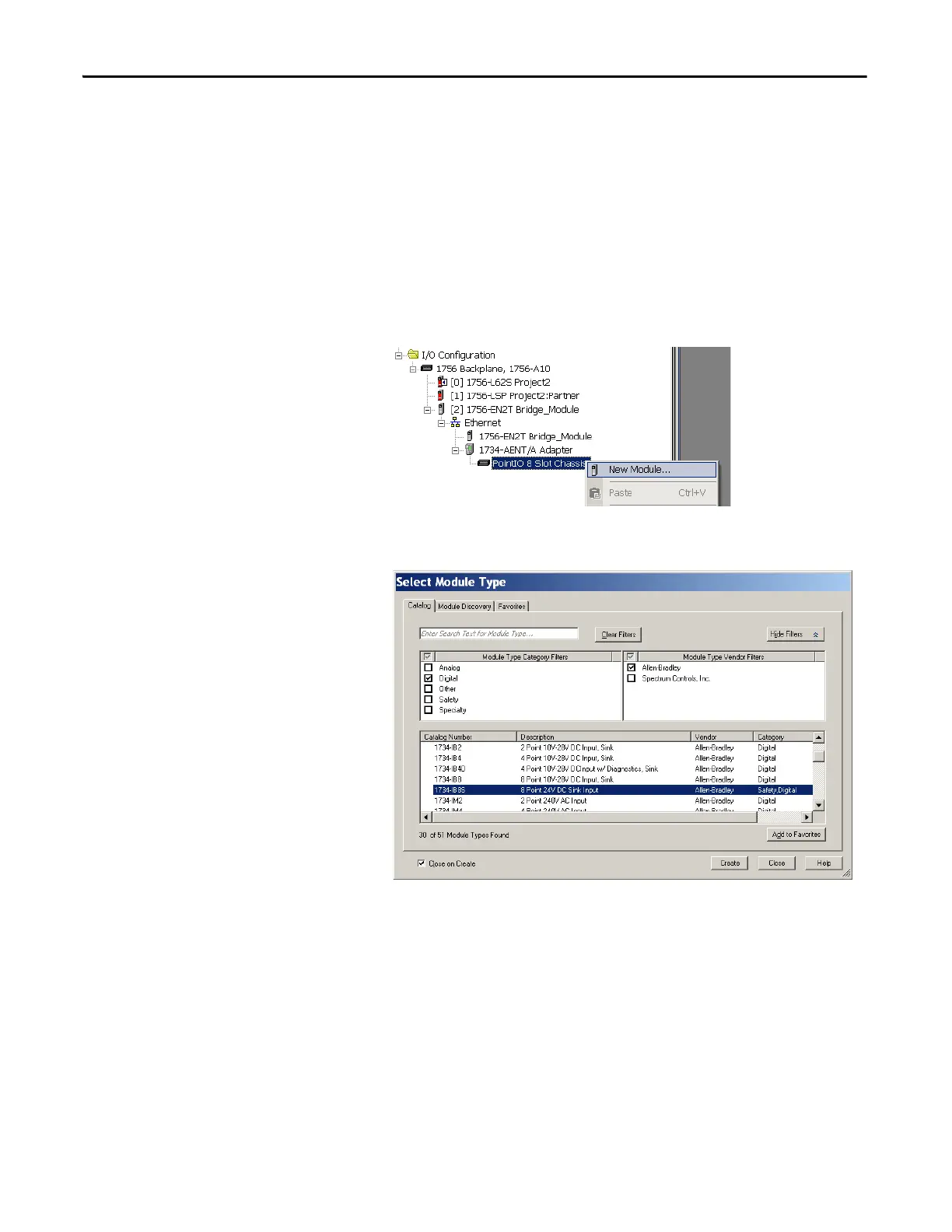

1. Right-click the POINT I/O Chassis and choose New Module.
2. From the Select Module dialog box, check Digital and Allen-Bradley.
3. Select an input module and click Create.
