14 Rockwell Automation Publication 2100-IN012G-EN-P - August 2016
Chapter 1 General Information
Each plug-in and frame mounted unit also has an identification label. The unit
label is on the interior of the bottom plate of plug-in units or on the interior
right-hand side plate of the frame mounted units. The unit label for each plug-
in or frame mounted unit includes the following information:
Catalog number/serial number
Series letter of the unit
Voltage rating
•Unit location
UL and cUL certification marking
Device type and size

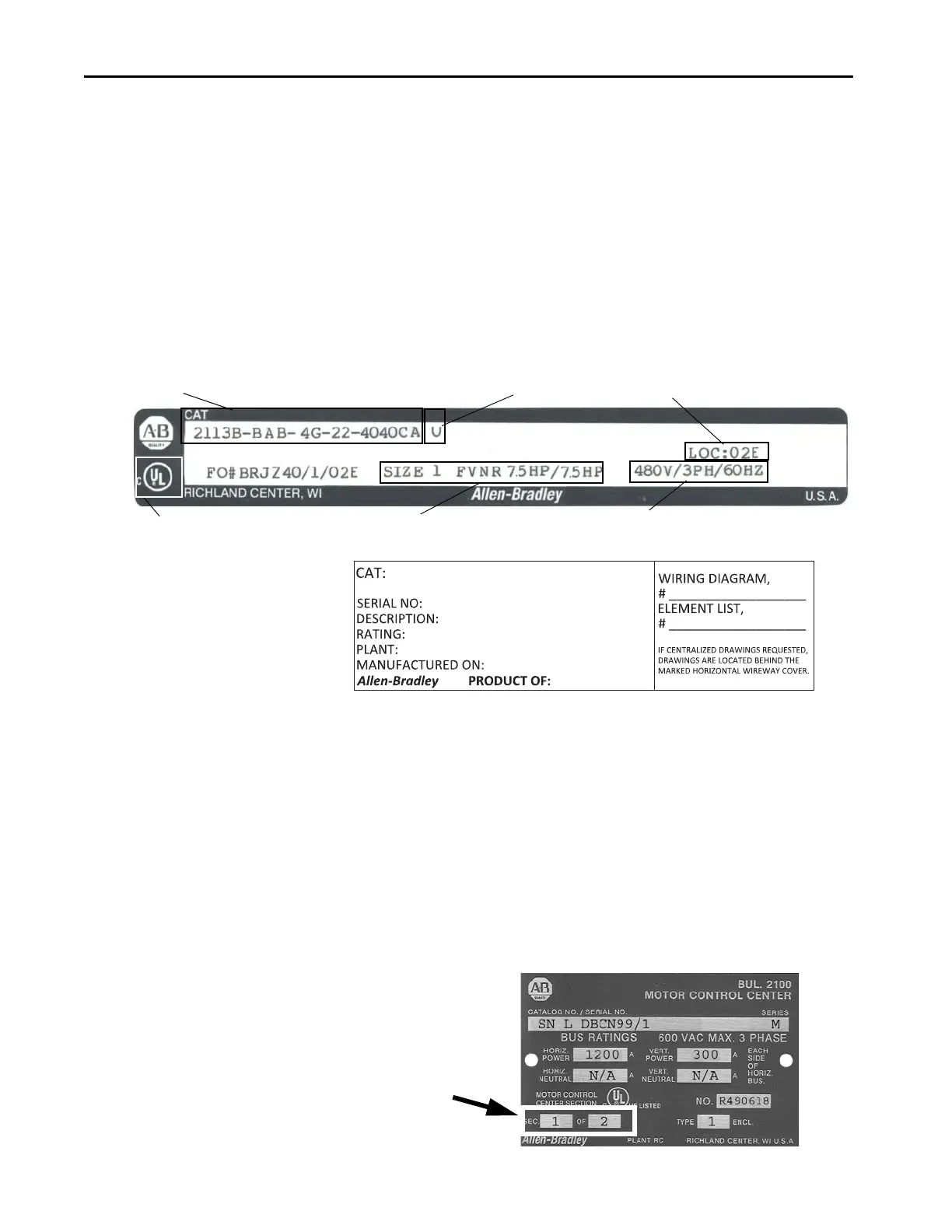

Figure 2 - Unit Label
The catalog number or serial number and series letter are required to properly
identify the equipment to sales or factory personnel.
MCC Sequence Numbering
CENTERLINE MCCs are designed so functionality is not affected by the
section installation order, for example, vertical section-numbering sequence
order.
All MCC sections carry a serial plate that identifies vertical section sequence
numbering. For example, MCC section 1 of 1, 1 of 5, and so on.
Figure 3 - Section Nameplate
cUL Certification Marking
Catalog Number / Serial Number
Unit Location
Device Type and Size
Voltage Rating
Series Letter of Unit
Identifies Vertical Section
Sequence Numbering
