Rockwell Automation Publication 2100-IN012G-EN-P - August 2016 37
Installation Procedures Chapter 2

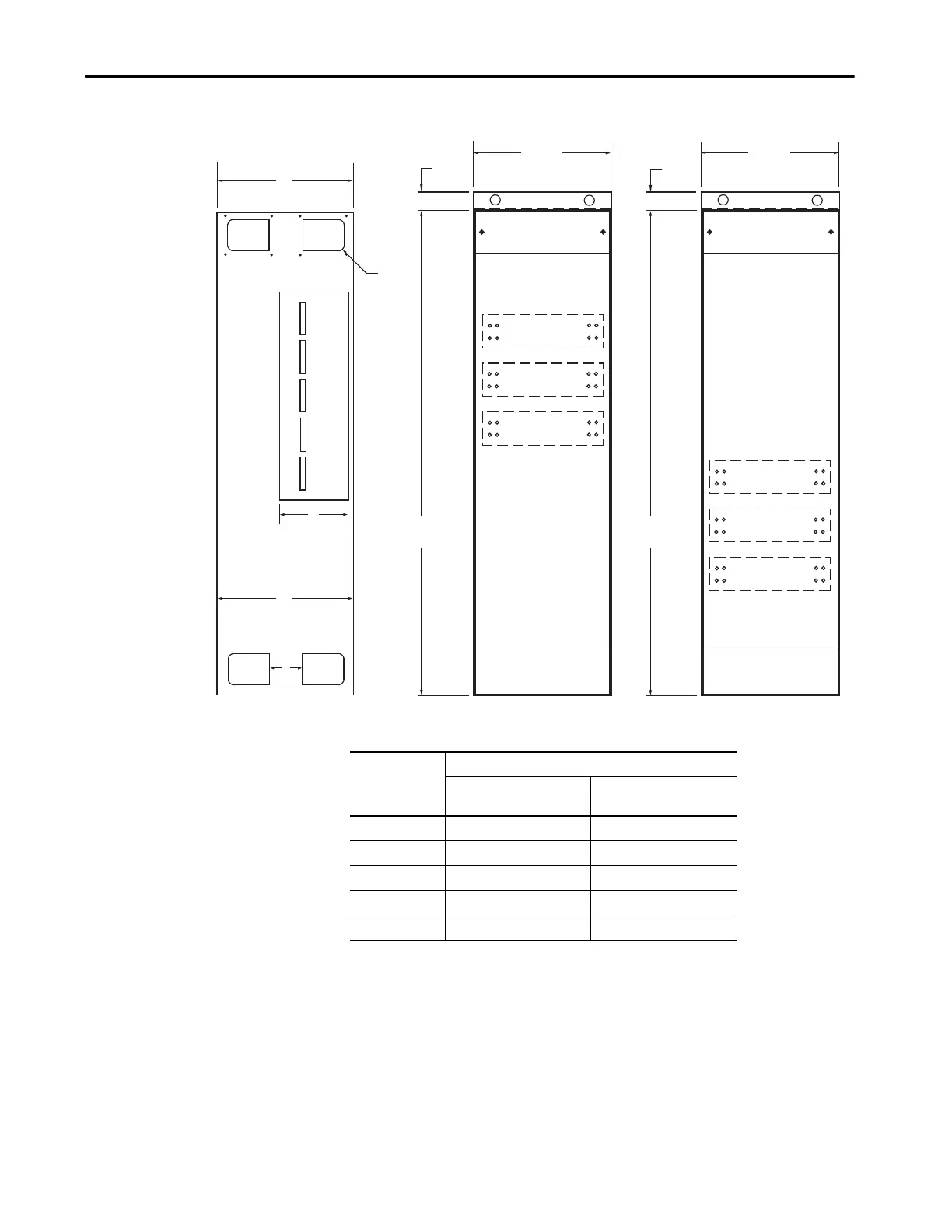

Figure 21 - Mounting Dimensions for 71 in. H (reduced height) MCC Sections
A
D
C
B
E
20 in.
(508 mm)
20 in.
(508 mm)
70.48 in.
(1790.19 mm)
70.48 in.
(1790.19 mm)
0.25 in. (6 mm)
0.25 in. (6 mm)
71 in. High Section
(1803.4 mm)
Dimension,
approx.
Section Depth
15 in. (381 mm) Deep
in. (mm)
20 in.(635 mm) Deep
in. (mm)
A 15.00 (380) 20.00 (508)
B 14.75 (374) 19.75 (500)
C 5.12 (130) 10.12 (256)
D 4 (101) 8 (203)
E 4.40 (112)
