Chapter 11 Add Distributed I/O Modules to the Project

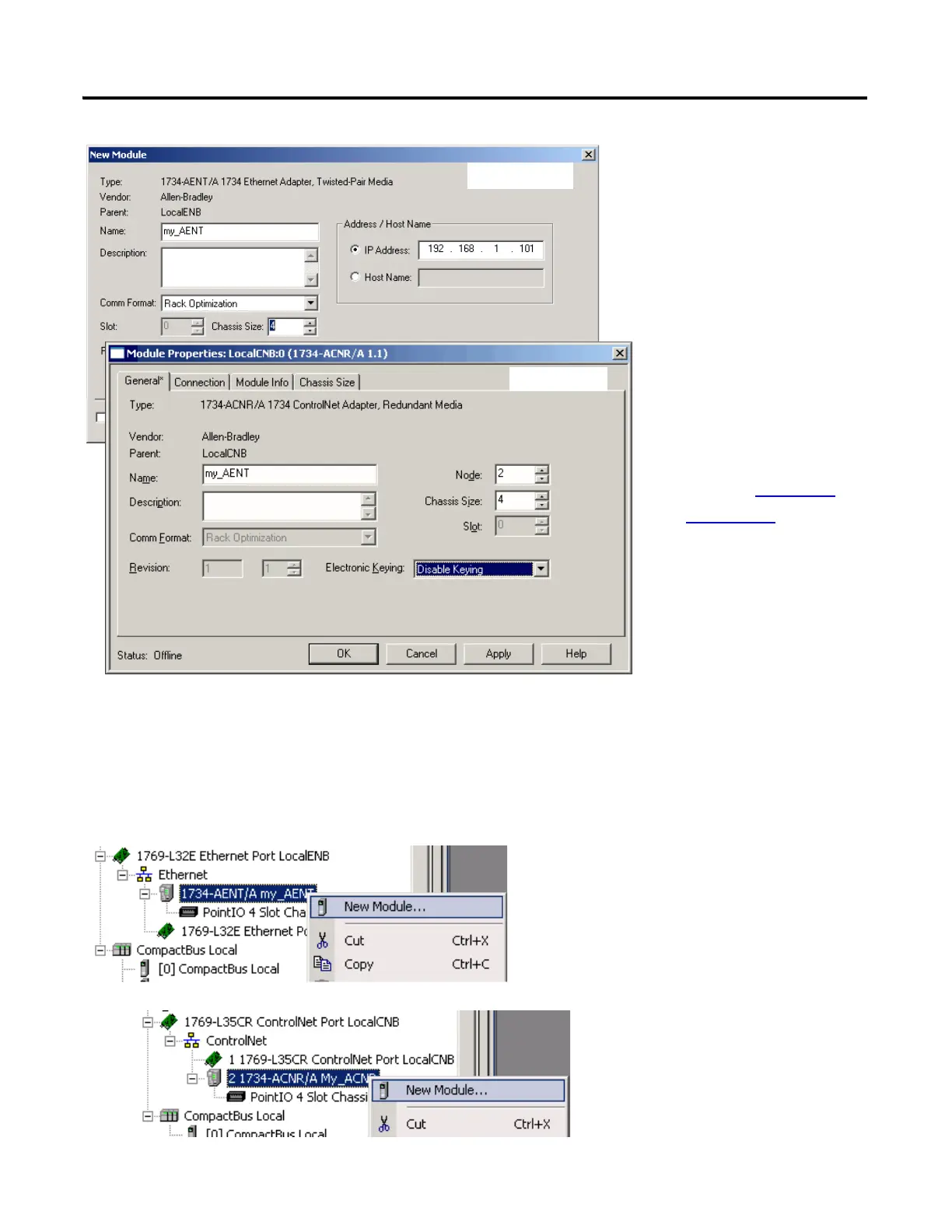

7. Choose Disable Keying.
8. Uncheck the Open Module
Properties checkbox and click
OK.
The adapter is added to the
I/O configuration.
9. Right-click the 1734 POINT
network adapter module and
select New Module.
4. Type a name for the
adapter.
5. For an EtherNet/IP
network, type the IP
address.
For a ControlNet
network, enter the
adapter’s node
number.
Use the Network
Worksheet located
inside the back cover
as a reference.
6. Select the Chassis
Size (exact number
of POINT I/O
modules + 1 for the
adapter).
EtherNet/IP
ControlNet
EtherNet/IP
ControlNet
