3. Press the NetLinx radio button from within the Platform section of the Communication
Settings dialog box (FIG. 17).
4. From the Communications Port drop-down list, choose Network. This indicates the
IP Address on the master is being reached from within a network connection.
5. Enter the IP Address information displayed on the Networking tab. Do not alter the defaulted
IP port.
6. Click the OK button to end the process of obtaining and assigning the IP Address to the
NetLinx Master.
7. Select Edit > Preferences, from the General - Communications section
8. Select the Enable Online Tree option to view the Connected devices from within the Project
Navigator window. The next step is to set the System value.
9. After the Communication Verification dialog window verifies active communication between
the PC, the Master and the TPI/3, verify the Touch Panel Interface appears in the Online tab of
the Project Navigator window (FIG. 18).
10. Right-click on the Touch Panel Interface Device value and select Properties to confirm the
on-board firmware.

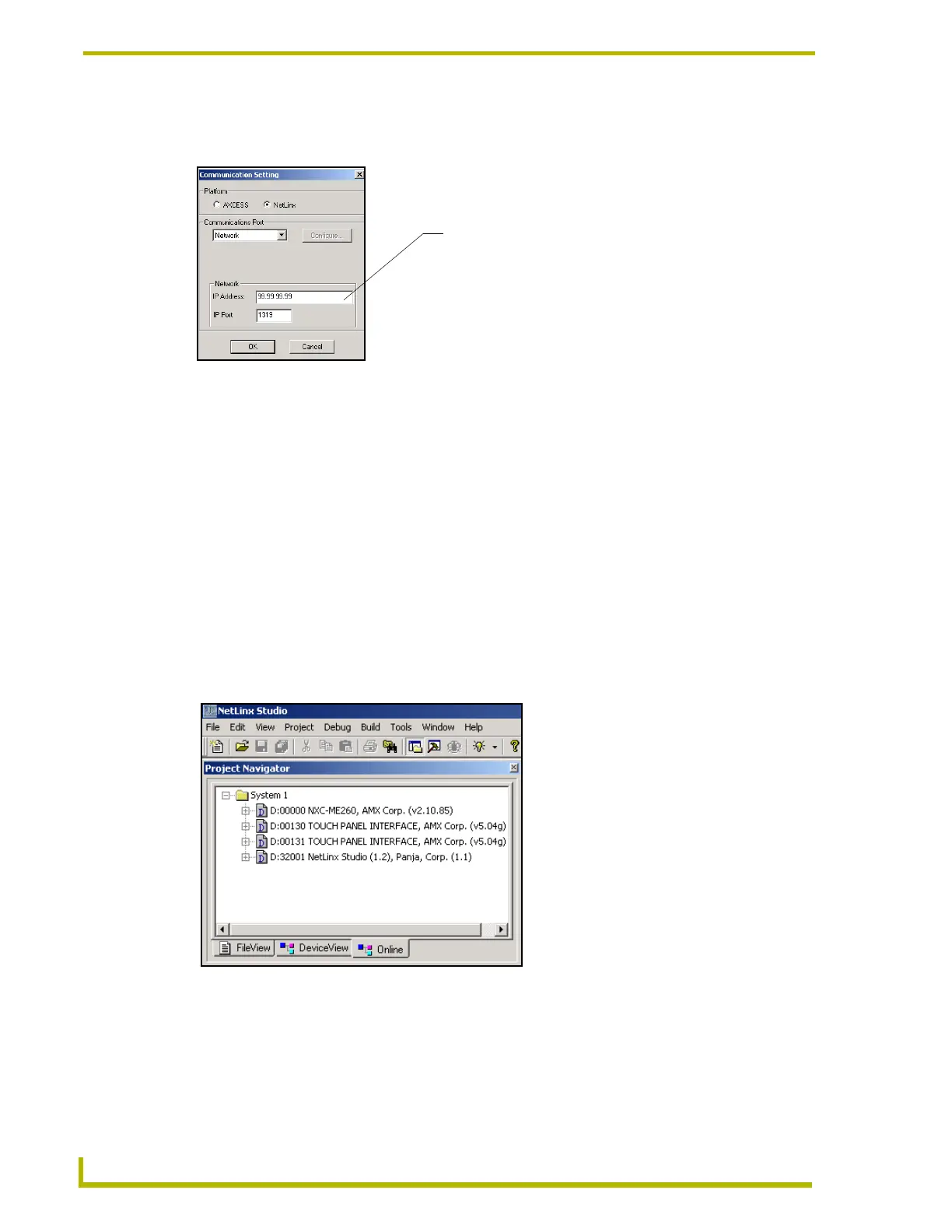

FIG. 17 Communication Setting tab
FIG. 18 Sample NetLinx Project Navigator window
Enter an IP Address
