CV10 Touch Panel Accessories
26
10" Modero Touch Panels
NXT-BP Power Pack (FG2255-10)
The NXT-BP Power Pack (FIG. 26) is a rechargeable Lithium-Ion "smart" battery used to provide power to the
NXT Modero panel through the NXA-BASE/1 Battery Base. This battery incorporates an
on-board battery life indicator. The NXT-BP battery can be charged through either the base (when connected
to the CV10 panel) or through an optional NXT-CHG Modero Power Station.
Although this product is included within the NXA-BASE/1 Kit (Fg2255-05K), extra NXT-BP Power Packs
(FG2255-10) can be purchased separately as an optional accessory.
NXA-BASE/1 Battery Base Kit (FG2255-05K)
The NXA-BASE/1 Kit contains a single NXT-BP battery and one battery base. The NXA-BASE/1 (FIG. 27) is
a Modero accessory that allows an NXT-CV10 touch panel to function off the charge from a single internally
connected NXT-BP battery. The base provides both power and battery information to the panel via the panel
interface connector. The NXT-BP battery can be charged through either the base (only when connected to the
NXT-CV10 touch panel) or through an optional NXT-CHG Modero Power Station Kit (FG2255-50K). When
used with the optional battery base, the CV10 panels will charge the battery during full operation.

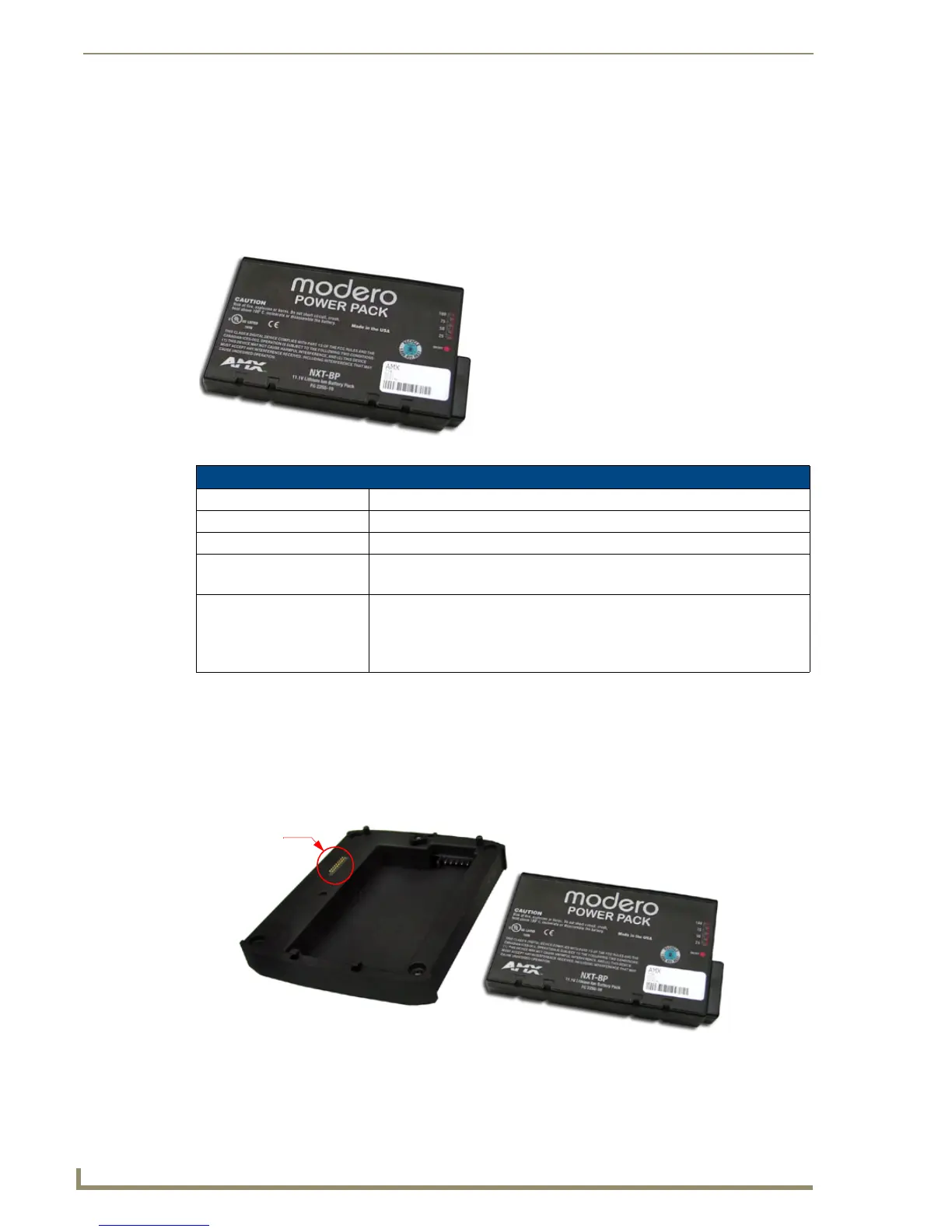

FIG. 26 NXT-BP Power Pack
NXT-BP Specifications
Dimensions (HWD): 0.69" x 3.50" x 5.81" (1.75 cm x 8.89 cm x 14.76 cm)
Power (Voltage): 11.1 Volts (nominal)
Weight: Single NXT-BP Power Pack: 1.0 lbs (0.45 kg)
Features: Battery Usage: 4 to 8 hours (time is usage dependant)
Charge Capacity: 6300mAh
Operating / Storage
Environment:
Operating Temperature: 0° C (32° F) to 40° C (104° F)
Operating Humidity: 20% - 85% RH
Storage/Discharge Temperature: -20° C (-4° F) to 60° C (140° F)
Storage Humidity: 5% - 85% RH
FIG. 27
NXA-BASE/1 Kit (consists of one BASE/1 and a single NXT-BP)
NXA-BASE/1
NXT-BP
Battery Base
Modero Power Pack
Panel Interface
connector
