ENGINE
3 - 90
En
g
ines M192M / M191M / M245M / M234M / M282M / M281M

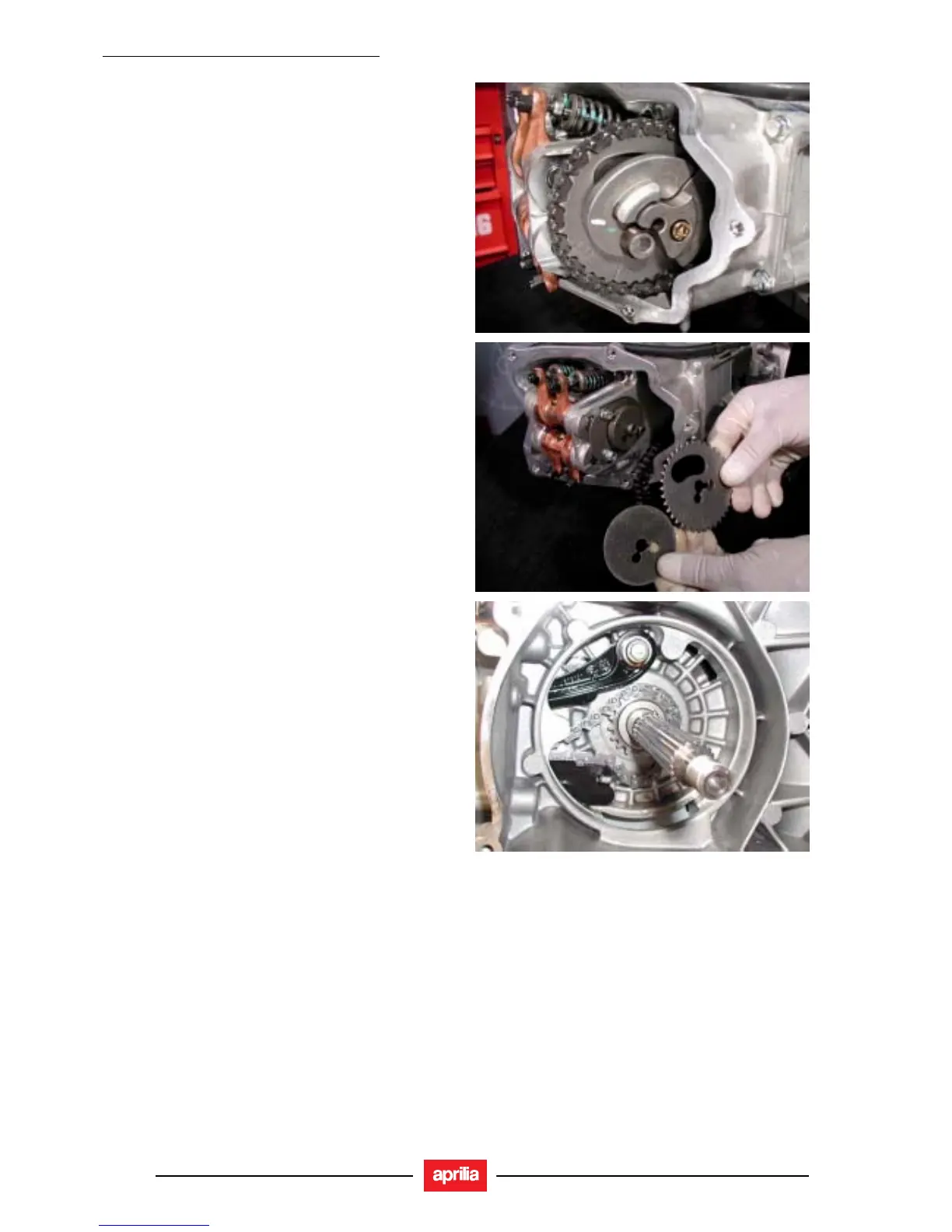

• Remove automatic valve-lifter return spring, valve-lifter
with stop washer.
• Remove inner hexagon screw and counterweight.
• Remove camshaft drive pulley and washer.
• Remove screw, spacer and tensioner sliding shoe.
• Remove driving sprocket (17) and timing chain (18).
NOTE Before disassembly, mark chain so that it can be refit-
ted in its original direction of rotation. To remove tensioner-
sliding shoe, work on the transmission side. To remove lower
chain guide-sliding shoe first disassemble the head.
