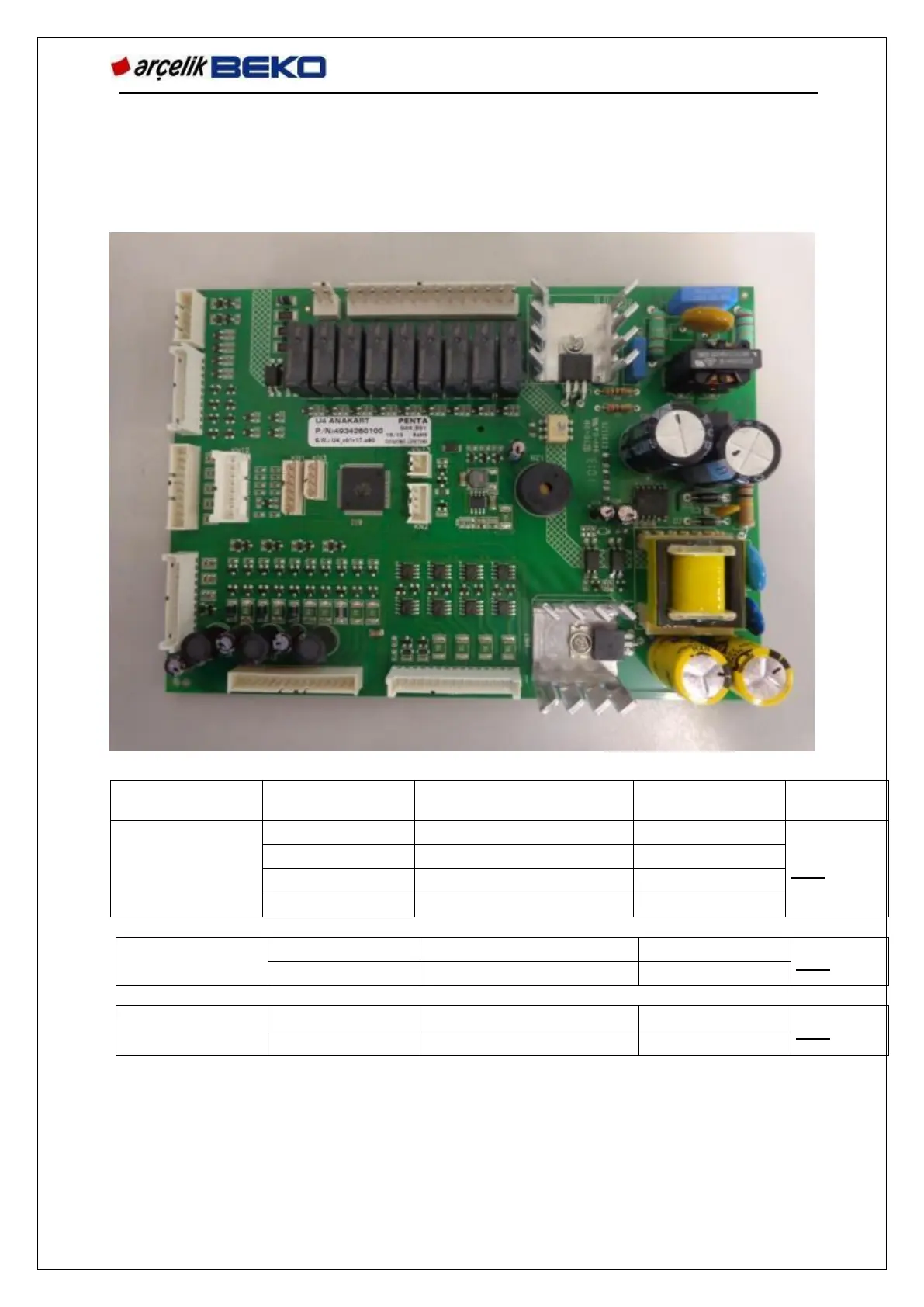

11.1.1. U4 board
Analog (LV)
INPUT
Ice Sensor
KN4-14,15
KN4
INPUT
Ice Switch
KN4-9,10
Analog (LV)
INPUT
Fridge door switch
KN9-1,2
KN9
INPUT
Freezer door switch
KN9-4,5
I/O type
I/O
I/O name
ID
Connector
name
Analog (LV)
INPUT
Fridge Air Sensor
KN6-1,2
KN6
INPUT
Fridge Eva Sensor
KN6-3,4
INPUT
Freezer Air Sensor
KN6-5,6
INPUT
Freezer Eva Sensor
KN6-7,8
