• Difference of the upper right hinge from the upper left hinge is that it does not have
display cable.
• Remove the socket connections.
• Remove 3 pcs of M 5x18 spiral screws of the upper hinge by attaching a torque bit to
the chargeable gun.
12.17. Freezer left door
Used service number: 966

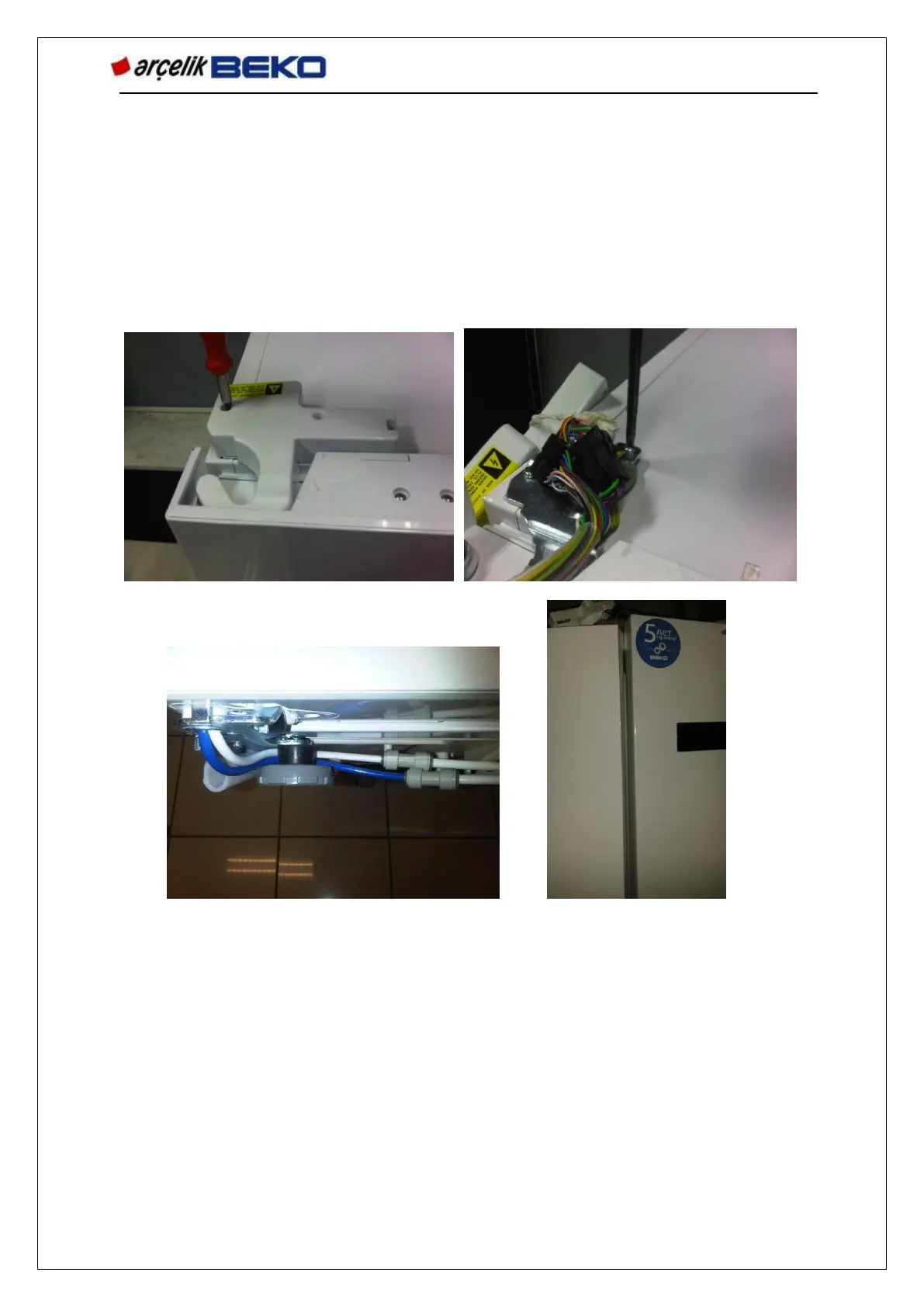

1 2
3 4
• Remove socket connections shown in Picture 2.
• Remove M 4x5.5 screw fixing the earth cable by attaching the star bit to the chargeable
gun.
• Remove the water hose connections at the bottom of cabin in Picture 3. (2 water pipes
are used in the products with icematic on freezer left door only).
• Remove 3 pcs of M 5x18 spiral screws of the upper hinge by attaching a torque bit to
the chargeable gun.
• Lift the door upwards as shown in Picture 4 to remove it from the lower hinge pin.
12.18. Fridge right door
Used service number: 967
