12.1.3. Kuppers handle group / Round profile aluminum handle group
Service numbers used:
1422 Fridge/Freezer handles
876 intermediate elements (ensuring the connection between the handle and the door)
277 intermediate element plugs
Blomberg handle group

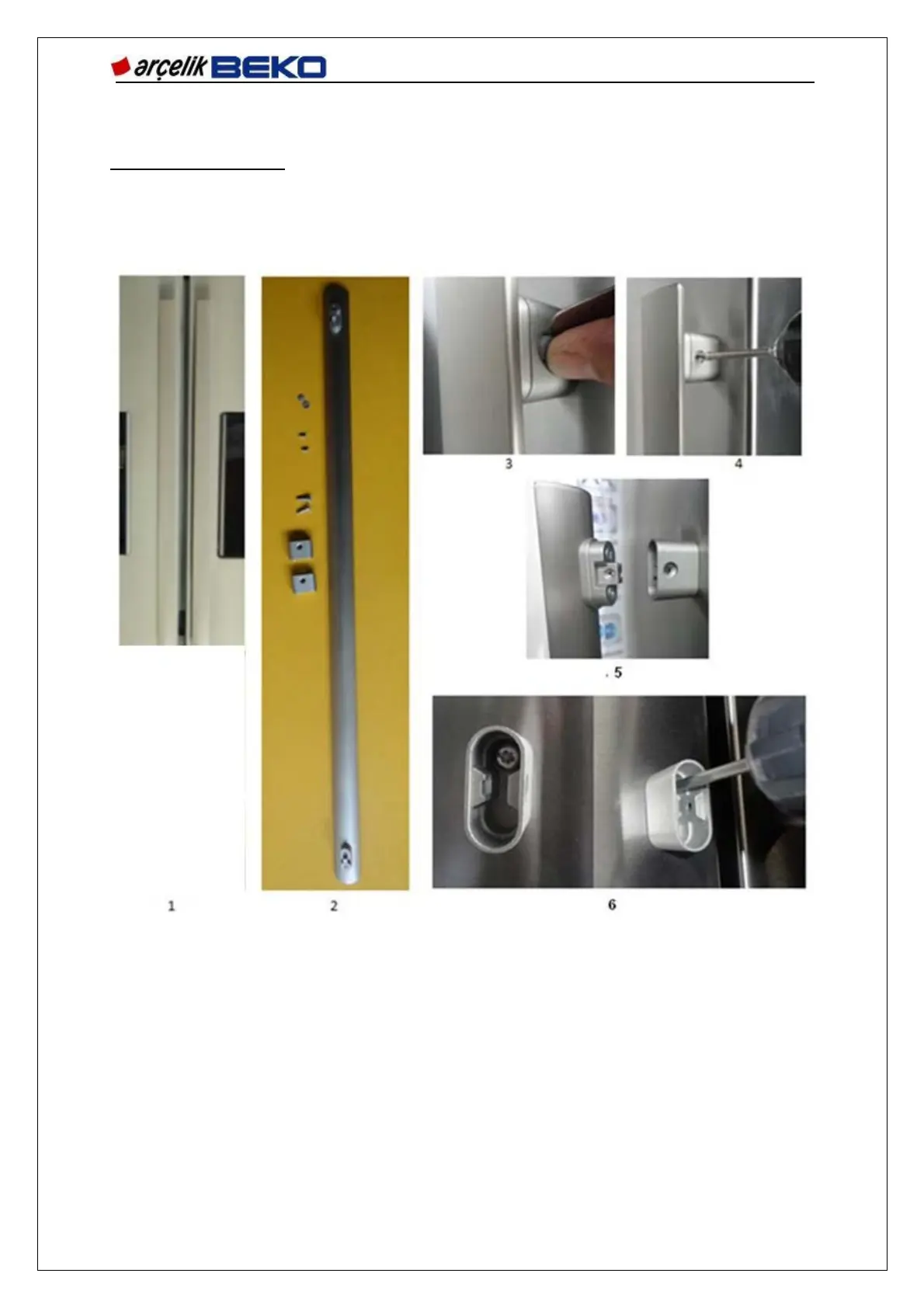

Blomberg handle group is as illustrated in Picture 1.
Remove the 4 screw plugs with a knife, etc.
Remove 4 pcs of 3.9x20 PT countersunk screws used in the fridge and freezer handles
by attaching the star bit to the chargeable gun, as shown in Picture 4.
Remove 4 pcs M4 spiral form screws used in the intermediate element by attaching the
torque bit to the chargeable gun, as shown in Picture 5.
